Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s
Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s
Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s
Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s
Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s
Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s

Power HD GTS 5 HV Low Profile Brushless Servo - 50kg - 0.08s

Brand: Power HD

Part No: HD-GTS-5

£142.37 RRP £158.19

In Stock: Usually ships same day

Collect Instore
Request Price Match Ask a Question Write a Review

The Power HD GTS-5 HV CNC Brushless Digital Servo (HD-GTS-5) delivers outstanding torque and speed in a low profile form factor. Offering up to 50.0 kg-cm torque with a 0.08 s transit time at 8.4 V, it is built around a four-pole brushless motor, dual ball bearings and 7075+steel gears for fast response and long service life. The GTS-5 supports FLYSKY i-BUS2 for servo parameter setup, data logging and warnings, and works with the high-speed modes of leading radios.

Key Features

  • HV CNC brushless digital servo with four-pole brushless motor
  • Low profile size: 41.0 × 20.0 × 29.0 mm
  • Supports FLYSKY radio i-BUS2 protocol for setup, data logging and warnings
  • Supports high-speed radio modes:
    • Noble NB4 Pro: NOR / SR / SFR
    • Futaba: NOR / SR / UR
    • SANWA: NOR / SHR / SSR / SUR / SXR
  • Dual ball bearings

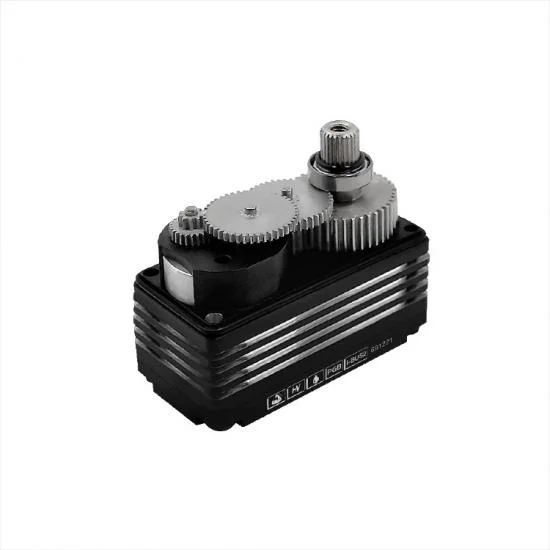

  • 7075+steel gear train
  • Compatible with Power HD program box PG-CB63

Performance Specifications

  • Torque: 36.0 kg-cm (6.0 V) / 42.0 kg-cm (7.4 V) / 50.0 kg-cm (8.4 V)
  • Speed: 0.11 s (6.0 V) / 0.09 s (7.4 V) / 0.08 s (8.4 V)
  • Operating voltage: 6.0–8.4 V DC
  • Max current: 7.5 A
  • Working frequency: 1520 / 1666 Hz
  • Operating temperature: −20 to 60 °C
  • Size: 41.0 × 20.0 × 29.0 mm
  • Weight: 63 g
  • Bearing type: Ball bearing ×2
  • Motor type: Brushless
  • Gear type: 7075+Steel

With high-voltage capability, rapid response and extensive radio mode support, the Power HD GTS-5 provides a robust, low profile solution for demanding RC applications where compact size, strength and precision are essential.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

PowerHD GTS-5 HV CNC Brushless Digital Servo 50.0KG/[email protected] *Support FLYSKY radio's i-BUS2 protocol servo parameter setup / data logging / warning / and other functions *Support the high speed mode of brands' radio Noble NB4 Pro modes: NOR / SR / SFR Futaba modes: NOR / SR / UR SANWA modes: NOR / SHR /SSR / SUR / SXR *Support the Power HD program box PG-CB63 *four-pole brushless motor high performance/ long Life-span/ heat-resistant/ faster response Torque(6.0V): 36.0 kg-cm / (499.9 oz/in) Torque(7.4V): 42.0 kg-cm / (583.3 oz/in) Torque(8.4V): 50.0 kg-cm / (694.4 oz/in) Speed: 0.11 sec (6.0V) ©¦ 0.09 sec (7.4V) Speed: 0.08 sec (8.4V) Operating Voltage: 6.0 ~ 8.4 DC Volts Weight: 63 g (2.22 oz) Bearing Type: Ball Bearing x 2 Motor Type: Brushless Motor Gear Type: 7075+Steel Operating Temperature: -20~60°C Working frequence: 1520 / 1666hz Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in) Max current: 7.5A Torque(6.0V): 36.0 kg-cm / (499.9 oz/in) Torque(7.4V): 42.0 kg-cm / (583.3 oz/in) Torque(8.4V): 50.0 kg-cm / (694.4 oz/in) Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V) Operating Voltage: 6.0 ~ 8.4 DC Volts Weight: 63 g (2.22 oz) Bearing Type: Ball Bearing x 2 Motor Type: Brushless Motor Gear Type: 7075+Steel Max current: 7.5A Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in) Torque(6.0V): 36.0 kg-cm / (499.9 oz/in) Torque(7.4V): 42.0 kg-cm / (583.3 oz/in) Torque(8.4V): 50.0 kg-cm / (694.4 oz/in) Speed: 0.11 sec (6.0V) │ 0.09 sec (7.4V) │ 0.08 sec (8.4V) Operating Voltage: 6.0 ~ 8.4 DC Volts Weight: 63 g (2.22 oz) Bearing Type: Ball Bearing x 2 Motor Type: Brushless Motor Gear Type: 7075+Steel Max current: 7.5A Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)

Key Info:
  • Brand: Power HD
  • Part No: HD-GTS-5
  • Barcode: 6929188055005
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
