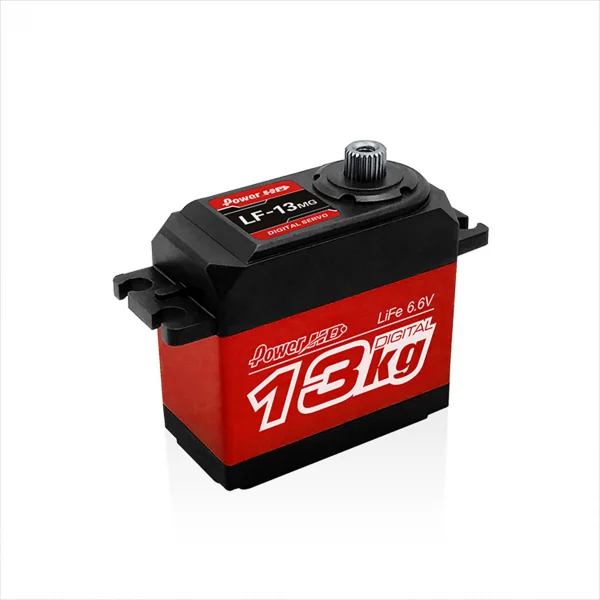

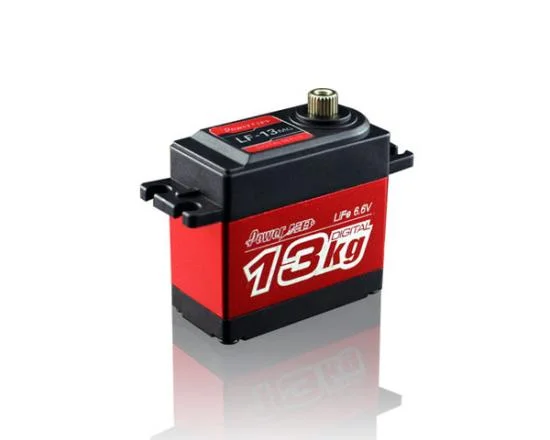

Power HD LF-13MG Digital Servo - Aluminium Case - 13.0kg - 0.12s

The Power HD LF-13MG (part no. HD-LF-13MG) is a digital metal-gear servo in a robust aluminium case, engineered for precise and consistent control. Dual ball bearings and a copper/aluminium gear train provide smooth operation and durability for demanding radio control applications.

Delivering up to 13.0 kg-cm torque at 6.6V with a rapid 0.12s transit speed, it balances power and speed while keeping weight to 60 g. A standard 40.7 x 20.5 x 39.5 mm footprint helps simplify installation.

Specifications

• Type: Digital, metal gear, aluminium case
• Bearings: Dual ball bearings
• Torque (4.8V): 10.5 kg-cm (145.8 oz-in)
• Torque (6.6V): 13.0 kg-cm (180.5 oz-in)
• Speed: 0.15s (4.8V) / 0.12s (6.6V)
• Operating voltage: 4.8–6.6V DC
• Weight: 60 g (2.12 oz)
• Motor type: DC motor
• Gear type: Copper & aluminium
• Operating temperature: -20℃ to 60℃
• Working frequency: 1520μs / 333 Hz
• Size: 40.7 x 20.5 x 39.5 mm (1.60 x 0.80 x 1.55 in)
