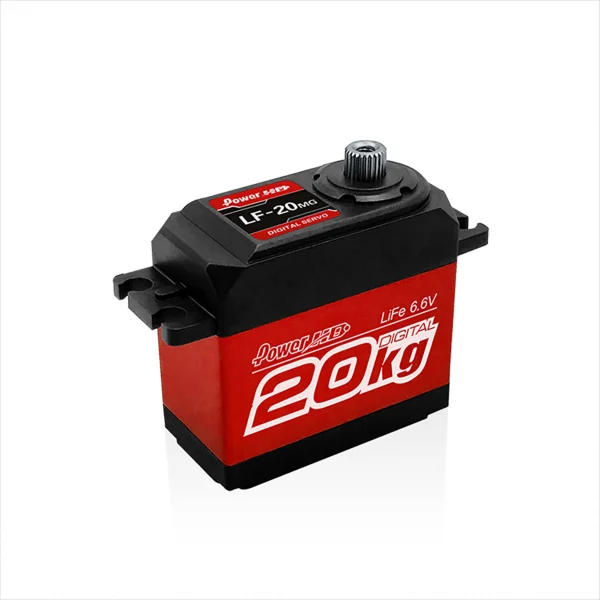

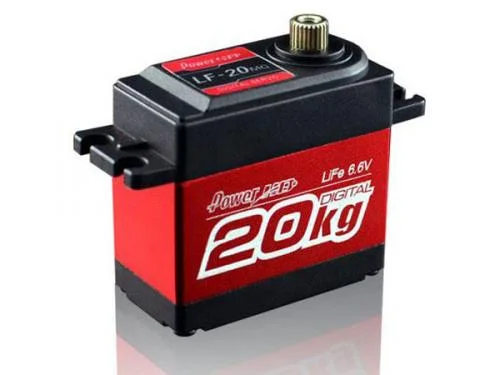

Power HD LF20 Metal Geared Servo – HD-LF-20MG
Brand: Power HD
Part No: HD-LF-20MG
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Power HD LF20 Metal Geared Servo
Description
The Power HD LF20 Metal Geared Servo (HD-LF-20MG) pairs durable copper and aluminium gears with dual ball bearings for smooth, dependable operation. Offering up to 20.0 kg-cm of torque at 6.6V and a quick 0.16 s transit time, it delivers strong performance across an operating range of 4.8–6.6 V. Its compact 40.7 x 20.5 x 39.5 mm dimensions and 60 g weight support straightforward installation in a wide variety of RC applications.
Specifications
- Torque (4.8V): 16.5 kg-cm (229.1 oz/in)
- Torque (6.6V): 20.0 kg-cm (277.7 oz/in)
- Speed: 0.18 s (4.8V) / 0.16 s (6.6V)
- Operating voltage: 4.8–6.6 V DC
- Weight: 60 g (2.12 oz)
- Bearing type: Ball bearing x 2
- Motor type: DC motor
- Gear material: Copper & aluminium
- Operating temperature: -10°C to 60°C
- Working frequency: 1520 μs / 333 Hz
- Size: 40.7 x 20.5 x 39.5 mm (1.60 x 0.80 x 1.55 in)
Secured by Stripe
Power HD LF20 Metal Geared Servo Manuals & Guides
How-To Guides & Articles
Specifications
- Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
- Torque(6.6V): 20.0 kg-cm (277.7 oz/in)
- Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
- Operating Voltage：4.8 ~ 6.6 DC Volts
- Weight: 60 g (2.12 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Aluminum
- Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)
- Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
- Torque(6.6V): 20.0 kg-cm (277.7 oz/in)
- Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
- Operating Voltage：4.8 ~ 6.6 DC Volts
- Weight: 60 g (2.12 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Aluminum
- Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)
Key Info:
- Brand: Power HD
- Part No: HD-LF-20MG
- Barcode: 6939670200387
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes these are Futaba 25T splines
Yes, that should work with that setup no problem.
Yes they would be a good upgrade to the originals.
Yes that will fit a carnage.
Yes this will fit for you.
No, If you wanted the waterproof one you would need HD-LW-20MG
Yes this will fit that car for you.
Yes, these are standard size so will fit most models
Yes that should fit
Yes that would fit
For more in depth queries, please contact us.
