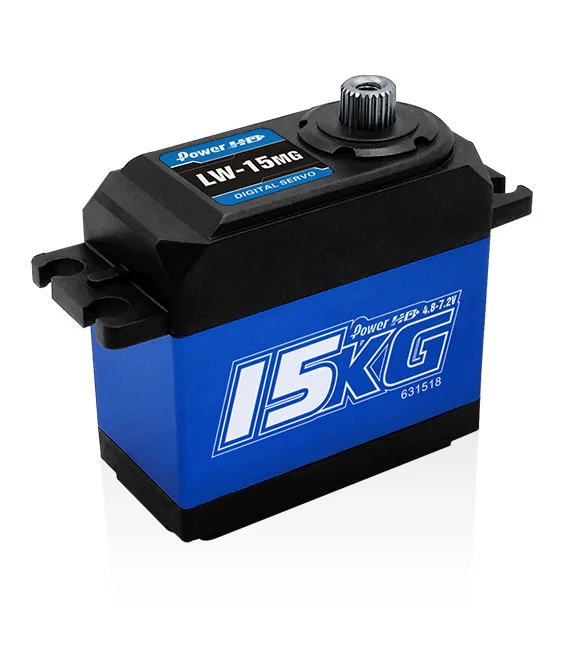

Power HD LW-15MG Digital Waterproof Servo - 20.0kg - 0.16s

The Power HD LW-15MG is an HV-capable, digital, waterproof servo built for reliable control and smooth operation. Delivering up to 20.0 kg-cm torque at 6.6V with a quick 0.16s transit time, it pairs a copper and aluminium gear train with dual ball bearings for durability and precision in a compact 40.7 x 20.5 x 39.5 mm form factor.

Key Features

• HV, digital, waterproof construction

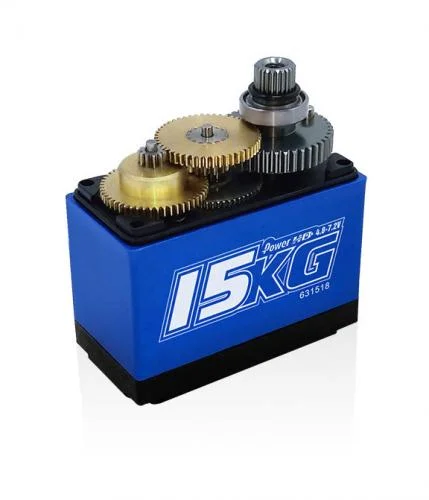

• Metal gear train (copper & aluminium)
• Dual ball bearings for smooth output
• DC motor drive
• Working frequency: 1520μs / 333 Hz

Specifications

• Torque @ 4.8V: 16.5 kg-cm (229.1 oz/in)
• Torque @ 6.6V: 20.0 kg-cm (277.7 oz/in)
• Speed: 0.18 s (4.8V) / 0.16 s (6.6V)
• Operating voltage: 4.8–6.6 V DC
• Operating temperature: -20°C to 60°C
• Size: 40.7 x 20.5 x 39.5 mm (1.60 x 0.80 x 1.55 in)
• Weight: 60 g (2.12 oz)
• Bearing type: Ball Bearing x 2
• Gear type: Copper & Aluminum
• Motor type: DC Motor
