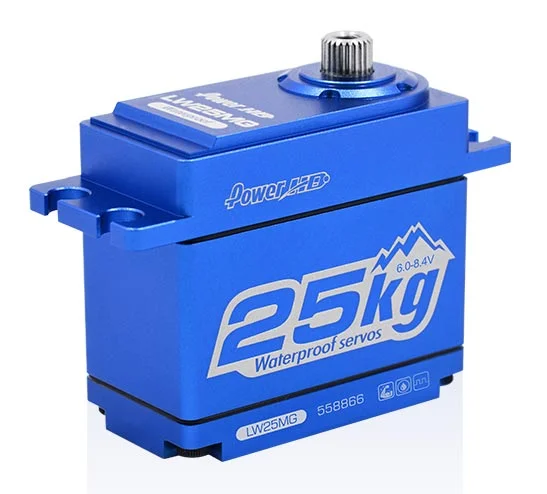

Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s — image 1 of 2

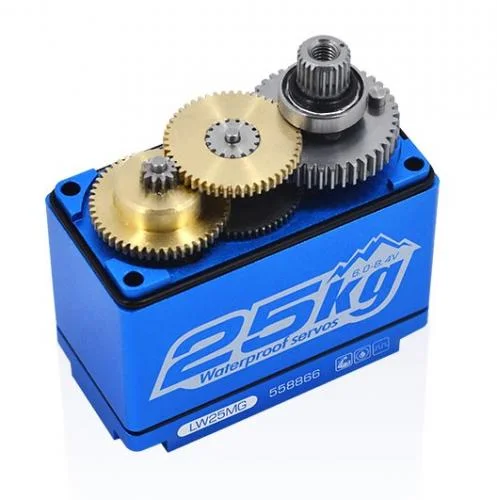

Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s — image 2 of 2
Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s
Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s

Power HD LW-25MG Waterproof HV Servo 25kg 0.14s

Brand: Power HD

Part No: HD-LW-25MG

€64.03 RRP €71.14

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Frequently Bought With

Other items customers often buy with the Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s

Hobbywing Quicrun Crawler Fusion Pro 2300Kv Sensored Brushless 2-in-1 ESC System Hobbywing Quicrun Crawler Fusion Pro 2300Kv Sensored Brushless 2-in-1 ESC System
€158.23
Power HD TR-4 Waterproof Metal Gear Servo (Upgrade for Traxxas TRX-4 and TRX-4m) - 2.6KG 0.10s Power HD TR-4 Waterproof Metal Gear Servo (Upgrade for Traxxas TRX-4 and TRX-4m) - 2.6KG 0.10s
€25.61
Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm Voltz LiPo Charge Sack Bag - Medium 22cm x 18cm
€8.96

Description

The Power HD LW-25MG is a waterproof, high-voltage standard-size servo designed for dependable performance in demanding RC applications. Delivering up to 25.0 kg-cm of torque at 7.4V with a quick 0.14 s transit speed, it pairs dual ball bearings with copper/aluminium gearing and a robust DC motor for smooth, durable operation at just 72 g. Also referenced as Power HD part HD-LW-25MG.

Operating from 6.0 to 8.4 V, the LW-25MG offers versatile power options. Its compact 40.7 x 20.5 x 38.6 mm case helps with straightforward installation, while a working frequency of 1520 μs / 333 Hz and an operating temperature range of -10°C to 60°C round out the key specifications.

Key Specifications

  • Torque: 23.0 kg-cm (6.0V); 25.0 kg-cm (7.4V)
  • Speed: 0.16 s (6.0V); 0.14 s (7.4V)
  • Operating Voltage: 6.0–8.4 V DC
  • Weight: 72 g
  • Bearing Type: Dual ball bearings
  • Motor Type: DC motor
  • Gear Type: Copper & aluminium
  • Case Size: 40.7 x 20.5 x 38.6 mm
  • Working Frequency: 1520 μs / 333 Hz
  • Operating Temperature: -10°C to 60°C
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD LW-25MG Waterproof HV Servo - 25KG - 0.14s Manuals & Guides

Specifications

Torque(6.0V): 23.0 kg-cm (319.4 oz/in) Torque(7.4V): 25.0 kg-cm (347.2 oz/in) Speed: 0.16 sec (6.0V) │ 0.14 sec (7.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 72 g (2.54 oz) Bearing Type：Ball Bearing x 2 Motor Type：DC Motor Gear Type：Copper & Aluminum Operating Temperature: -10℃~60℃ Working frequency：1520μs / 333hz Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) Torque(6.0V): 23.0 kg-cm (319.4 oz/in) Torque(7.4V): 25.0 kg-cm (347.2 oz/in) Speed: 0.16 sec (6.0V) │ 0.14 sec (7.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 72 g (2.54 oz) Bearing Type：Ball Bearing x 2 Motor Type：DC Motor Gear Type：Copper & Aluminum Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) Torque(6.0V): 23.0 kg-cm (319.4 oz/in) Torque(7.4V): 25.0 kg-cm (347.2 oz/in) Speed: 0.16 sec (6.0V) │ 0.14 sec (7.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 72 g (2.54 oz) Bearing Type：Ball Bearing x 2 Motor Type：DC Motor Gear Type：Copper & Aluminum Size：40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)

Key Info:
  • Brand: Power HD
  • Part No: HD-LW-25MG
  • Barcode: 6939680252505
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
can you confirm that this is a digital servo and will work with the AVC on this receiver. Spektrum SR6100AT 6 Channel AVC/Telemetry Surface Receiver PART NUMBER: SPMSR6100AT
Andyb / 19th April 2023

Yes these are digital and will work with the AVC system

Si @ Wheelspin Models
Will this fit the traxxas revo 2.0 and would 2 or a single be recommend.
Shane / 18th February 2023

Yes this will fit that car, we would still advise using 2 of these

Si @ Wheelspin Models
Would this be a decent upgrade to the stock one in a Maverick Quantum Flux mt
James / 9th March 2021

Yes that would work nicely in there

Ben @ Wheelspin Models
Will this be compatible with an Axial Gladiator using Axial servo horn AXI231013
James / 20th February 2021

Yes that should fit

Ben @ Wheelspin Models
Does this aervo come with an aluminium Servo horn?
Abdulla / 2nd November 2020

No they don't but they take standard Futaba 25T horns

Ben @ Wheelspin Models
