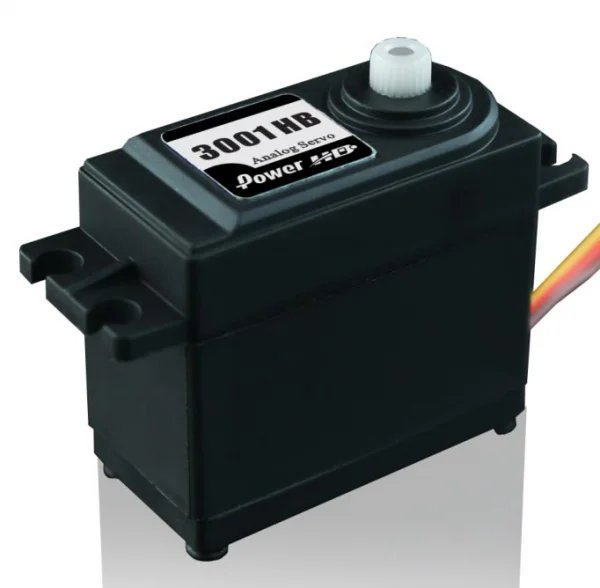

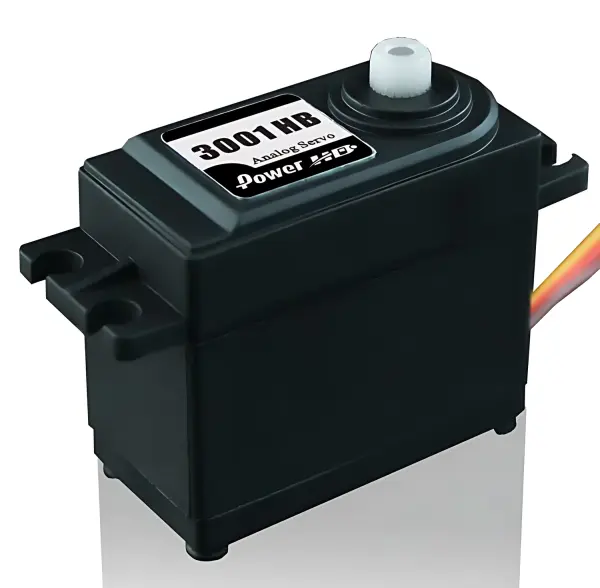

Power HD HD-3001HB Servo 4.4kg 0.12s Plastic Gear
Brand: Power HD
Part No: HD-3001HB
$14.63
RRP $15.40
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description
The Power HD HD-3001HB (part number HD-3001HB) is a standard-size hobby servo offering up to 4.4 kg-cm of torque at 6.0V with a swift 0.12 s transit speed. It features twin ball bearings for smooth output support and plastic gears, running reliably on 4.8–6.0 V DC. With a 40.7 x 20.5 x 39.5 mm case and a weight of 43 g, it provides solid performance in a compact package.
Key Specifications
- Torque (4.8V): 3.5 kg-cm (48.6 oz/in)
- Torque (6.0V): 4.4 kg-cm (61.1 oz/in)
- Speed: 0.14 s (4.8V) / 0.12 s (6.0V)
- Operating Voltage: 4.8–6.0 V DC
- Bearing Type: Ball bearing x 2
- Motor Type: DC motor
- Gear Type: Plastic
- Operating Temperature: -20 to 60°C
- Working Frequency: 1520µs / 50 Hz
- Weight: 43.0 g (1.52 oz)
- Size: 40.7 x 20.5 x 39.5 mm (1.60 x 0.81 x 1.56 in)
Secure Payments
Secured by Stripe
Power HD Servo Hd3001Hb (4.4Kg/0.12Sec) Manuals & Guides
How-To Guides & Articles
Specifications
Torque(4.8V): 3.5 kg-cm (48.6 oz/in)
Torque(6.0V): 4.4 kg-cm (61.1 oz/in)
Speed: 0.14 sec (4.8V) ¦ 0.12 sec (6.0V)
Operating Voltage: 4.8 ~ 6.0 DC Volts
Weight: 43.0 g (1.52 oz)
Bearing Type: Ball Bearing x 2
Motor Type: DC Motor
Gear Type: Plastic
Operating Temperature: -20~60°C
Working frequency: 1520µs / 50hz
Size: 40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)
Key Info:
Key Info:
- Brand: Power HD
- Part No: HD-3001HB
- Barcode: 6939570200982
