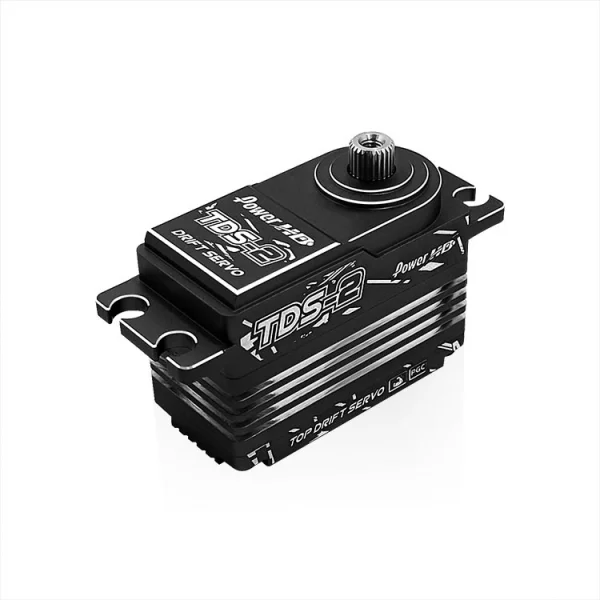

Power HD TDS-2 HV Low Profile Drift Servo - Black
Brand: Power HD
Part No: HD-TDS-2
In Stock: Usually ships same day
Finance options available at checkout.
Description
The Power HD TDS-2 Low Profile HV Drift Servo (Black) is engineered for precision and control in 1/10 RC drifting. An enhanced anti-shake function keeps steering rock-steady through aggressive transitions, while a coreless motor and titanium/steel gears deliver smooth, reliable response. Operating across 6.0–8.4V, the TDS-2 combines high torque with rapid transit speeds in a compact, low-profile form factor. This HD-TDS-2 variant is the Black colourway; the TDS-2 platform is also offered in red and purple, and all variants feature a standard wire output.
Key Features
- Enhanced anti-shake stability for consistent control during drifts
- Low-profile case (41.0 x 20.0 x 29.0 mm) for tight installations
- High-voltage operation: 6.0–8.4V

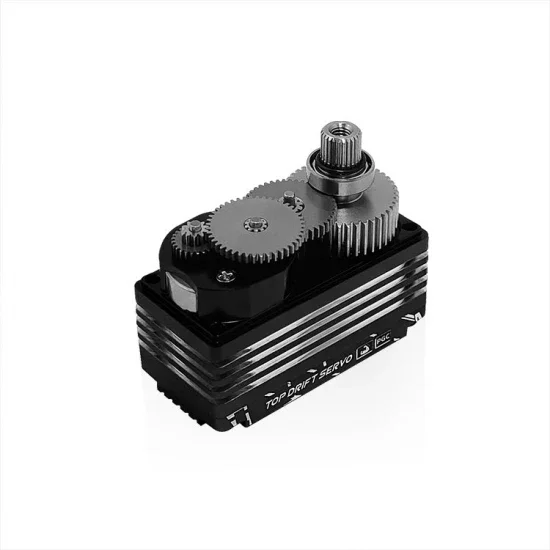

- Titanium & steel gear train with dual ball bearings
- Smooth, responsive coreless motor
- Working frequency: 1520μs / 333Hz
- Operating temperature: −20°C to 60°C
- Weight: 61 g
Specifications
- Torque: 18.0 kg-cm (6.0V) | 22.0 kg-cm (7.4V) | 25.0 kg-cm (8.4V)
- Speed: 0.13 s (6.0V) | 0.10 s (7.4V) | 0.09 s (8.4V)
- Motor type: Coreless
- Bearing type: Ball bearing x 2
- Gear type: Titanium & steel
- Size: 41.0 x 20.0 x 29.0 mm
- Part number: HD-TDS-2
Suggested compatibility: 1/10 RC drift cars that accept low-profile servos.
Secured by Stripe
Power HD TDS-2 Low Profile HV Drift Servo - 25kg 0.09s - Black Manuals & Guides
How-To Guides & Articles
Specifications
Introducing the Power HD TDS-2 Drift Servo - Unleash Precision and Control
Get ready to elevate your 1/10 drift experience with Power HD's latest innovations: the TDS-2 Drift Servo. These new components are designed for serious drifters who demand precision, reliability, and adaptability on the track.
TDS-2 Drift Servo, Control Without Compromise
- Enhanced Anti-Shake Function: Maintain flawless stability even in the most aggressive drifts.
- Greater Torque & Slim Profile: Engineered for power and sleek fitment, ensuring peak performance without sacrificing space.
- Available in Black, Red, and Purple: Choose the style that matches your build. All variants feature a standard wire output for easy setup.
Power HD TDS-2 Drift Low Profile Servo Features:
- Torque(6.0V): 18.0 kg-cm ( 250.0 oz/in)
- Torque(7.4V): 22.0 kg-cm ( 305.5 oz/in)
- Torque(8.4V): 25.0 kg-cm ( 347.2 oz/in)
- Speed: 0.13 sec (6.0V) │ 0.10 sec (7.4V)
- Speed: 0.09 sec (8.4V)
- Operating Voltage：6.0 ~ 8.4 DC Volts
- Weight: 61 g (2.15 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：Coreless Motor
- Gear Type：Titanium & Steel
- Operating Temperature：-20℃~60℃
- Working frequency：1520μs / 333hz
- Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
Key Info:
- Brand: Power HD
- Part No: HD-TDS-2
- Barcode: 6929188022014
