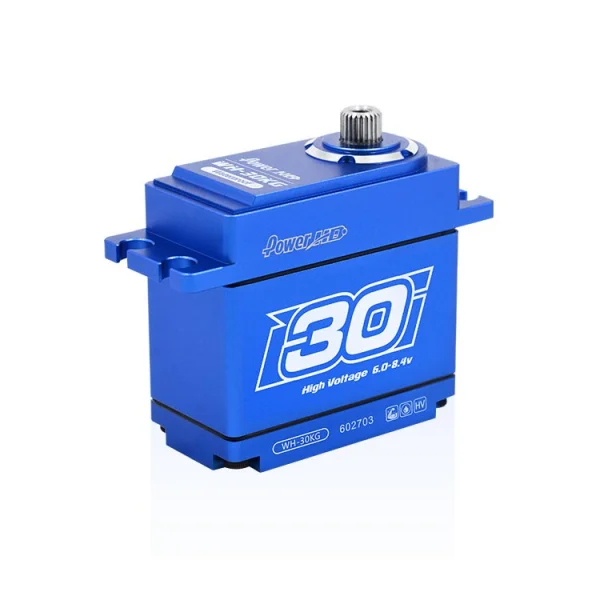

Power HD WH30KG HV Waterproof Servo - 30kg 0.11s — image 1 of 2

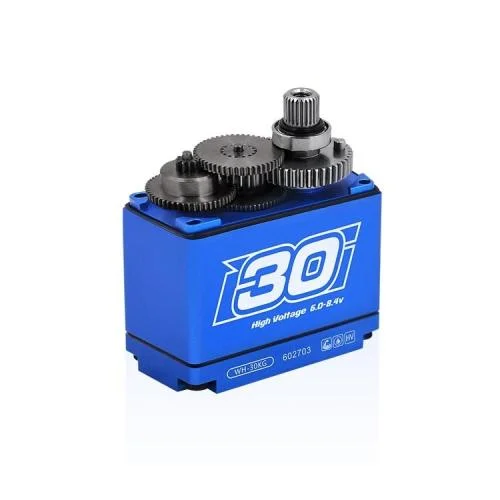

Power HD WH30KG HV Waterproof Servo - 30kg 0.11s — image 2 of 2
Power HD WH30KG HV Waterproof Servo - 30kg 0.11s
Power HD WH30KG HV Waterproof Servo - 30kg 0.11s

Power HD WH30KG 30kg HV Waterproof Servo 0.11s

Brand: Power HD

Part No: HD-WH-30KG

£68.39 RRP £75.99

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Frequently Bought With

Other items customers often buy with the Power HD WH30KG HV Waterproof Servo - 30kg 0.11s

HobbyWing EZRUN MAX8 G2S ESC Combo With 4278Sd-2250Kv G2R Motor HobbyWing EZRUN MAX8 G2S ESC Combo With 4278Sd-2250Kv G2R Motor
£188.99

Description

The Power HD WH30KG HV Waterproof Servo delivers high torque and fast response in a robust, standard-size case. Rated up to 30.0 kg-cm at 8.4V with a transit speed of 0.11s, it pairs a coreless motor with steel and aluminium gears and dual ball bearings for smooth, durable performance. The waterproof design and high-voltage capability (6.0–8.4V DC) make it a strong choice for demanding RC control tasks. Part number: HD-WH-30KG.

With a working frequency of 1520 μs / 333 Hz and an operating temperature range of -10°C to 60°C, the WH30KG is engineered for consistent, precise operation. Its compact 40.7 x 20.5 x 38.5 mm footprint and 82 g weight suit a wide range of standard servo bays.

Specifications

  • Torque: 22.0 kg-cm (6.0V), 26.0 kg-cm (7.4V), 30.0 kg-cm (8.4V)
  • Speed: 0.16s (6.0V), 0.13s (7.4V), 0.11s (8.4V)
  • Operating voltage: 6.0–8.4V DC
  • Motor type: Coreless
  • Gear train: Steel & aluminium
  • Bearings: Ball bearing x2
  • Working frequency: 1520 μs / 333 Hz
  • Operating temperature: -10°C to 60°C
  • Size: 40.7 x 20.5 x 38.5 mm
  • Weight: 82 g
  • Compatible with program box only
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD WH30KG HV Waterproof Servo - 30kg 0.11s Manuals & Guides

Specifications

Torque(6.0V): 22.0 kg-cm ( 305.5 oz/in) Torque(7.4V): 26.0 kg-cm ( 361.1 oz/in) Torque(8.4V): 30.0 kg-cm ( 416.6 oz/in) Speed: 0.16 sec (6.0V)│0.13 sec (7.4V)│ Speed: 0.11 sec (8.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Operating Temperature：-10℃~60℃ Working frequency：1520μs / 333hz Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in) Compatible with program box only Torque(6.0V): 22.0 kg-cm ( 305.5 oz/in) Torque(7.4V): 26.0 kg-cm ( 361.1 oz/in) Torque(8.4V): 30.0 kg-cm ( 416.6 oz/in) Speed: 0.16 sec (6.0V)│0.13 sec (7.4V)│0.11 sec (8.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in) Torque(6.0V): 22.0 kg-cm ( 305.5 oz/in) Torque(7.4V): 26.0 kg-cm ( 361.1 oz/in) Torque(8.4V): 30.0 kg-cm ( 416.6 oz/in) Speed: 0.16 sec (6.0V)│0.13 sec (7.4V)│0.11 sec (8.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in)

Key Info:
  • Brand: Power HD
  • Part No: HD-WH-30KG
  • Barcode: 6929130030302
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
