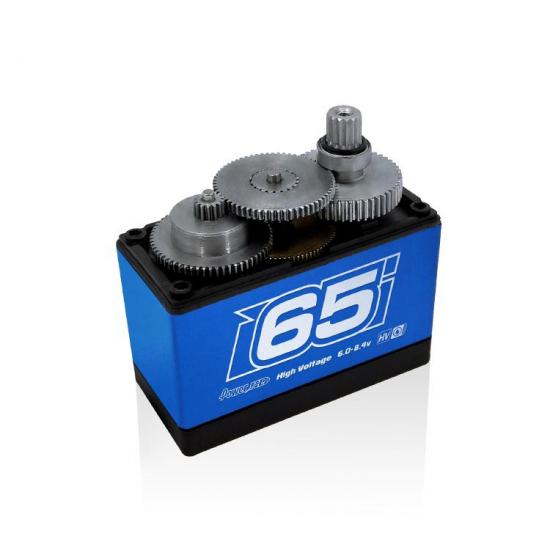

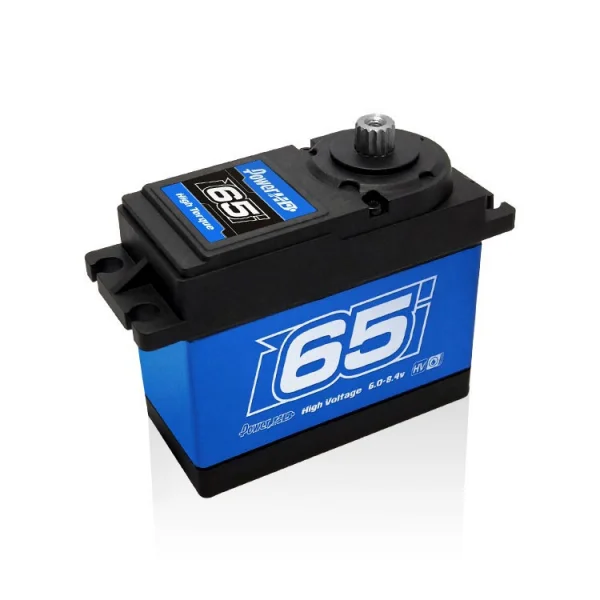

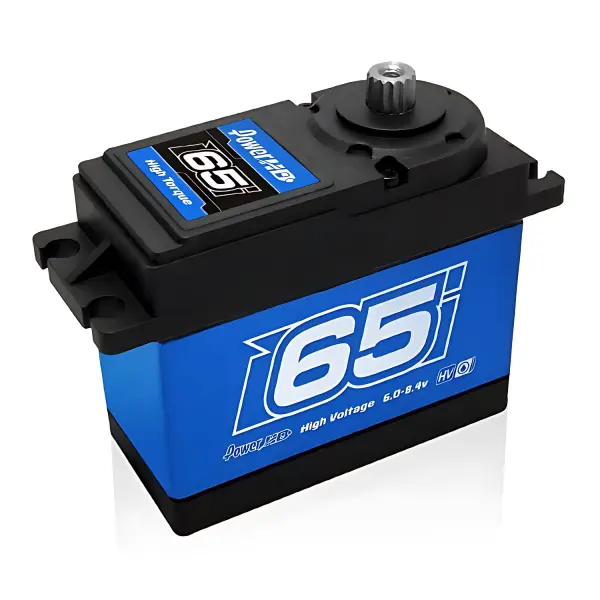

Power HD WH-65KG Servo - 65Kg - 0.15s
Brand: Power HD
Part No: HD-WH-65KG
In Stock: Usually ships same day
The Power HD WH-65KG (part HD-WH-65KG) is a high-torque HV servo designed for demanding RC applications. Delivering up to 65.0 kg-cm at 8.4V with a swift 0.15s transit speed, it combines copper & steel gears with dual ball bearings for smooth, reliable performance. Operating from 6.0–8.4V DC, this unit balances sheer holding power with dependable control and durability.
Key Specifications
- Torque (6.0V): 55.0 kg-cm (763.8 oz-in)
- Torque (7.4V): 60.0 kg-cm (833.2 oz-in)
- Torque (8.4V): 65.0 kg-cm (902.7 oz-in)
- Speed: 0.19 s (6.0V) | 0.17 s (7.4V) | 0.15 s (8.4V)
- Operating voltage: 6.0–8.4 V DC
- Weight: 200 g (7.05 oz)
- Bearing type: Ball bearing x 2
- Motor type: DC motor
- Gear material: Copper & steel
- Operating temperature: -10°C to 60°C
- Working frequency: 1520 μs / 333 Hz
- Size: 65.8 x 30.0 x 55.6 mm (2.59 x 1.18 x 2.19 in)
- Horn gear spline: 15T (optional aluminium horn HD-AP2530 is suitable)
Secured by Stripe
- Torque(6.0V): 55.0 kg-cm / ( 763.8 oz/in)
- Torque(7.4V): 60.0 kg-cm / ( 833.2 oz/in)
- Torque(8.4V): 65.0 kg-cm / ( 902.7 oz/in)
- Speed: 0.19 sec (6.0V)│0.17sec (7.4V)│0.15 sec (8.4V)
- Operating Voltage：6.0 ~ 8.4 DC Volts
- Weight: 200.0 g (7.05 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Steel
- Size：65.8x30.0x55.6mm (2.59x1.18x2.19 in)
- Horn gear spline: 15T (optional alu horn HD-AP2530 is suitable)
- Torque(6.0V): 55.0 kg-cm / ( 763.8 oz/in)
- Torque(7.4V): 60.0 kg-cm / ( 833.2 oz/in)
- Torque(8.4V): 65.0 kg-cm / ( 902.7 oz/in)
- Speed: 0.19 sec (6.0V)│0.17sec (7.4V)│0.15 sec (8.4V)
- Operating Voltage：6.0 ~ 8.4 DC Volts
- Weight: 200.0 g (7.05 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：DC Motor
- Gear Type：Copper & Steel
- Size：65.8x30.0x55.6mm (2.59x1.18x2.19 in)
- Horn gear spline: 15T (optional alu horn HD-AP2530 is suitable)
Key Info:
- Brand: Power HD
- Part No: HD-WH-65KG
- Barcode: 6929130065656
- Max Voltage: 7.4v
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No only the traxxas servos will fit.
Just checked with the manufacturer - yes they are.
This should be a good servo and the kit comes with the different teeth options for the standard servo saver.
This is a 15t tooth spline, as it's a large scale servo these do you a large spline.
Looking at the dimensions, yes that looks like it should work
No, due to the different mounting system in the Xmaxx this would not fit.
Yes I have seen customers use this in Kraton 8S
