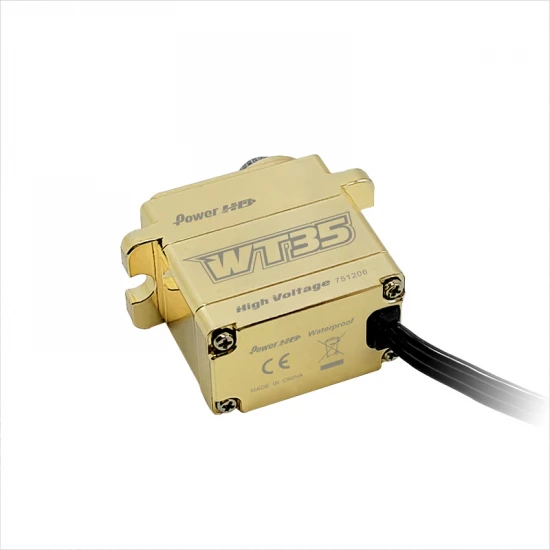

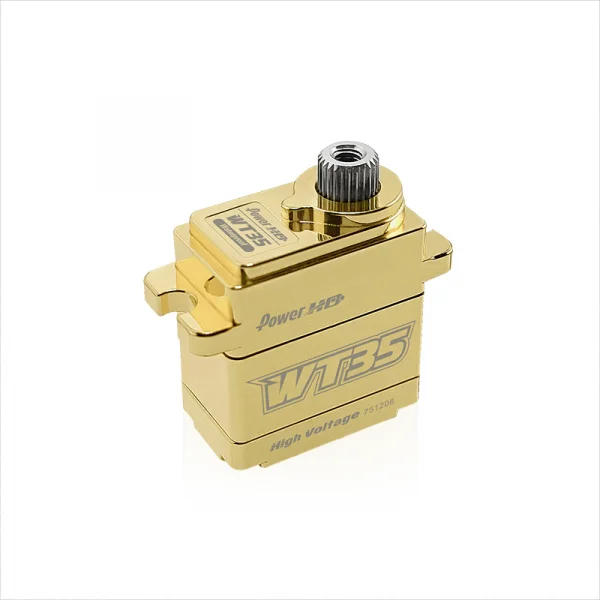

Power HD WT35 Waterproof HV Servo 3.8kg 0.075s TRX-4M
Brand: Power HD
Part No: HD-WT35
£50.59
RRP £54.99
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (4)
Show all 4 models
Description
The Power HD WT35 (HD-WT35) is a compact, waterproof HV micro servo delivering fast response and dependable control. With a 0.075s transit time at 7.4V and torque up to 3.8 kg-cm, it suits small-scale RC applications that demand precise steering in a durable package.
Key Specifications
- Speed: 0.10s (4.8V) / 0.085s (6.0V) / 0.075s (7.4V)
- Torque: 3.0 kg-cm (4.8V) / 3.5 kg-cm (6.0V) / 3.8 kg-cm (7.4V)
- Operating voltage: 4.8–7.4V DC (HV)
- Gear type: Copper & aluminium
- Working frequency: 1520μs / 50Hz
- Operating temperature: -10℃ to 60℃
- Connector wire: JR, 180 mm
- Size (L×W×H): 22.5 × 12.9 × 24.5 mm
- Weight: 35.0 g
Suggested Compatibility
- Traxxas TRX-4M (suggested compatibility)
Secure Payments
Secured by Stripe
Power HD WT35 Brass Servo for TRX-4M - 3.8kg 0.075s Manuals & Guides
How-To Guides & Articles
Specifications
Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(4.8V): 3.0 kg-cm (41.7 oz/in)
Torque(6.0V): 3.5 kg-cm (48.6 oz/in)
Torque(7.4V): 3.8 kg-cm (52.8 oz/in)
Speed: 0.10 sec (4.8V) │ 0.085 sec (6.0V) │
Speed: 0.075 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 35.0 g (1.23 oz)
Gear Type：Copper&Alu
Connector wire length: JR 180 mm
Operating Temperature: -10℃~60℃
Working frequency：1520μs / 50hz
Size：22.5 x 12.9 x 24.5 mm ( 0.89 x 0.51 x 0.96 in)
Key Info:
Key Info:
- Brand: Power HD
- Part No: HD-WT35
- Barcode: 6929180050503
- Fitment: Option Part
