Power HD WT80 HV Crawler Servo 35kg 0.09s

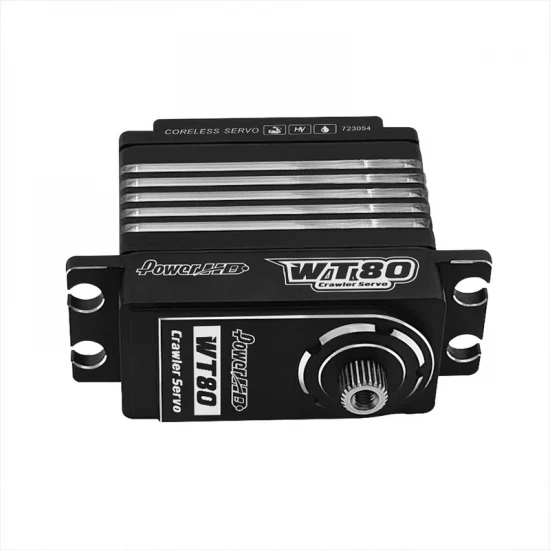

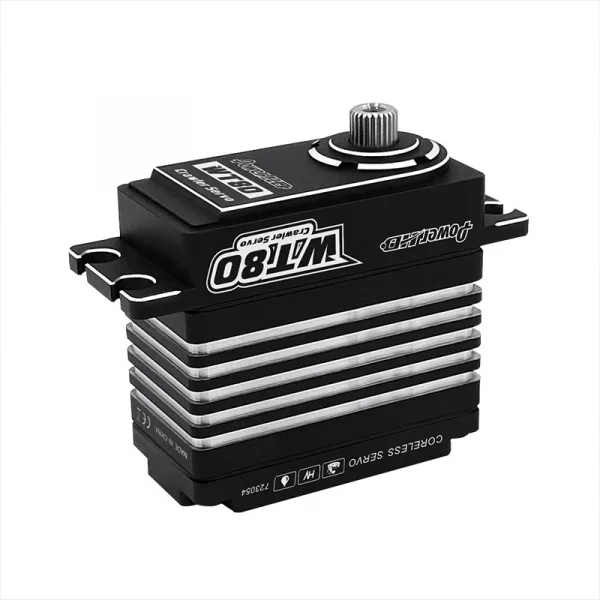

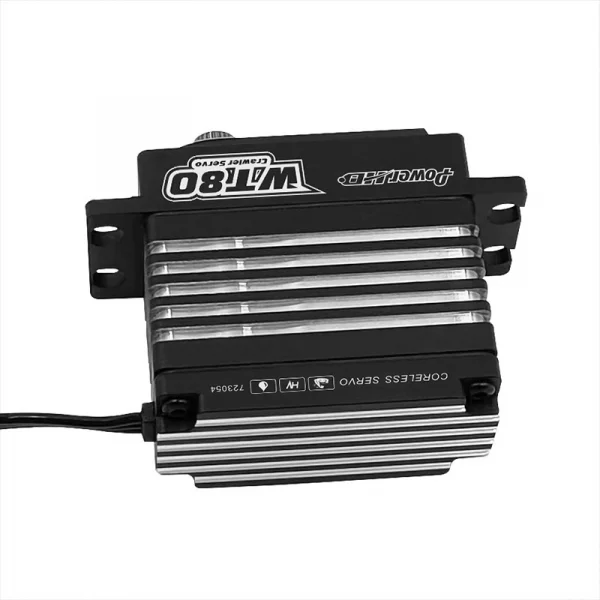

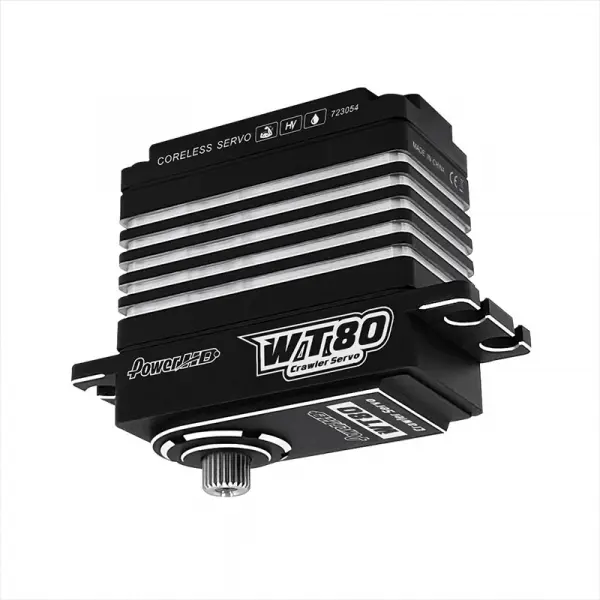

The Power HD WT80 (HD-WT80) HV crawler servo combines an aluminium heat sink case with IP67 waterproofing to deliver dependable performance in harsh conditions. A coreless motor, steel gear train and dual ball bearings provide smooth, durable operation with rapid 0.09s transit at 8.4V and torque up to 35 kg-cm.

Dedicated to crawler use, the WT80 offers strong torque and speed across various frames and environments, performing well on both simulation and competition builds.

Specifications

• Torque (6.0V): 23.0 kg-cm (319.4 oz/in)
• Torque (7.4V): 28.0 kg-cm (388.8 oz/in)
• Torque (8.4V): 35.0 kg-cm (486.1 oz/in)
• Speed: 0.12 sec (6.0V) / 0.10 sec (7.4V) / 0.09 sec (8.4V)
• Operating voltage: 6.0–8.4 V DC
• Weight: 80 g (2.82 oz)
• Bearing type: Dual ball bearings
• Motor type: Coreless
• Gear type: Steel
• Case: Aluminium heat sink
• Waterproof rating: IP67
• Size: 40.7 x 20.5 x 38.7 mm (1.60 x 0.81 x 1.52 in)

Suggested Compatibility

• 1/10 simulation and competition crawlers
• 1/8 simulation and competition crawlers
