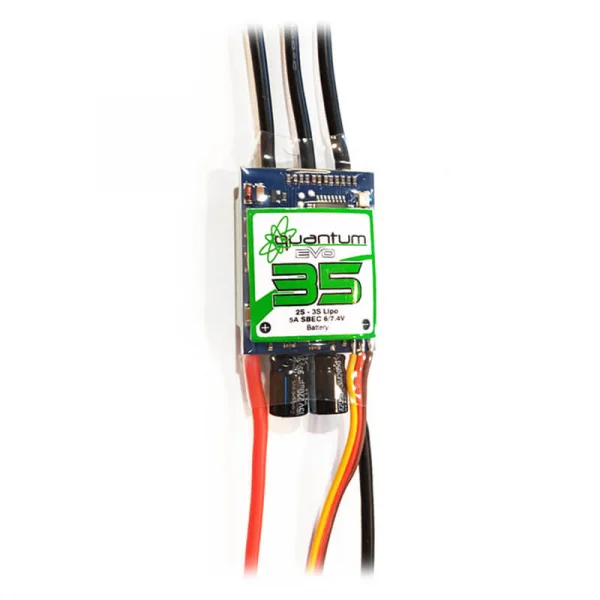

Precision Aerobatics Quantum Evo 35 Pro HV-SBEC
Brand: Precision Aerobatics
Part No: AC-2188EVO
Usually ships same day
Customers Also Buy
Popular with customers who buy products like the Precision Aerobatics Quantum Evo 35 Pro HV-Sbec
Description
Precision Aerobatics Quantum Evo 35 Pro HV-SBEC, part number AC-2188EVO, is a programmable electronic speed controller for radio-controlled models. This 35A ESC is supplied preconfigured for plug-and-play use with Thrust brushless motors and includes a selectable high-voltage switching BEC. The BEC output can be set to 6V, 7.4V or 8.0V, allowing the power supply to be adjusted for the installation.
The microprocessor-controlled unit provides adjustable settings for different applications. These include battery type, low-voltage cutoff, switching frequency, timing, motor rotation, brake operation and acceleration start-up. A governor mode is also available for helicopter applications. The user interface is designed for programming the ESC, while the factory default setting can be restored when required.
Features
The ESC is designed to support high-RPM brushless motors and includes a heat sink to assist with heat dissipation. Its control functions include smooth throttle response, adjustable low-voltage cutoff behaviour and selectable motor rotation. Brake operation can be enabled for applications such as folding-propeller installations.
- Selectable high-voltage switching BEC
- Microprocessor-controlled programmable settings
- Preconfigured for Thrust brushless motors
- Adjustable timing, frequency and low-voltage cutoff
- Selectable clockwise or counterclockwise motor rotation
- Governor mode for helicopter applications
- Thermal overload protection
- Automatic throttle shut-off if the signal is lost
Safety functions include power arming protection to help prevent accidental motor start-up and audible alert tones for abnormal conditions. The installation should allow good airflow over the motor, ESC and batteries during normal RC use; the supplied air baffles should be used in accordance with the instruction manual.
Specifications
- Continuous current: 35A
- Burst current: 40A for less than 10 seconds
- Switching BEC output: 6V or 7.4V at 5A continuous
- Battery support: 2–4-cell LiPo
Secured by Stripe
Specifications
PA Quantum EVO line features outstanding quality backed by equally outstanding service since 2003.
The Quantum EVO range has developed over the years and has proven to be reliable and efficient. Unfortunately, however, this success has also attracted companies who have sought to copy our ESCs. Customers are being confused by similar packaging and instruction manual. Some vendors are suggesting these copies are in fact PA Quantum, or produced at our manufacturing facility. Beware of cheap imitations!! Bad ESC = Crashed Plane!
Quantum EVO adjustable HV SBEC.
This is the latest edition of our Quantum Evo Electronic Speed Control (ESC) featuring a high output SBEC capable of delivering 6v, 7.4v or 8.0v. It ships preconfigured for plug-and-play use with Thrust brushless motors. Years of R&D and experience has culminated in this extremely reliable, efficient and robust ESC.
Features- Selectable high voltage switching BEC (Battery Eliminator Circuit).
- Powerful SBEC – capable of high amp peak.
- Smooth and accurate throttle linearity.
- New design larger efficient heat sink.
- Designed, tuned and optimized for Thrust™ motors.
- Fully programmable Microprocessor Controlled for all applications.
- User friendly interface for quick and easy hassle free programming.
- Exceptionally low resistance for efficient cool operation.
- High rate switching with high RPM brushless motor support.
- Rugged surface mount industry grade components for added reliability and crash durability.
- Brake setting (we recommend using brake only for folding props applications).
- Battery type (LiPo or NiCd/NiMh).
- Low voltage cutoff setting.
- Factory default setup restore.
- Switching frequency.
- Low Voltage Cutoff type – LVC (power reduction or immediate shutoff).
- Timing settings (to enhance ESC efficiency and smoothness).
- Soft acceleration start ups (for delicate gearbox and helicopter applications).
- Motor rotation (clockwise\counterclockwise).
- Governor mode (for helicopter applications).
- Thermal overload protection.
- Automatic throttle shut-off if signal is lost.
- Power arming protection (to prevent accidental motor spool-up when switched ON).
- ESC is equipped with audible alert tones to indicate abnormal conditions.
Continuous current: 35A
Burst Current (<10s): 40A
Switching BEC Output: 6V/7.4V 5A (continuous)
LiPo: 2-4 Cells
It is essential to allow good air flow (using the supplied air baffles and installing the gear per the instruction manual) over the motor, ESC and batteries under normal RC hobby use only, otherwise, ESC will heat-up and reach the thermal protection threshold or may damage.
Unsure which Speed Controller you need for your model?
Visit our ESC Compare Centre and find the ideal speed controller for your needs.
Key Info:
- Brand: Precision Aerobatics
- Part No: AC-2188EVO
- Barcode: 5056135798782
