Precision Aerobatics Thrust 25 Brushless Motor AC-1889
Brand: Precision Aerobatics
Part No: AC-1889
Usually ships same day
Customers Also Buy
Popular with customers who buy products like the Precision Aerobatics Thrust 25 Brushless Motor
Description

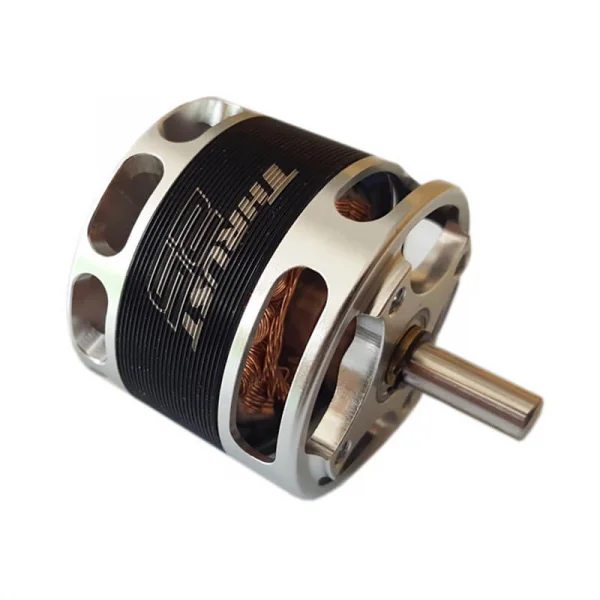

The Precision Aerobatics Thrust 25 Brushless Motor, part number AC-1889, is a brushless motor for radio-controlled aircraft. It uses RotorKool technology to help manage operating temperatures around the stator core, low-resistance windings, stator plates, bearings and neodymium magnets. The motor is designed to combine high torque, thrust and efficiency in a compact power system.
An integrated CNC-machined aluminium rotor fan and rear end bell form part of the cooling arrangement, while the anodised motor can features micro ridges to increase surface area for heat dissipation. High Velocity Force Cool Ventilation directs airflow through the motor. The rotor is computer balanced to reduce vibration, and the motor uses triple NMB Japanese bearings, a hardened stainless steel shaft and high-temperature neodymium magnets.
Features
The Thrust 25 has low-resistance windings for cool, efficient operation and a small gap between the stator and curved magnets to support torque and thrust. It is supplied with a lightweight CNC-machined aluminium propeller adaptor made in Germany. HD-insulated copper cables terminate in pre-soldered gold bullet connectors, providing a ready connection point for a suitable electronic speed controller. The motor's construction also includes precision-machined components and an integrated ventilation system.
Specifications
- Outside diameter: 37.2 mm
- Length: 34 mm
- Weight: 95 g
- Mounting bolt diameter: M3
- Battery: 2–3S LiPo
- Recommended ESC: Quantum 35 Evo
Secured by Stripe
Specifications
The development of our PA Thrust® motors has followed our traditional design philosophy employed in our aircraft; which is doing things better. Thrust® motors are one of the coolest running high performance, high-torque and high efficiency brushless motors ever produced to date. The design incorporates our RotorKool® technology which keeps the stator core material, the low resistance windings, highly permeable stator plates, high quality NMB Japanese triple bearings and powerful neodymium magnets at optimum operating temperatures.
Features- Incorporates our RotorKool® technology.
- Aluminium precision CNC machined state of the art integrated rotor fan and rear end bell.
- High Velocity Force Cool Ventilation (HVFCV).
- Triple oversize, high quality NMB Japanese bearings.
- High temperature and powerful neodymium magnets.
- Computer balanced rotor to eliminate vibrations.
- Extreme thrust with high efficiency.
- Hardened stainless steel motor shaft.
- Smallest air gap between the stator and curved neodymium magnets – significantly boosting torque and thrust.
- CNC machined anodized motor can with Micro ridges – increases surface area and serve as radiators.
to further boost thermal dissipation. - Highest quality materials and components used in the manufacture.
- PA lightweight aluminium CNC machined propeller adaptor (made in Germany).
- HD insulated copper cables with pre-soldered gold bullet connectors.
- Exceptionally low resistance windings for efficient cool operation.
Outside Diameter: 37.2mm/1.46”
Length: 34mm/1.34”
Weight (gr/oz): 95gr/3.35oz
Mounting Bolts Dia.: M3
Battery: 2-3s LiPo
Poles: KV (rpm/V)
Recommended ESC: Quantum 35 Evo
Key Info:
- Brand: Precision Aerobatics
- Part No: AC-1889
- Barcode: 5056135798812
