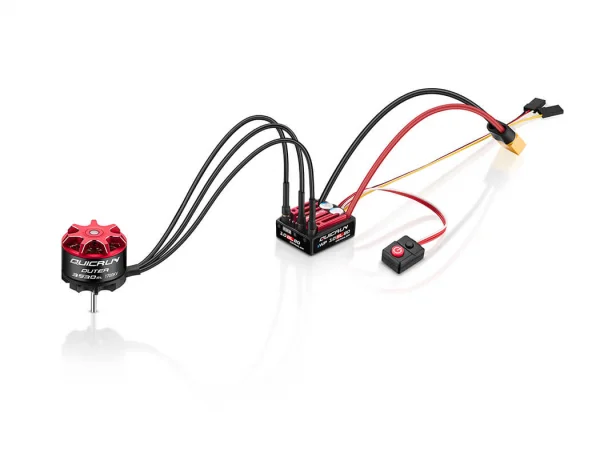

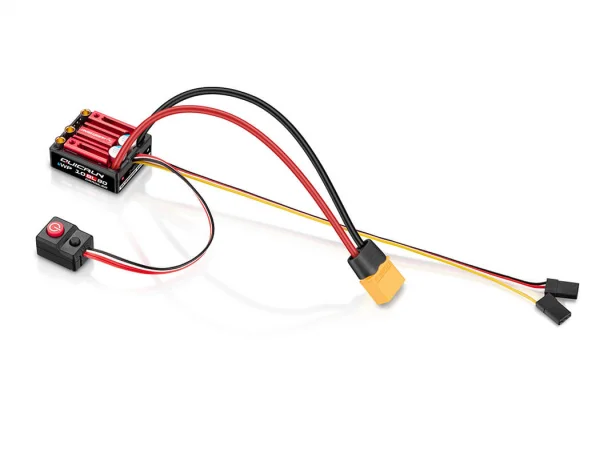

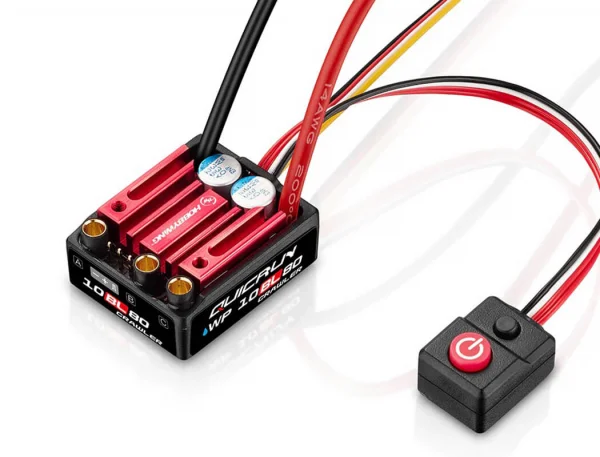

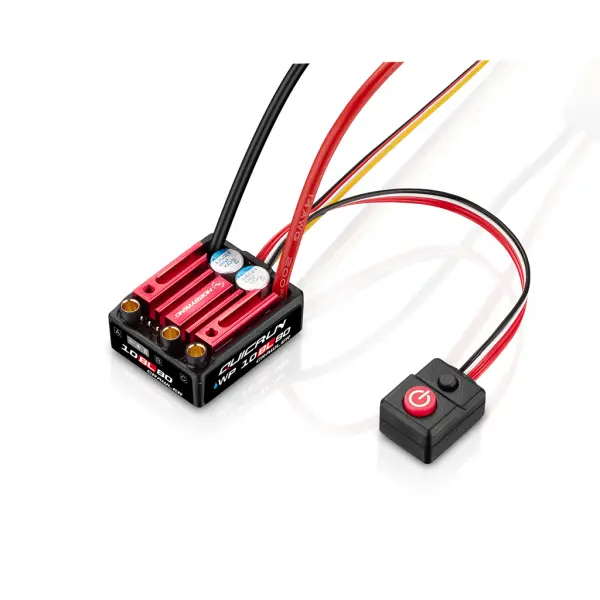

Hobbywing Quicrun WP 10BL80 Crawler ESC (HW30108002)

The Hobbywing Quicrun WP 10BL80 Crawler ESC (HW30108002) is a waterproof, 80A speed controller for 1/10-scale crawling and trail applications. It features a powerful 5A switch-mode BEC with selectable 6V, 7.4V or 8.4V output to suit high-torque, high-voltage servos, real-time AUX-channel drag brake adjustment, and convenient setup via the on-board SET button or optional program boxes.

Features

• Supports sensorless brushless and brushed motors.
• Suggested compatibility covers most brushed or brushless motors on the market.
• Fully waterproof design for all conditions.
• Super internal switch-mode BEC with switchable 6V/7.4V/8.4V output (5A) for powerful servos.
• Independent programming port for easy connection to LED Program Box or LCD Program Box Pro.
• Multiple protections: motor lock-up, low-voltage cutoff, thermal protection, and fail-safe on throttle signal loss.
• Transmitter (AUX) control for adjusting drag brake force in real time.

Specifications

• Scale: 1/10
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: Yes
• Continuous/Peak Current: 80A / 240A
• Input Voltage: 2–4S LiPo
• BEC Output: 6V / 7.4V / 8.4V, 5A
• Input Wires: Black 14AWG 175mm ×1; Red 14AWG 175mm ×1
• Output Wires: None
• Input Connector: XT60
• Output Connectors: 3.5mm gold (female)
• Programming: SET button on ESC; LED Program Box; LCD G2 Program Box; LCD PRO
• Program Port: Independent
• OTA Programmer: Not supported
• Data Recording: Extreme value, real-time and historical (graph) not supported
• Firmware Upgrade: Not supported
• Size: 36 × 30 × 15.5 mm
• Weight: 47.8 g (including wires and connectors)

Suggested Compatibility

• Vehicles: 1/10 crawlers
• Motors: Sensorless/sensored brushless; 540 and 555 brushed; outer 3530SL sensorless outrunner motors
• Batteries: 2–4S LiPo
