Description

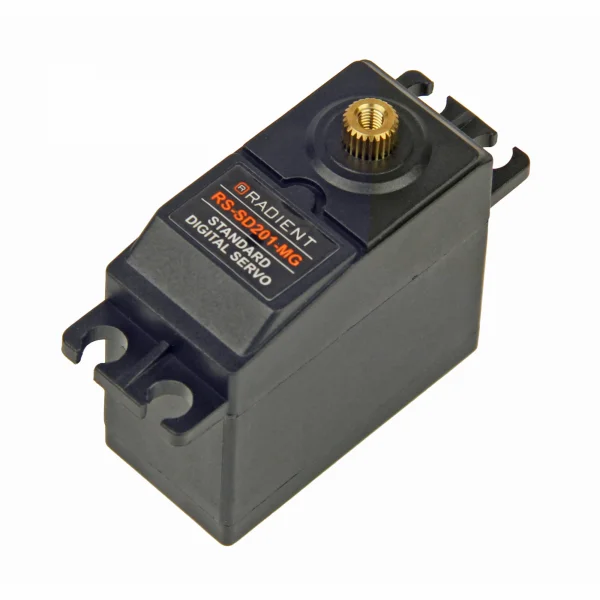

The Radient RS-SD201-MG is a digital, standard-size high torque servo that pairs robust construction with fast response. Featuring a dual ball raced output shaft, metal gears and high-voltage operation (6.0–7.4V), it delivers dependable power and precision in a water-resistant case. Part number RDNA0403.
Key Features
- Digital control for precise, consistent centring
- Metal gears for durability
- Dual ball raced output shaft
- O-ring seals and water resistant design
- High voltage capable (6.0 / 7.4V)
- 3P iron core motor
- 25-tooth spline
- Standard size; age recommendation 14+
Technical Specifications
- Torque at 6.0V: 9.0 kg.cm
- Torque at 7.4V: 10 kg.cm
- Speed at 6.0V: 0.12 s/60°
- Speed at 7.4V: 0.10 s/60°

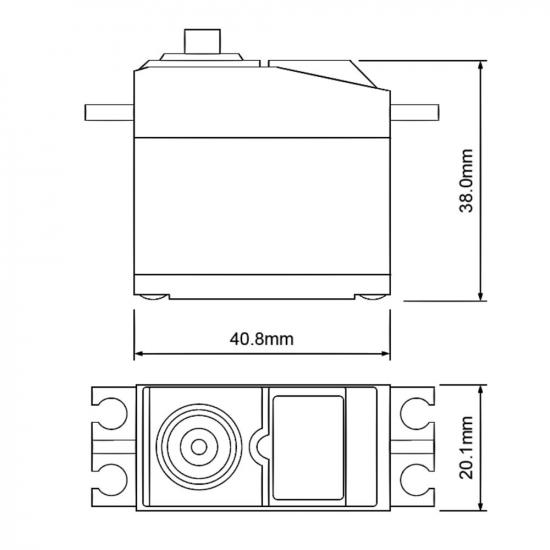

- Dimensions (L x W x H): 40.8 x 20.1 x 38.0 mm
- Weight: 56 g
- Operating voltage: 6.0 / 7.4 V
- Shipping weight: 0.08 kg
- Part number: RDNA0403
Secured by Stripe
Specifications
Offering the size, power, torque and speed to suit a variety of applications Radient servos are rapidly building a reputation for reliability that compliments their outstanding value. With its dual ball raced output shaft, metal gears, high voltage capability plus impressive torque and speed, the RS-SD201-MG is a perfect example.
Specification:
| Weight (g): | 56 |
| Speed at 6.0V (sec/60deg): | 0.12 |
| Speed at 7.4V (sec/60deg): | 0.10 |
| Torque at 6.0V (kg.cm): | 9.0 |
| Torque at 7.4V (kg.cm): | 10 |
| Size (mm): | 40.8 x 20.1 x 38.0 |
| Voltage (V): | 6.0 / 7.4 |
Radient RS-SD201-MG Digital High Torque Servo Tech Specs:
Radient RS-SD201-MG Digital High Torque Servo Key Features:
- Offering the size, power, torque and speed to suit a variety of applications Radient servos are rapidly building a reputation for reliability that compliments their outstanding value. With its dual ball raced output shaft, metal gears, high voltage capability plus impressive torque and speed, the RS-SD201-MG is a perfect example.
Specification:
Weight (g): 56 Speed at 6.0V (sec/60deg): 0.12 Speed at 7.4V (sec/60deg): 0.10 Torque at 6.0V (kg.cm): 9.0 Torque at 7.4V (kg.cm): 10 Size (mm): 40.8 x 20.1 x 38.0 Voltage (V): 6.0 / 7.4 - O-ring seals.
- Water resistant.
- 3P iron core motor.
- Metal gears.
- 25 tooth spline.
- High voltage.
- Dual ball raced output shaft.
Radient RS-SD201-MG Digital High Torque Servo Tech Specs:
- Weight: 56g / 1.98oz
- Shipping Weight: 0.08kg / 0.17lbs
- Product Height: 38mm / 1.50in
- Product Width: 20mm / 0.79in
- Product Length: 41mm / 1.61in
- Servo Size: Standard
- Age Recommendation: 14+
Key Info:
- Brand: Radient
- Part No: RDNA0403
- Barcode: 841723601965
