RadioLink AT9S 10-Channel Transmitter RLKT091005
Brand: RadioLink
Part No: RLKT091005
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the RadioLink AT9S 10 Channel Transmitter with R9DS Receiver (Mode 1)
Description

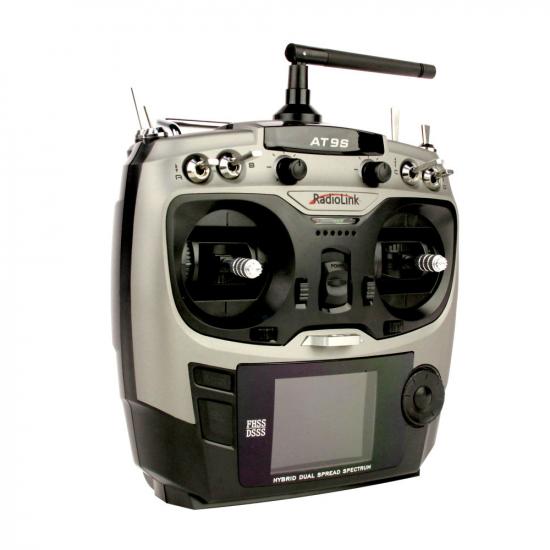

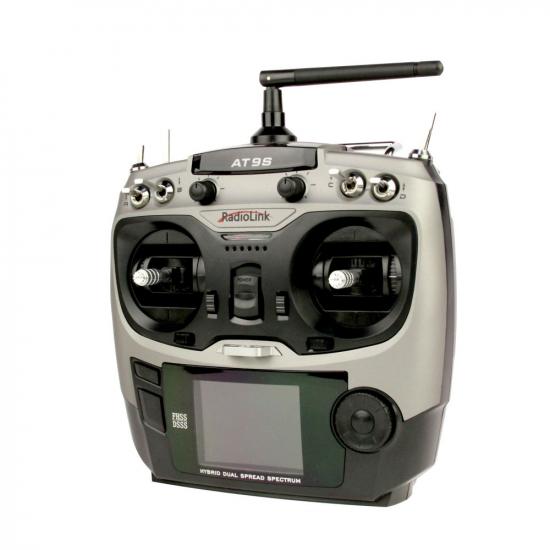

The RadioLink AT9S 10-Channel Transmitter with R9DS Receiver (Mode 1), part number RLKT091005, is a 2.4GHz radio system for model control. It provides 10 channels, a colour LCD and telemetry capability, with FHSS and DSSS spread-spectrum protocols for frequency-hopping transmission and interference rejection. The included R9DS receiver provides nine channels, while the transmitter offers 15 model memories for storing settings across different aircraft and models.
Mode support covers fixed-wing power models, gliders, helicopters and multirotors. Glider programming accommodates different aileron and flap arrangements, while model functions include servo reverse, end point adjustment, sub-trim, dual rate, exponential, throttle cut, fail-safe and three timers. Further functions include programmable mixers, flap trim, aileron differential, air brake, V-tail and elevon mixing, throttle curves, gyro sense, governor settings, flight conditions and servo monitoring.
The AT9S includes digital trims, two proportional sliders, four two-position switches, three three-position switches and a return switch. Its features also include S-BUS compatibility, vibration and low-voltage warnings, receiver signal strength telemetry, an updatable firmware system through the micro USB port and a wide 7.4–15V input range. Motor battery and GPS telemetry can be added using the relevant optional sensors. Wireless trainer operation is supported with an optional R8FM module.
What's Included
- AT9S 2.4GHz 10-channel transmitter
- R9DS 9-channel receiver
- Throttle stick spring retainer
- Neck strap

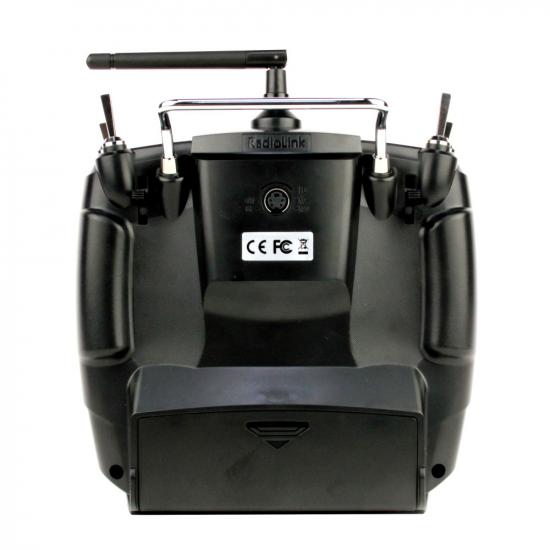

The transmitter uses Mode 1 control layout and requires eight AA-size batteries. Its metal carry handle, digital trims and shaped case provide the controls and handling features needed for regular radio modelling use.
Specifications
- Channels: 10
- Model memory: 15
- Resolution: 4096 bits
- Input voltage: 7.4–15V
Secured by Stripe
RadioLink AT9S 10 Channel Transmitter with R9DS Receiver (Mode 1) Manuals & Guides
Specifications
RadioLink may well be a name that’s new to you but, rest assured, the protocol and the brand’s assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you’ll not only love for its features and flexibility but one you’ll grow to adore for its comfort, ease of use and solid dependability. And we haven’t even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that’ll raise an enlightened eyebrow and receiver prices that’ll have you reaching for your wallet, RadioLink has been radio modelling’s the best kept secret of recent times… but not anymore!
An updated version of the popular AT9, the AT9S, 2.4GHz mid-range, telemetry capable transmitter now has 10 channels and, like its predecessor has been designed with a furure-proof feature-set to suit the intermediate model pilot with an expanding hangar and the need for a transmitter with an all-encompassing capability. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid full range transmission. But it’s better than that; if you’re a regular club flyer a quick look at the specification will confirm that, actually, this is all the transmitter you’ll ever need. Moreover, with amazingly competitive receiver pricing you’ll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of its intuitive programming, colour LCD, telemetry features, wireless trainer link capability and dashing good looks.
Comprehensive feature list:Model categories catered for
- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
- End Point Adjustment
- Sub Trim
- Servo Reverse
- Dual Rate
- Exponential
- Throttle Cut
- Fail-safe
- Three timers
- Trainer Function
- Servo Monitor
- Trim Step
- Idle Down
- Flaperon
- 8 programmable mixers
- Flap Trim
- Aileron Differential
- Air Brake
- Elevator / Flap Mixing
- Snap Roll
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Throttle Delay
- Gyro Sense
- Servo Speed
- Ailevator Mixing
- Revolution Mix
- Hover Throttle
- Hover Pitch
- High / Low Pitch
- Governor
- Throttle Mix
- Swash Ring
- Camber Flap
- Camber Mix
- Butterfly
- Butterfly / Elevator Mix
- Spoiler Mix
- Flight Conditions
Special functions
Specification:
| Length (mm): | 180 |
| Height (mm): | 213 (aerial folded) |
| Width (mm): | 63 (minus carry handle) |
| Weight (g): | 828 |
RadioLink AT9S 2.4GHz 10-Channel Transmitter with Receiver (Silver) (Mode 1) Tech Specs:
RadioLink AT9S 2.4GHz 10-Channel Transmitter with Receiver (Silver) (Mode 1) Key Features:
- RadioLink may well be a name that's new to you but, rest assured, the protocol and the brand's assured reliability is anything but. 10 years on the market and with an exponentially growing core of satisfied users this is a radio system that you'll not only love for its features and flexibility but one you'll grow to adore for its comfort, ease of use and solid dependability. And we haven't even mentioned the price yet! With a range of transmitters covering everything from beginner to expert, standard features that'll raise an enlightened eyebrow and receiver prices that'll have you reaching for your wallet, RadioLink has been radio modelling's the best kept secret of recent times but not anymore!
An updated version of the popular AT9, the AT9S, 2.4GHz mid-range, telemetry capable transmitter now has 10 channels and, like its predecessor has been designed with a furure-proof feature-set to suit the intermediate model pilot with an expanding hangar and the need for a transmitter with an all-encompassing capability. Equipped with FHSS & DSSS frequency-hopping spread spectrum protocol you can be assured of a superior transmission rate, enhanced interference rejection and the peace of mind that comes with a rock-solid full range transmission. But it's better than that; if you're a regular club flyer a quick look at the specification will confirm that, actually, this is all the transmitter you'll ever need. Moreover, with amazingly competitive receiver pricing you'll realise that you really can afford to conveniently grow, or even re-equip, your fleet. Take a look at the full feature list and make special note of its intuitive programming, colour LCD, telemetry features, wireless trainer link capability and dashing good looks.Comprehensive feature list:
Model categories catered for- Glider (one aileron plus one flap)
- Glider (two aileron plus one flap)
- Glider (two aileron plus two flap)
- Fixed-wing power
- Helicopter
- Multirotor
- End Point Adjustment
- Sub Trim
- Servo Reverse
- Dual Rate
- Exponential
- Throttle Cut
- Fail-safe
- Three timers
- Trainer Function
- Servo Monitor
- Trim Step
- Idle Down
- Flaperon
- 8 programmable mixers
- Flap Trim
- Aileron Differential
- Air Brake
- Elevator / Flap Mixing
- Snap Roll
- V-Tail Mixing
- Elevon Mixing
- Throttle Curve
- Throttle Delay
- Gyro Sense
- Servo Speed
- Ailevator Mixing
- Revolution Mix
- Hover Throttle
- Hover Pitch
- High / Low Pitch
- Governor
- Throttle Mix
- Swash Ring
- Camber Flap
- Camber Mix
- Butterfly
- Butterfly / Elevator Mix
- Spoiler Mix
- Flight Conditions
Special functions
Specification:
Length (mm): 180 Height (mm): 213 (aerial folded) Width (mm): 63 (minus carry handle) Weight (g): 828 - 10 Channels.
- 15 Model Memory.
- Colour LCD.
- DSSS & FHSS spread spectrum protocol.
- Rx battery and RSSI (Receiver Signal Strength Indicator) telemetry as standard.
- Mode change capable.
- Wide (7.4 to 15V) voltage range input.
- Tx battery reverse polarity protection.
- Updatable firmware via micro USB port.
- 4096 bit resolution.
- Tx and Rx low battery voltage warning (as standard).
- Motor battery voltage warning (with optional PRM-01 sensor).
- GPS telemetry (with optional TS100 sensor).

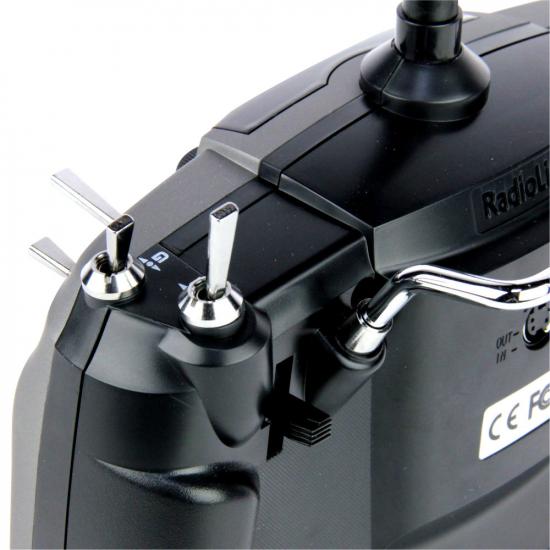

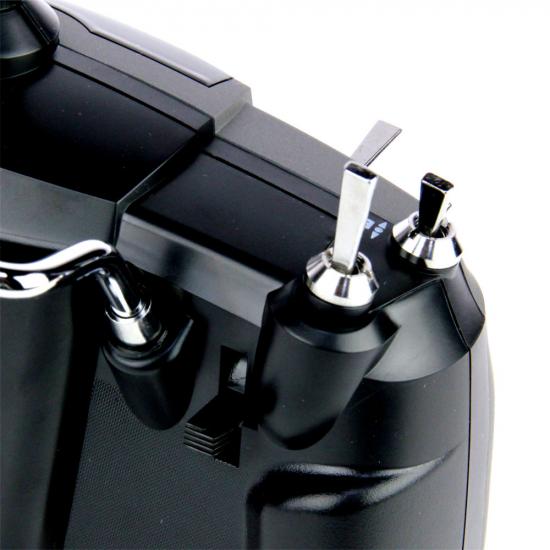

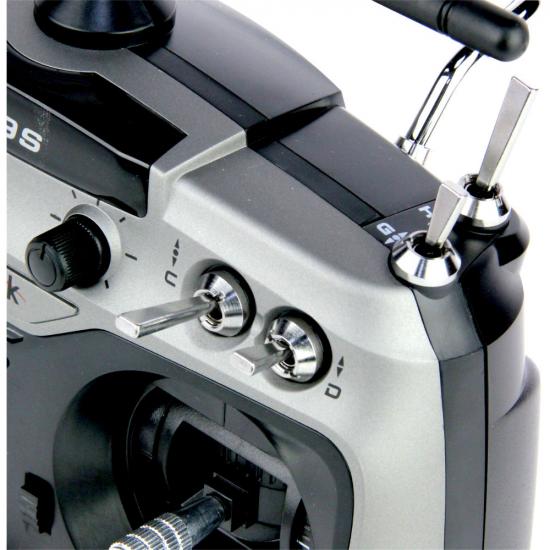

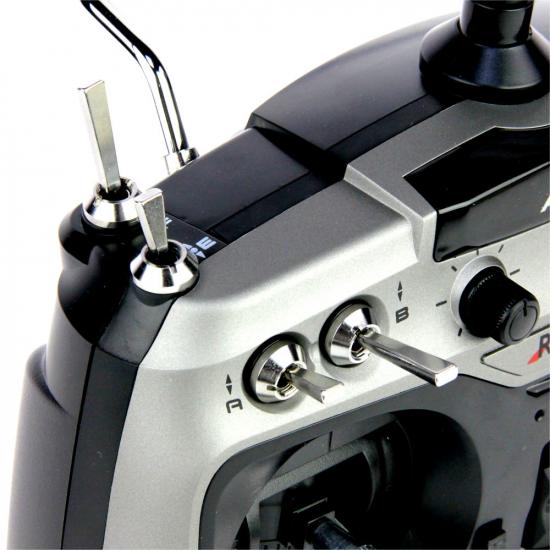

- 4 x two-position, 3 x three-position and 1 x return switch.
- 2 x proportional slider controls.
- Wireless trainer compatibility (with optional R8FM module).
- Intuitive programming.
- Sturdy metal carry handle.
- Digital trims.
- Comfortable ergonomic design.
- S-BUS compatible.
- Vibration alarm.
What's in the Box:
- 1x AT9S 2.4GHz 10-channel transmitter.
- 1x R9DS 9-channel receiver.
- 1x Throttle stick spring retainer.
- 1x Neck Strap.
Needed to Complete:

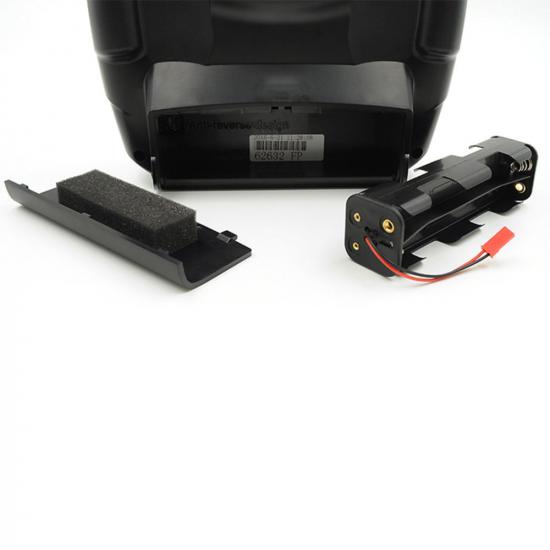

- 8 x AA-size batteries for the transmitter.
RadioLink AT9S 2.4GHz 10-Channel Transmitter with Receiver (Silver) (Mode 1) Tech Specs:
- Weight: 880g / 31.04oz
- Shipping Weight: 0.94kg / 2.06lbs
- Product Height: 193mm / 7.60in
- Product Length: 183mm / 7.20in
- Channels: 10
- Model Memory: 15
- Colour: Silver
Key Info:
- Brand: RadioLink
- Part No: RLKT091005
- Barcode: 5051121235180
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
No this will not work with Spektrum. It will only work with Radiolink receivers.
