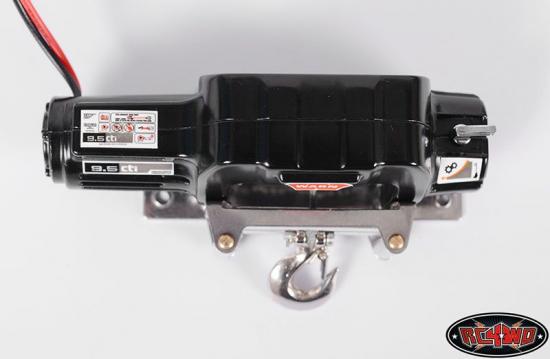

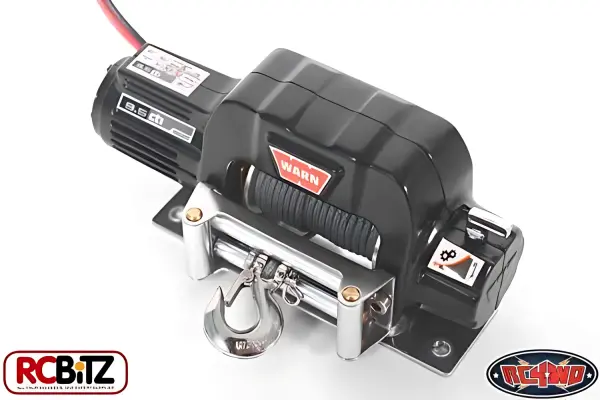

RC4WD 1:10 Scale Warn 9.5cti Winch

RC4WD 1/10 Warn 9.5cti Winch

One of the most iconic names in off-road. This is an all new RC4WD 1/10 Warn 9.5cti winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.
Specifications:

• Cast Aluminum Case
• Stamped Steel Components
• Working Spring Loaded Warn Hook
• Synthetic Winch Rope
• Highly Detailed
• Full Warn Decals Installed
• Voltage: 6v to 11.1v
• Can operate on 3 Cell Lipo
• Easily Rebuildable
• 3ft/.9M Rope Pre-Installed
• Same Mounting Locations as Bulldog Winch
• Load Limits: Dead Lift 6.6lbs/3kgs
• Load Limits: Rolling Drag 9lbs/4.1kgs
• 30 Day Warranty
• Length: 2.9in / 73.68mm
• Total Width: 1.25in / 31.75mm
• Height: 1.31in / 33.56mm
• Weight: 2.1oz / 60g

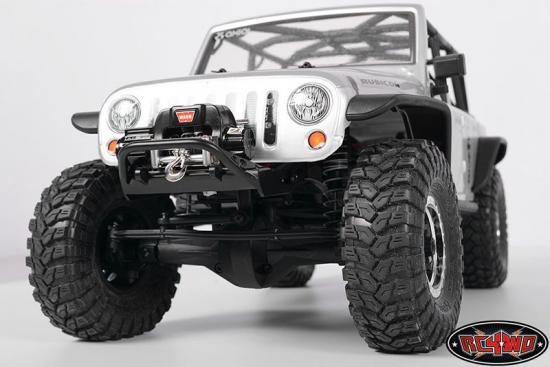

Shown on Tough Armor Stubby Front Bumper to fit Axial SCX10 (Z-S0641) and Axial Jeep Rubicon for example (not included)

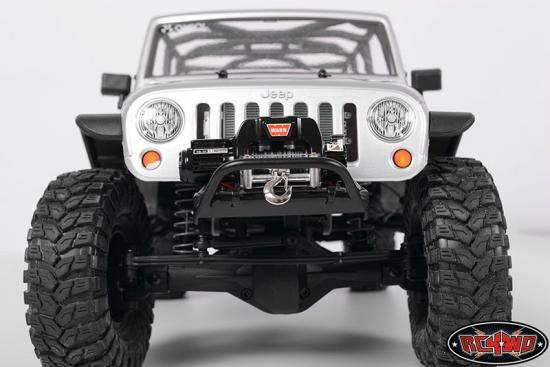

Shown on Tough Armor Winch Bumper with Grill Guard to fit Axial SCX10 (Z-S0160) and Axial Jeep Rubicon for example (not included)

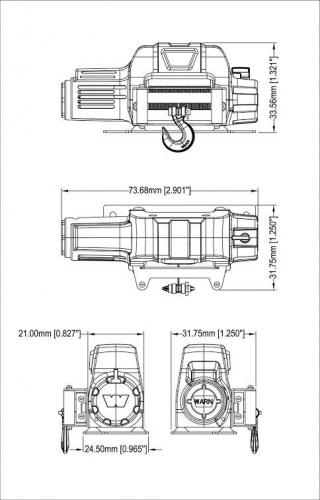

Warn Winch Mounting Plate Measurements

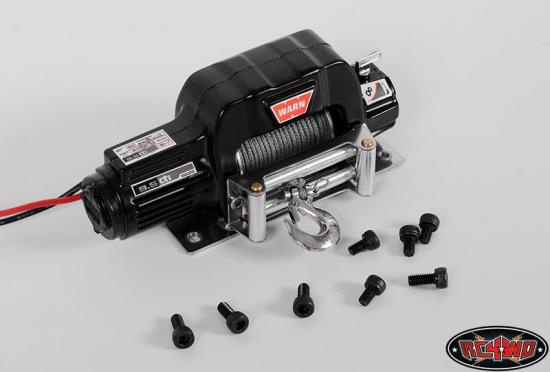

What's Included:

• 1x RC4WD 1/10 Warn 9.5cti Winch
• 4x M2.5x4mm SHCS (Black) (Z-S0760)
• 4x M2.5x6mm SHCS (Black) (Z-S0855)
• 1x Warn Decal Sheet

Required Parts:

• RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
•  RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts:

• ARB Winch Snatch Block (Z-S0341)
• RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)

Replacement Parts:

• Replacement Motor/Gearbox for Warn 9.5cti 1/10 Winch (Z-E0051)
• 1/10 Warn Hook (Z-S1011)
• Synthetic Winch Rope (Z-S0038)
• Warn Licensed Front Bumpers for TF2 (Z-S1091)
• Tough Armor Winch Bumper with Grill Guard to fit Axial SCX10 (Z-S0160)

Replacement Hardware:

• 4x M2x5mm FHSC (Silver)
• 2x M2x4mm SHCS (Silver) (Z-S0927)
• 2x M2x6mm SHCS (Silver) (Z-S0994)

Notes:

• This winch requires a control unit. We offer both a wired (uses your radio's third channel) and wireless unit (hooks directly to a battery).
• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
• For Warnings, Precautions, Safety and Damage Limits: Click Here
• Same mounting points as our Bulldog winches
• Dead Lift is defined as the winch lifting a product from a higher position with no help from the product being lifted.
• Rolling Drag is defines as a truck using its rolling force to help the winch pull a truck or products weight.

Warranty Definition:

• This product will be free from defects in materials and workmanship and fully functional when new.
• The gearbox can handle certain weight limits. If you over load the winch, the gearbox or motor will fail. This is not considered a warranty issue. We have replacement motor/gearbox units and provide clear instructions on replacement.

Instruction Manual:

• Detailed Assembly Click Here

Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.

• Brand: RC4WD
• Part No: Z-S1079
