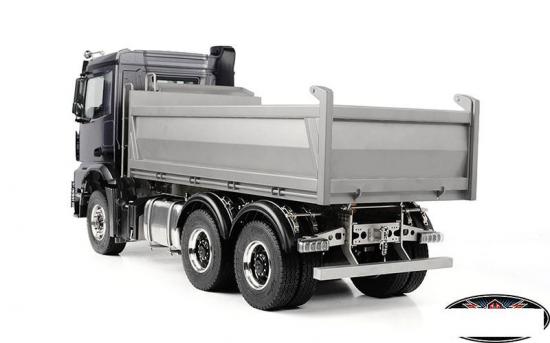

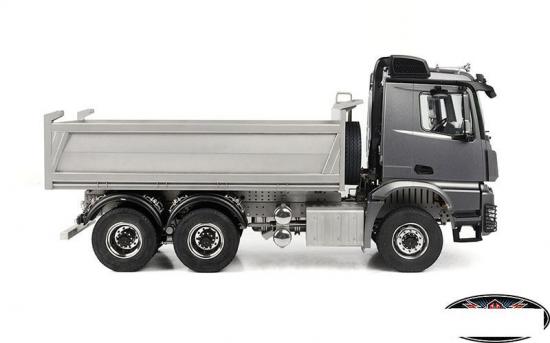

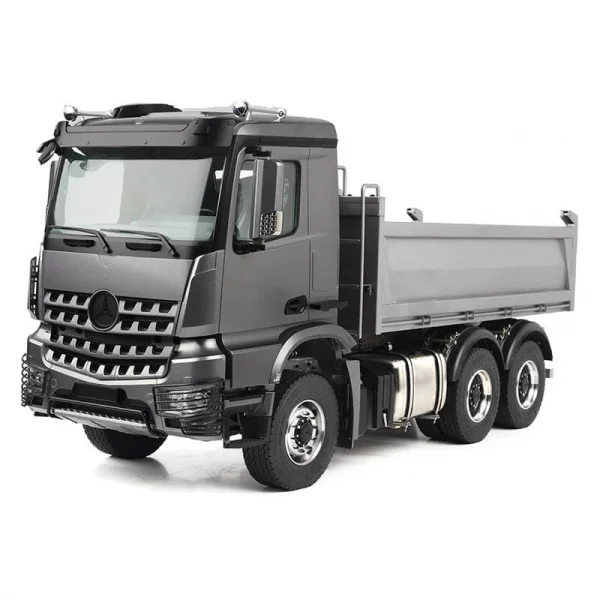

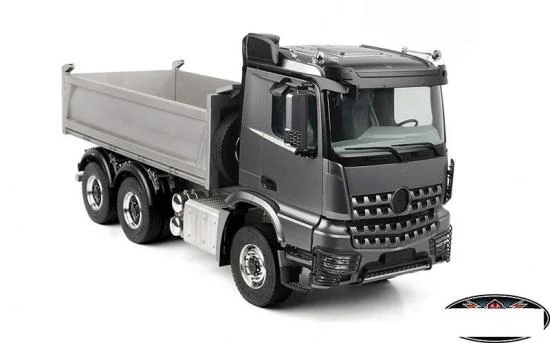

RC4WD 1:14 6x6 Forge Hydraulic Dump Truck RC4WD

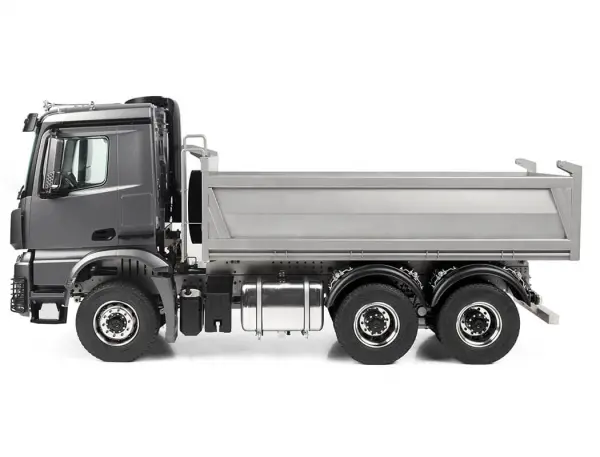

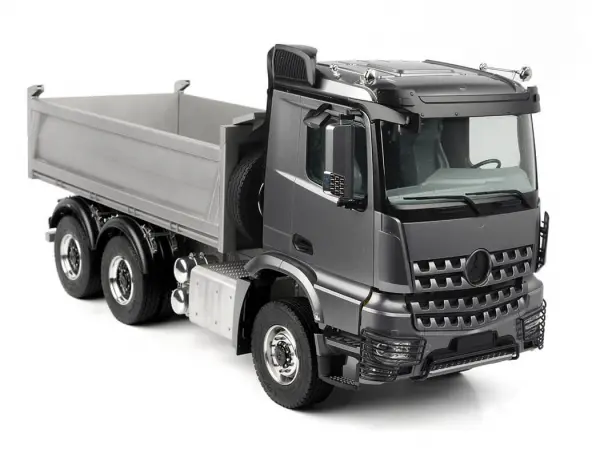

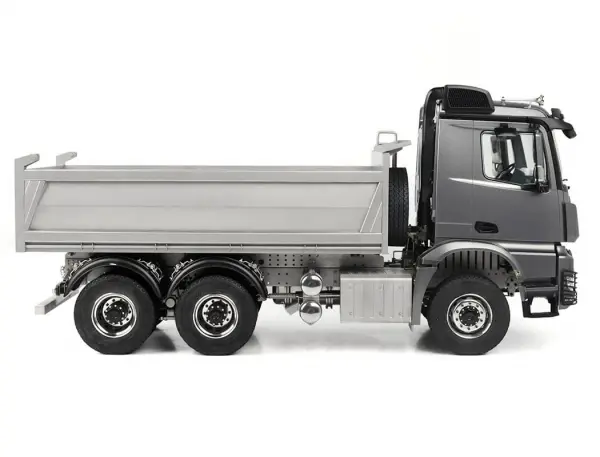

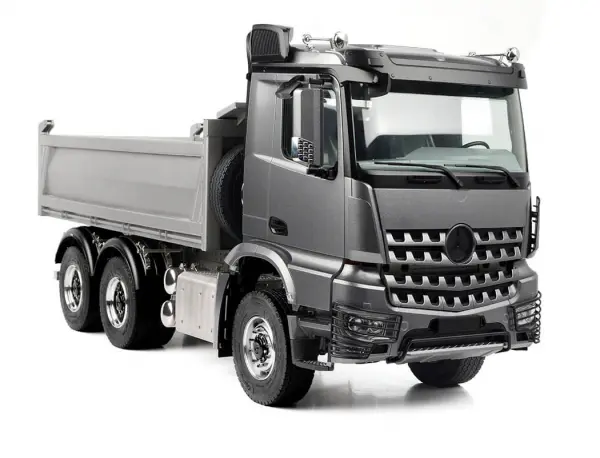

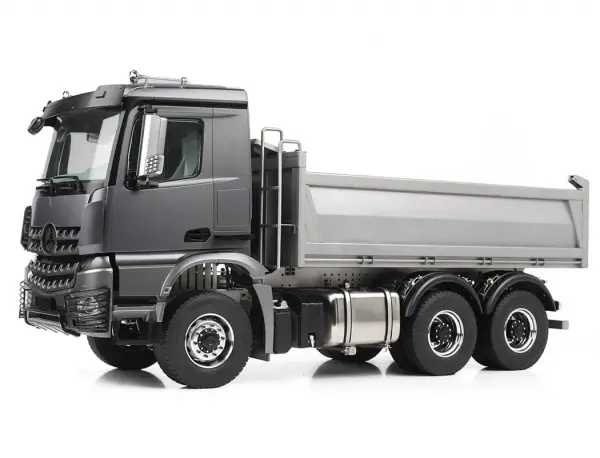

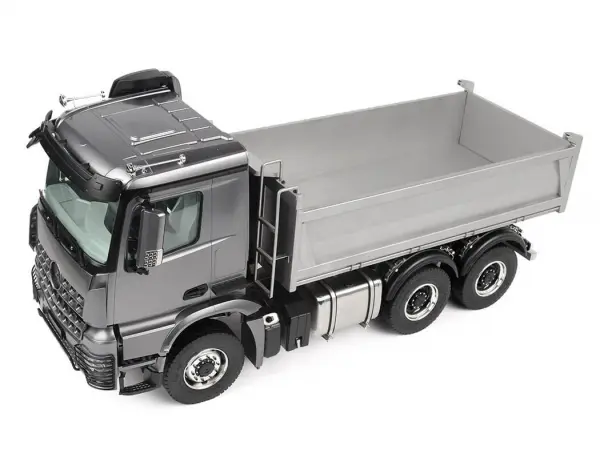

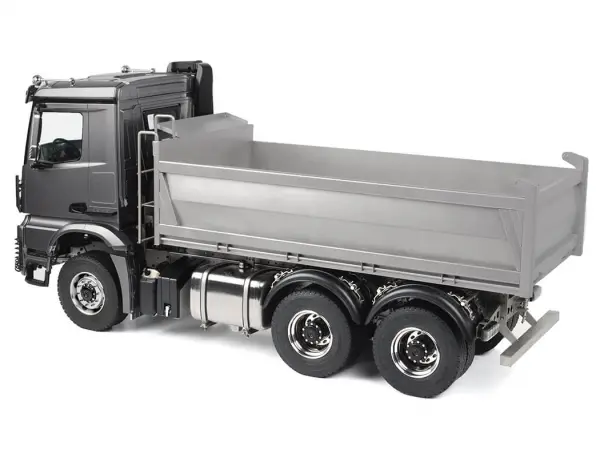

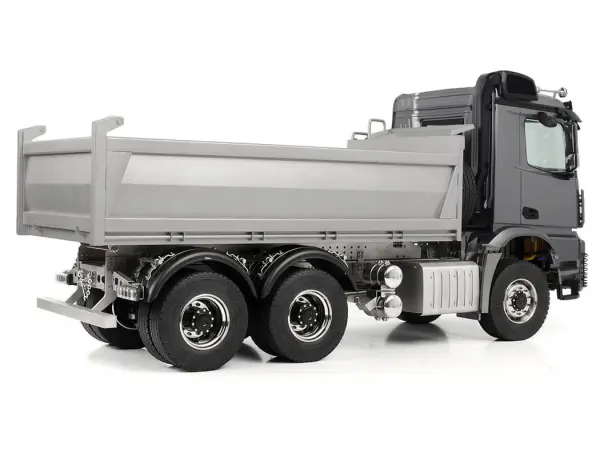

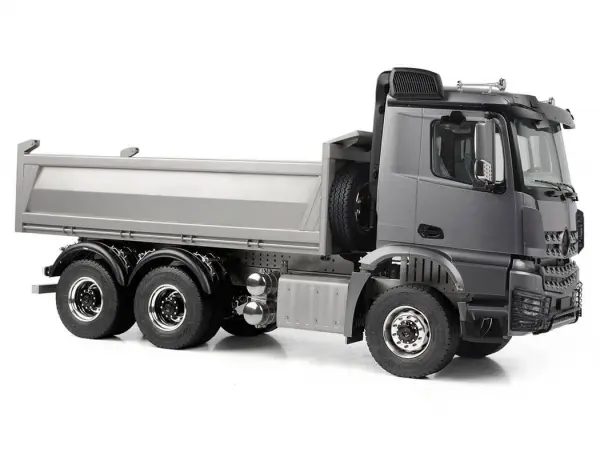

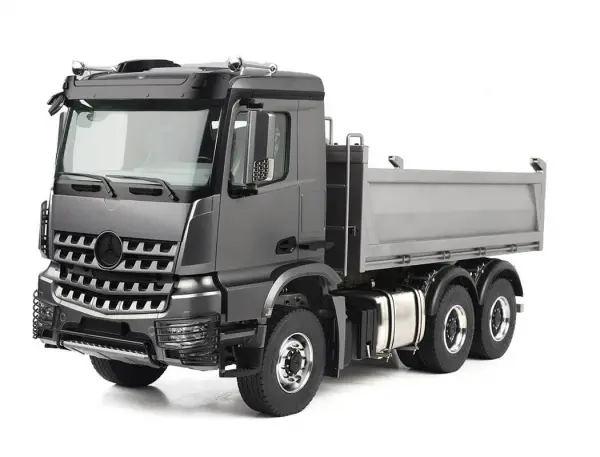

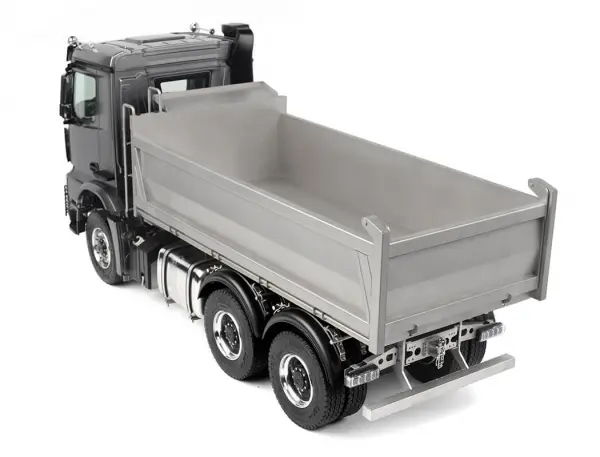

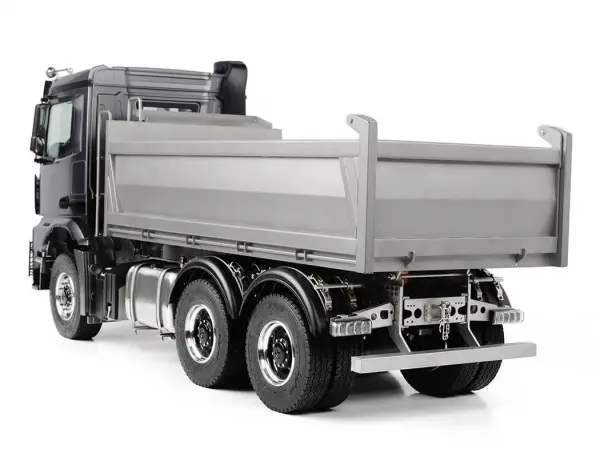

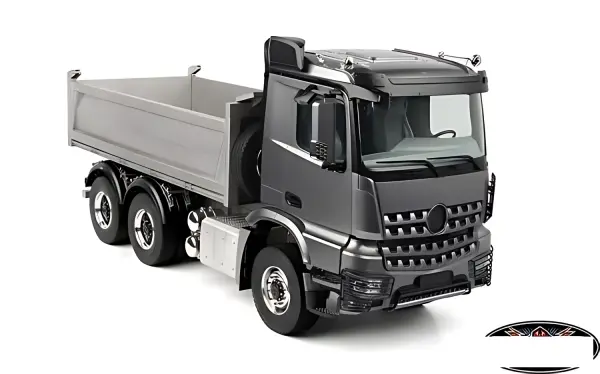

SPECIAL ORDER - 1/14 6x6 Forge Hydraulic Dump Truck The Forge is one of the most powerful R/C Hydraulic Dump Trucks available today. It is highly detailed and based on the European style dump trucks. It is engineered specifically for the tough demands of transporting gravel, sand, asphalt, snow, wood chips or rocks. Created for the customer who requires reliability and high production in bulk earth moving or construction projects. It's made with CNC machined metal parts, fully assembled, ready to work! Be ready for the massive power through the 930KV high speed output brushless hydraulic system.

  Specifications:

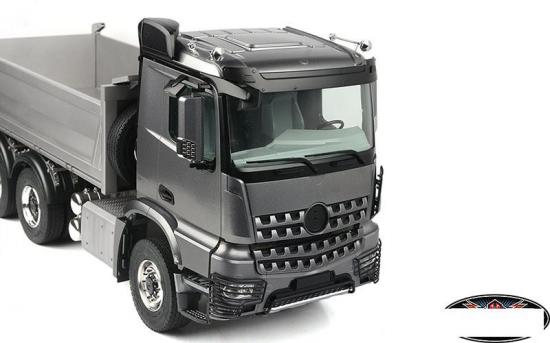

• Hard Plastic European Style Front Cab
• Full Metal 3 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Super Scale Leaf Spring Suspension Setup
• Scale Rims (Stainless Steel / Billet Aluminum)
• Remote Lockable Front, Middle and Rear Axles (Locking Differential)
• Full Metal Front, Middle and Rear Axle Housings
• Steel Scale Drive Shaft
• Realistic Front Cab Latch
• Steel Ladder
• Spare Tire Included
• Molded Functional Fuel Tank
• Automatic Trailer Gate (Do Not Attempt to Open by Hand)
• Rear Light Guard (Protects Against Rocks)
• Scale Light Buckets (Fits 3-5mm LED)
• Recommended Payload: 10kg / 22lbs
• Fully Painted
• Scale Wheel/Tire
• Cylinder Maximum Thrust: 109kg / 231lbs
• Brushed Driven Motor
• 930KV Brushless Motor-Driven Micro Hydraulic Pump
• Length: 570mm / 22.4in
• Width: 190mm / 7.4in
• Height: 270mm / 10.6in
• Weight: 7.9kg / 17.4lbs
• Axle Gear Ratio: 9:1
• Theoretical Load: 10kg / 22lbs
• First Gear 1/60.3, Second Gear 1/45, Third Gear 1/33.3 (Transmission)
• Basic 10 Channel 2.4Ghz Radio
• This Product Is Professionally Pre-assembled
• Manufactured by JDCustoms 30 Days Limited Warranty

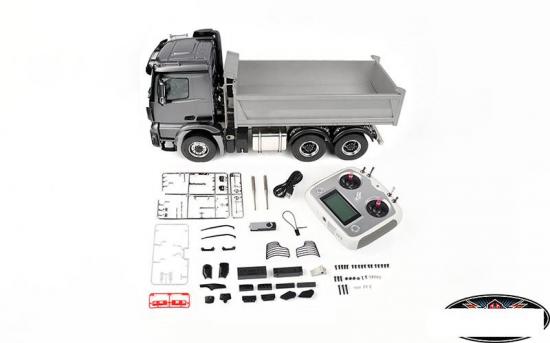

• 1x 1/14 6x6 Forge Hydraulic Dump Truck

• Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
• Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)

• 4x AA Batteries for Radio (Z-S1718)

• Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Hauler Super Wide 1.7" Commercial 1/14 Semi Truck Tires (Z-T0071)
• Long Haul 1.7" Commercial 1/14 Semi Truck Tires (Z-T0026)
• LoRider 1.7" Commercial 1/14 Semi Truck Tires (Z-T0066)
• Roady 1.7" Commercial 1/14 Semi Truck Tires (Z-T0032)
• Roady Super Wide 1.7" Commercial 1/14 Semi Truck Tires (Z-T0072)

• Click here to download

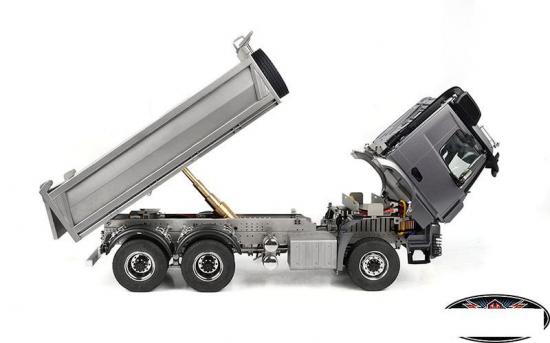

• When you raise the rear dump, do not leave it at the highest position. It will create a lot of pressure and potentially blow up the oil tube. Stay no more than 2 seconds and drop the dump to a lower position.
• Do not use hand to pull the rear door. You will break the door locking mechanism.
• Do not use more than 3S battery. (11.1 volt(s))
• Once the hydraulic cylinder (dump) reaches its maximum height, do not push further.
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• The ESC does not have lipo cut off.
• While some components may come assembled, it may be in your best interests to check the products to ensure all hardwares are tight. In some cases you may want to apply threadlock to some of the hardwares that were already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require threadlock.
• Use threadlock sparingly.
• Do not over tighten screws, otherwise, you may strip the thread.
• This product is for experienced R/C users. Not recommended if you just started with R/C.
• The axle hubs can be screwed off� but may require nylon tipped pliers if they are on really tight.

• Brand: RC4WD
• Part No: VV-JD00057
• Barcode: 639302612842
