RC4WD 1:14 6x6 Nashorn Semi Truck (FMX) RC4WD

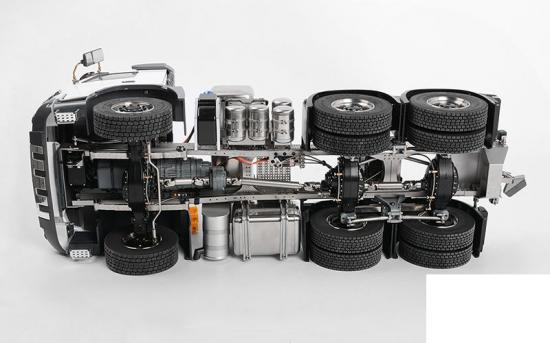

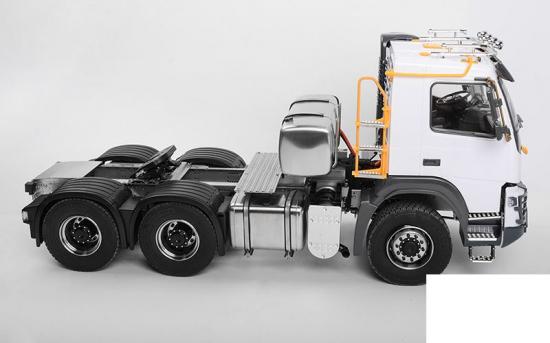

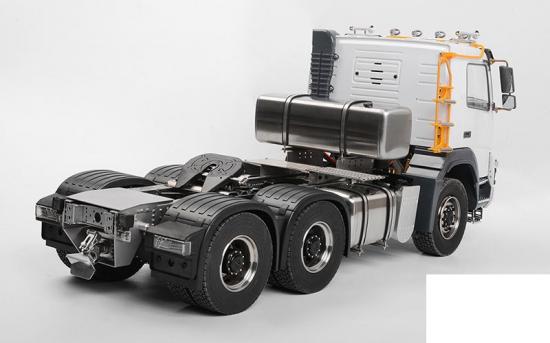

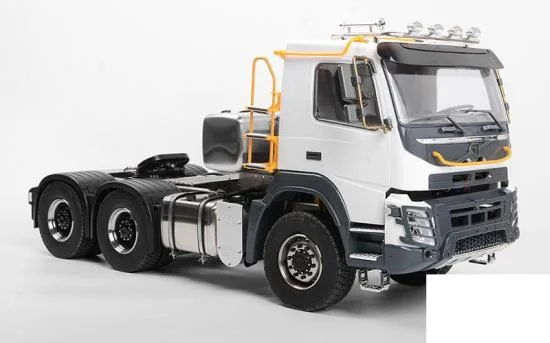

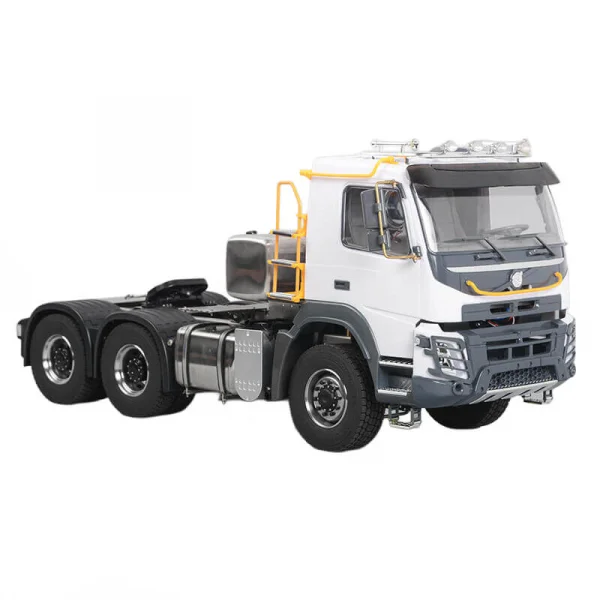

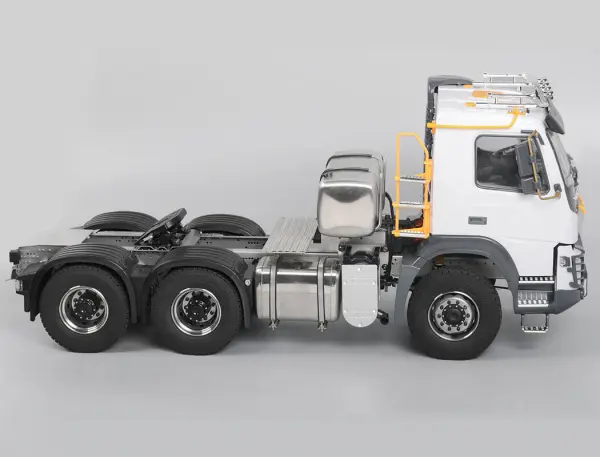

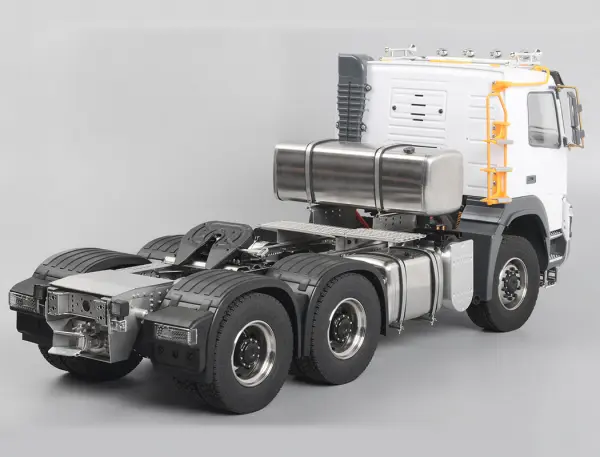

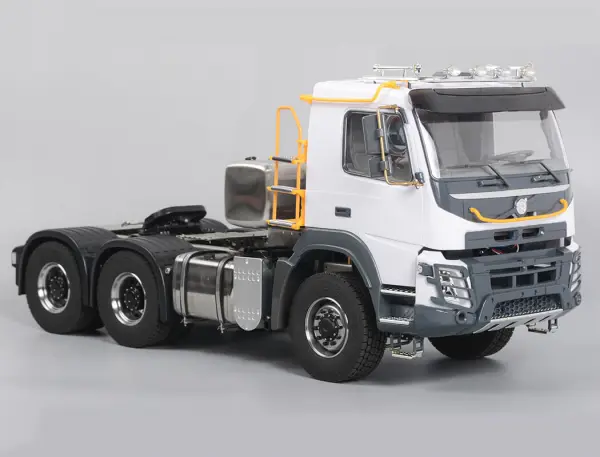

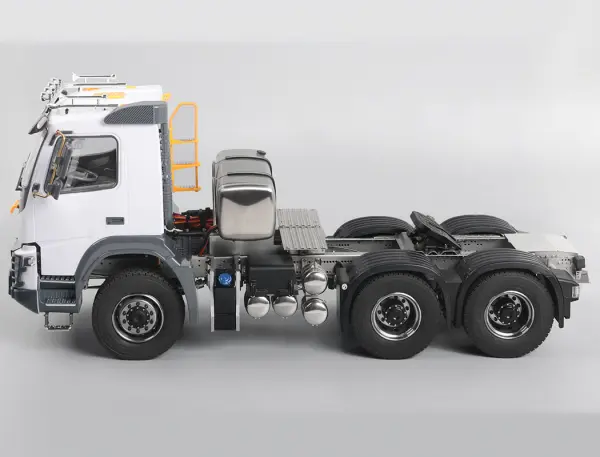

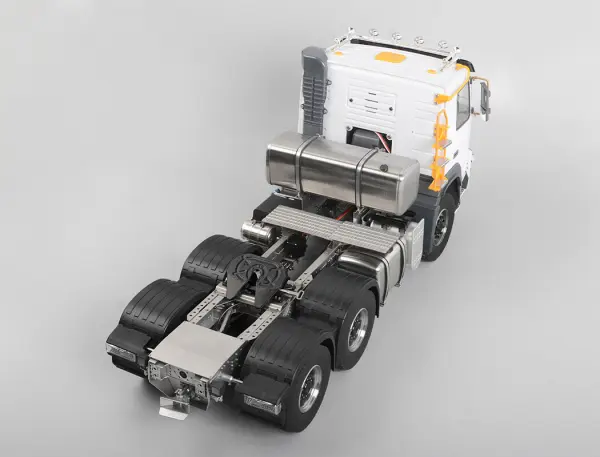

The RC4WD 1:14 6x6 Nashorn Semi Truck (FMX) is a premium, heavy-duty scale hauler designed for experienced R/C users. Built with full metal drivetrain components, a three-speed planetary transmission and remote lockable rear axle, it delivers impressive realism and capability. This special order model (part number VV-JD00035) includes a brushed motor and a basic 6-channel 2.4GHz radio, with some assembly required.

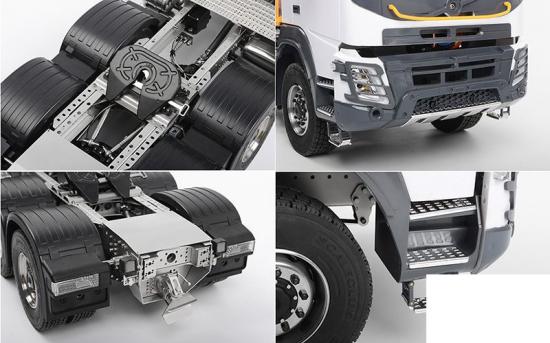

Key Features

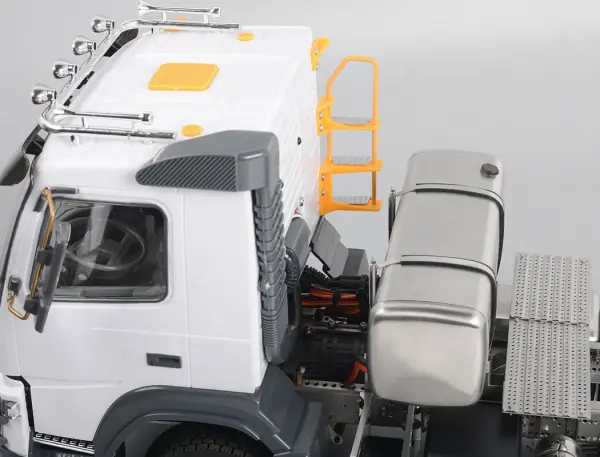

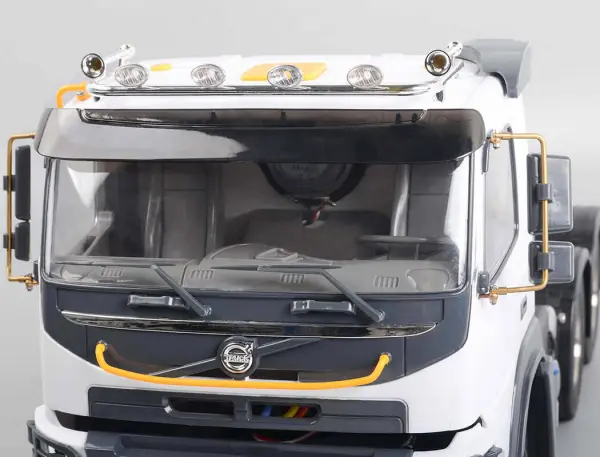

• Hard plastic European style front cab with realistic latch
• Full metal 3-speed transmission (planetary gears)
• Remote lockable rear axle (locking differential)

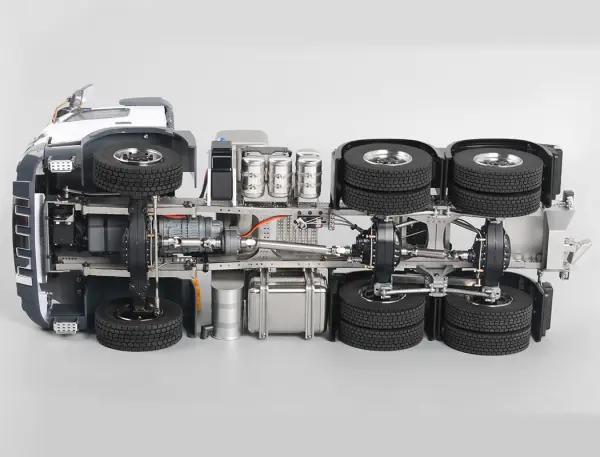

• Full metal front and rear axle housings
• Super scale leaf spring suspension setup

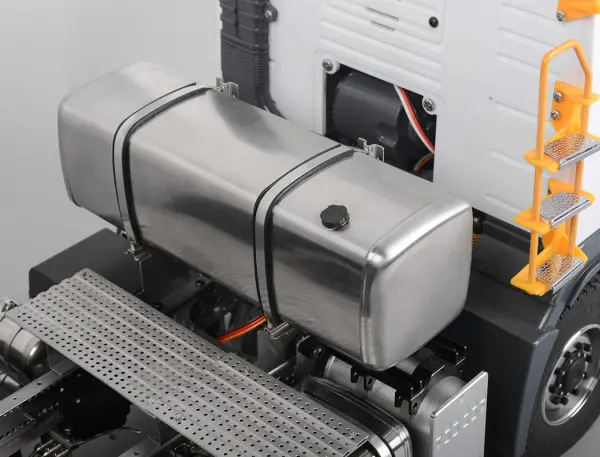

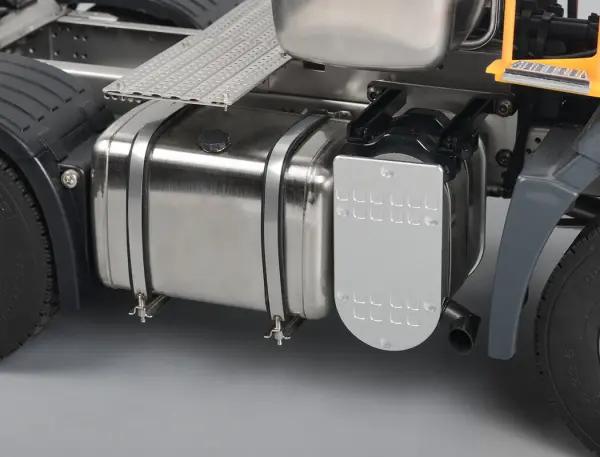

• Scale fuel tank (billet aluminium) and moulded functional fuel tank

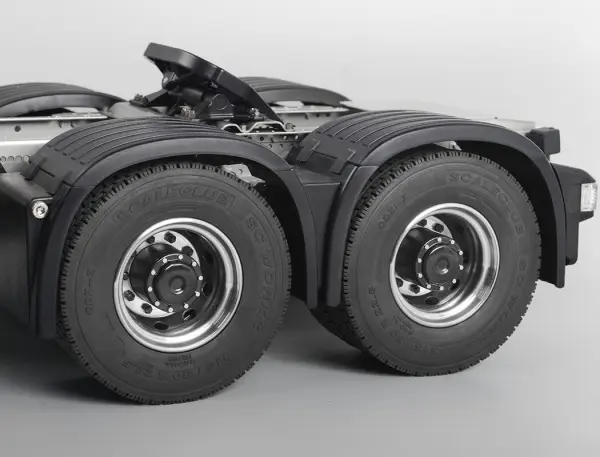

• Scale wheels (stainless steel / billet aluminium)

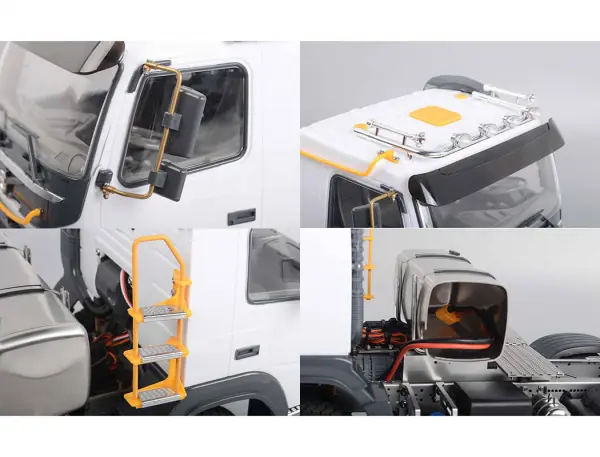

• Steel scale drive shaft and retractable steel ladder
• Scale light buckets (fits 3–5mm LEDs)
• Basic 6-channel 2.4GHz radio included
• Manufactured by JDCustoms

Specifications

• Maximum mass load: 132lb / 60kg
• Axle gear ratio: 9:1
• Transmission ratios: 1st 6.7:1, 2nd 5:1, 3rd 3.7:1
• Brushed electric motor
• Length: 550mm | Width: 200mm | Height: 240mm
• Weight: 6.5kg

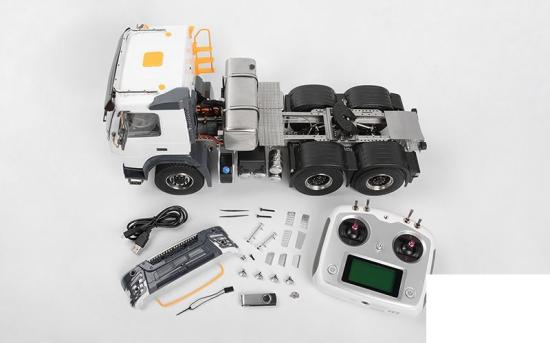

What’s Included

• 1/14 6x6 Nashorn Semi Truck (FMX)

Required Parts

• 4x AA batteries for the radio (Z-S1718)

Optional Parts

• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Hauler Super Wide 1.7" Commercial 1/14 Semi Truck Tyres (Z-T0071)
• Long Haul 1.7" Commercial 1/14 Semi Truck Tyres (Z-T0026)
• LoRider 1.7" Commercial 1/14 Semi Truck Tyres (Z-T0066)
• Roady 1.7" Commercial 1/14 Semi Truck Tyres (Z-T0032)
• Roady Super Wide 1.7" Commercial 1/14 Semi Truck Tyres (Z-T0072)
• Armageddon Complete Cab (FMX) (VVV-S0177)
• BigDog 1/14 Dual Axle Scale Heavy Equipment Trailer (Z-H0015)
• Stainless Steel Hydraulic Tank (VVV-S0243)

Replacement Parts

• Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
• Armageddon Complete Painted Cab (FMX) (VVV-S0178)
• 1/14 Exhaust and Mount System for Euro Style (VVV-S0174)
• 1/14 Urea Tank and Mount System for Euro Style Trucks (VVV-S0176)

Instruction Manual

Instruction manual available from the manufacturer.

Notes

• Turn on the transmitter before starting the ESC
• ESC supports XT60 connector and does not have LiPo cut-off
• Do not use larger than a 3S battery (11.1V)
• Some components may arrive pre-assembled; check and tighten hardware as needed
• Use quality hex drivers to avoid stripping screw heads
• Apply thread lock when using metal screws into metal parts, sparingly
• Do not over-tighten screws
• This product is intended for experienced R/C users
• Speaker included; sound unit sold separately (VVV-S0074)
