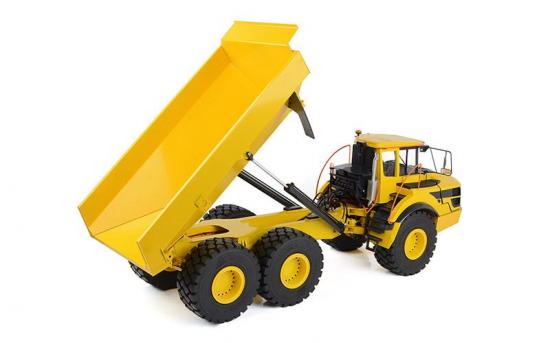

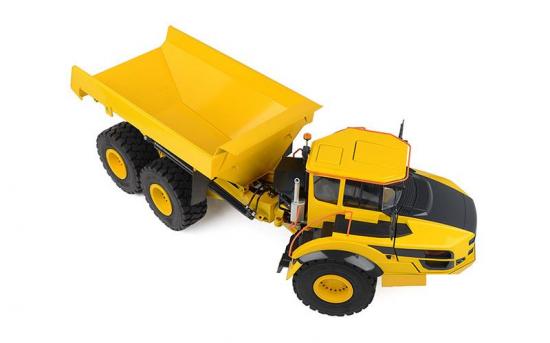

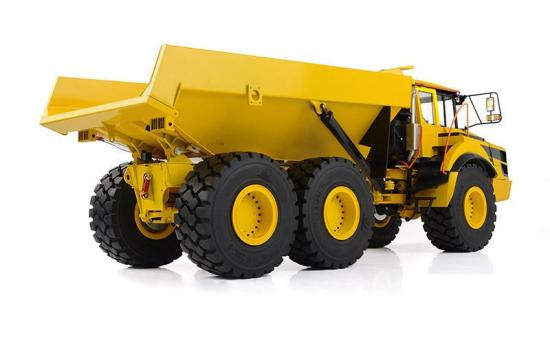

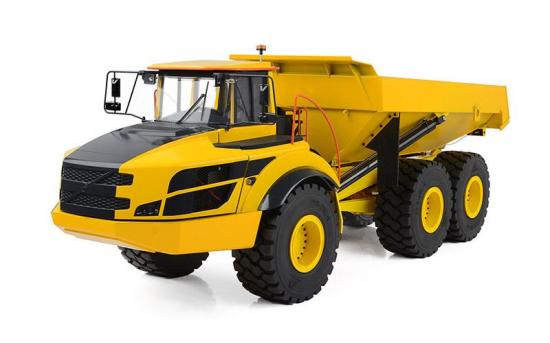

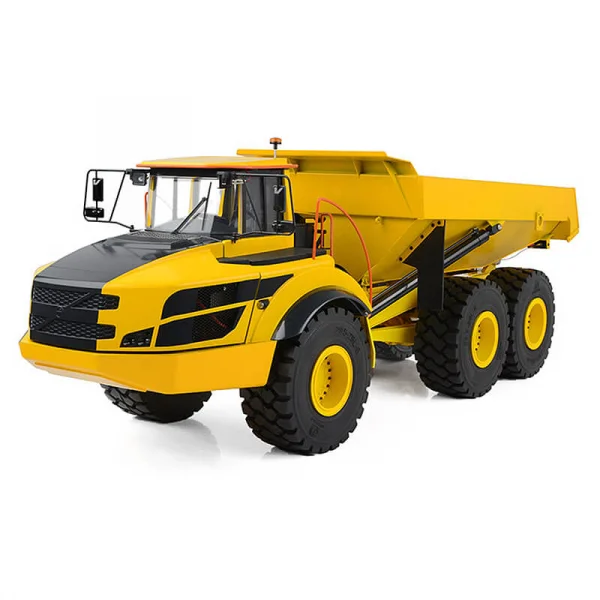

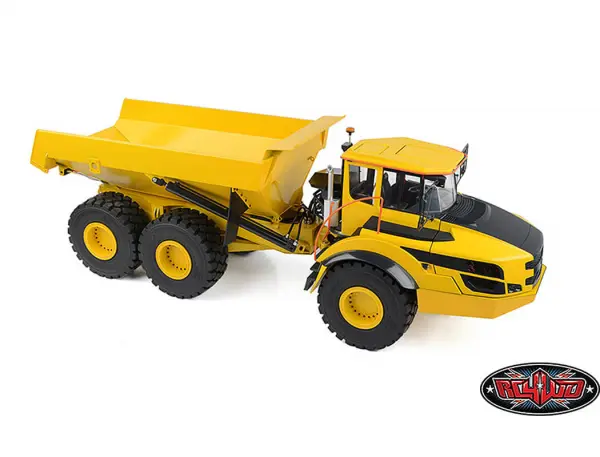

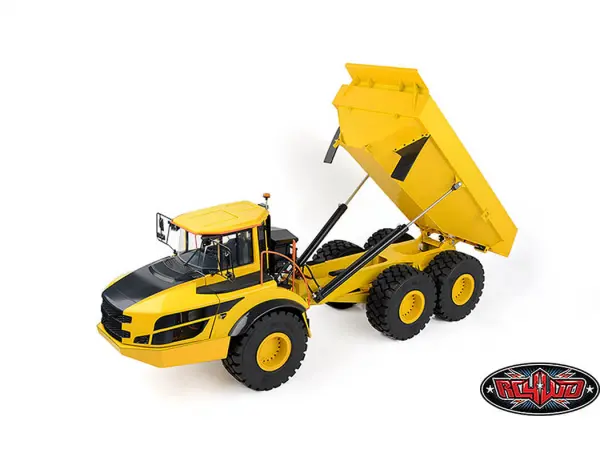

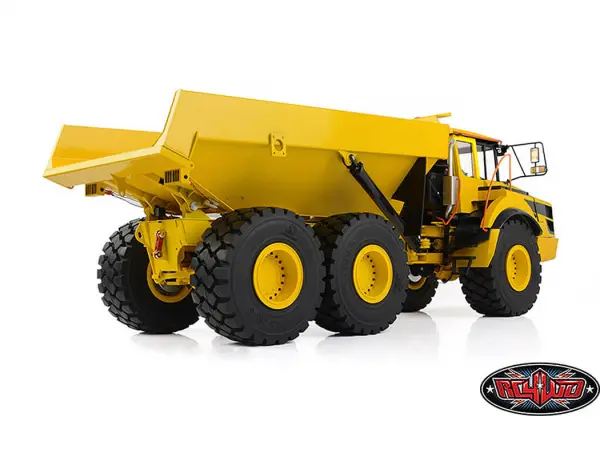

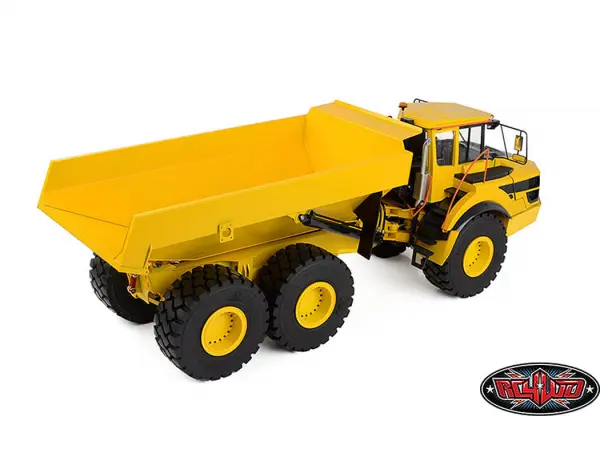

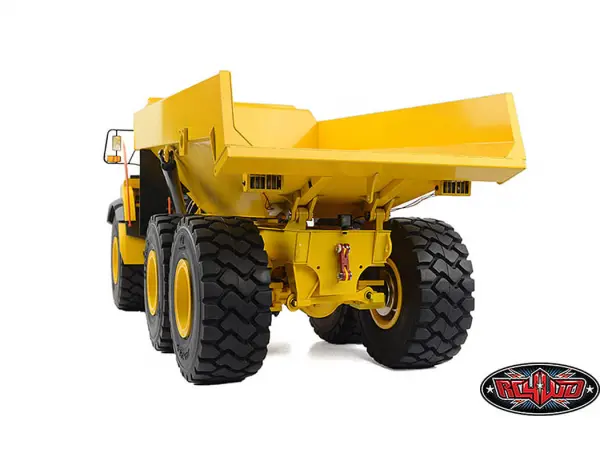

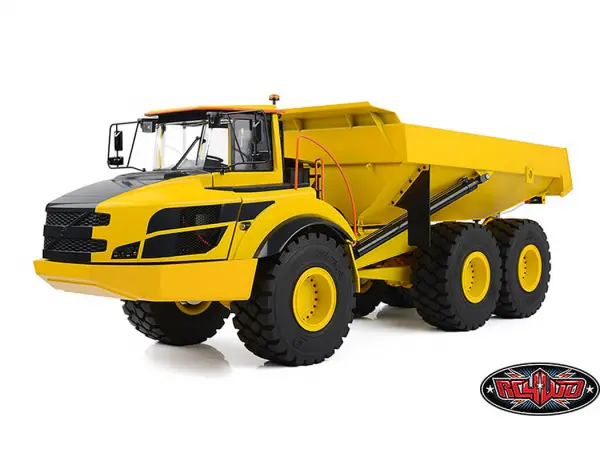

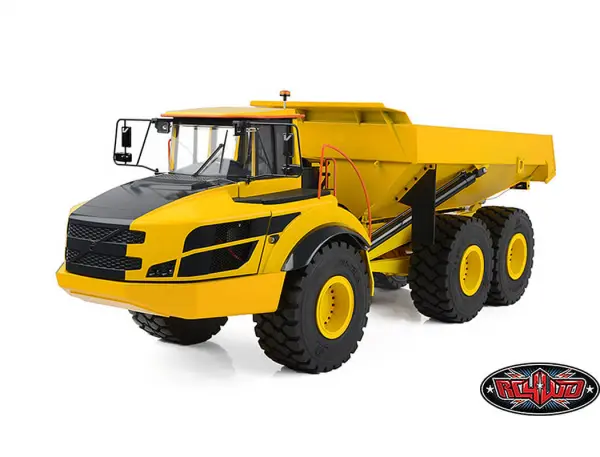

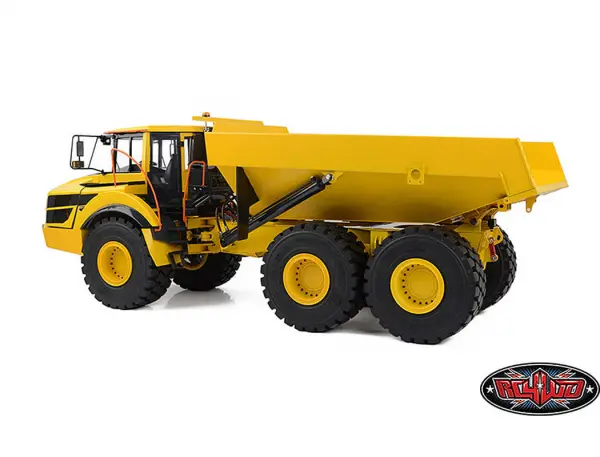

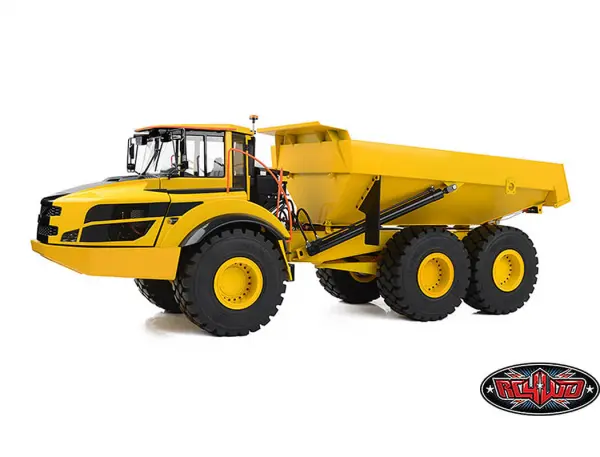

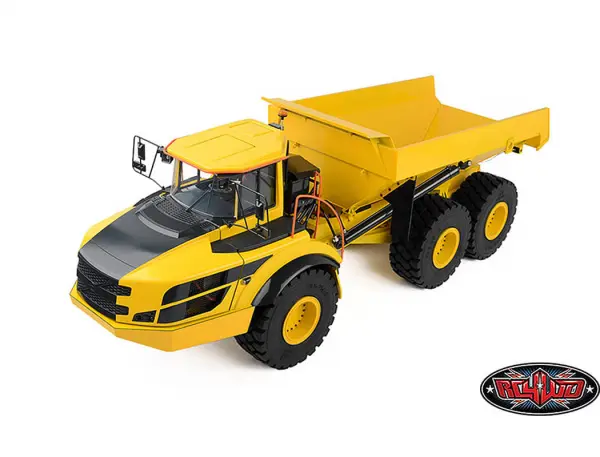

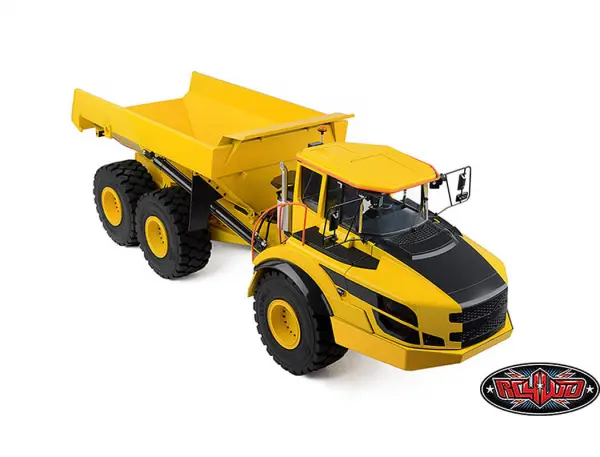

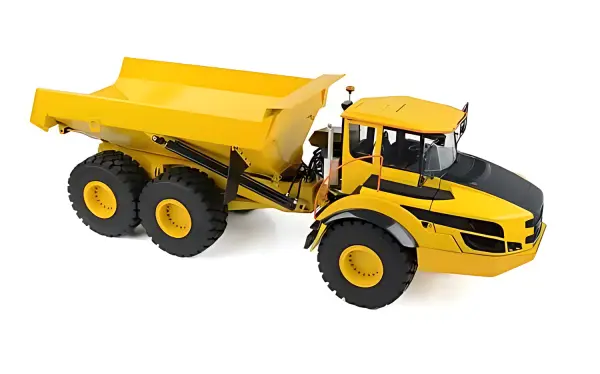

RC4WD 1:14 E450C Articulating Dump Truck (RTR) RC4WD

The Armageddon is one of the most powerful R/C Hydraulic Dump Trucks available today. It is highly detailed and based the European style dump trucks. Engineered specifically for the tough demands of transporting gravel, sand, asphalt, snow, wood chips or rocks. Created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! Be ready for the massive power through the 270KV high speed output brushless system.

• CNC Machined Metal parts
• Molded Steel bucket
• Articulated Steering Design
• 10 Channel 2.4Ghz Radio
• Scale Front Cab (Compatible with Driving Figure)
• Powder Coated in Yellow
• Massive 29.5-25L-5 Tires
• Reliable Hydraulic Valve and Adjustable Pump
• Optimized Steel Hydraulic System
• Brushless System (Hydraulic)
• 40A Brushless ESC with BEC
• 930Kv Brushless Monster Torque Motor
• 2 Speed Full Metal Transmission (1:64 and 1:16 Gear Ratio)
• Remote Lockable Front and Rear Axles (Locking Differential)
• Scale Fully Lighting System
• Payload Capacity: 25kg / 55lbs
• Cylinder Maximum Thrust: 40kg / 88.1lbs
• Operating oil pressure: 20Bar, 290psi

Scale: 1:14
Length: 32.2in / 818mm
Width: 9.54in / 242.5mm
Height: 10.9in / 278mm
Net Weight: 12kg / 26.4lbs

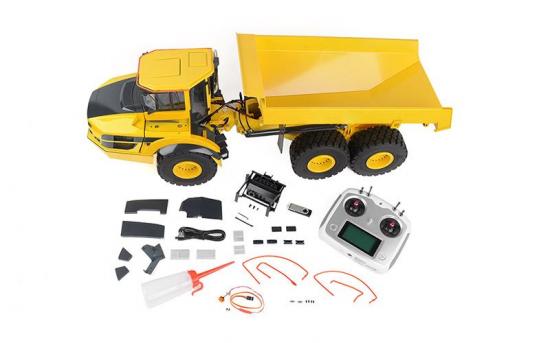

• 1x 1/14 E450C Articulating Dump Truck (RTR)

• 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 135mm in length, 43mm in width, and 33mm in height)
• Compatible Battery Charger
• 4 x AA Batteries for Radio
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

• You need to hold the truck firmly and take it out of the box horizontally to prevent the front compartment from rotating and damaging the whole truck.
• Using 2S, half speed at 6.5V and shut off at 6V. Using 3S, half speed at 9.75V and shut off at 9V. Do not use more than 3S battery. (11.1 volt(s))

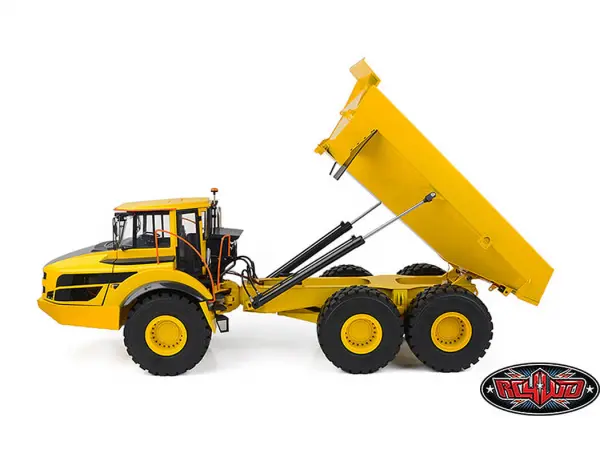

• Once the hydraulic cylinder (dump) reaches its maximum height, do not push further.
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• Use threadlock sparingly.
• Do not over tighten screws, otherwise, you may strip the thread.
• This product is for experienced R/C users. Not recommended if you just started with R/C.
• Please refer to the product manual for oil filling method.

• Brand: RC4WD
• Part No: VV-JD00067
• Barcode: 639302614709
