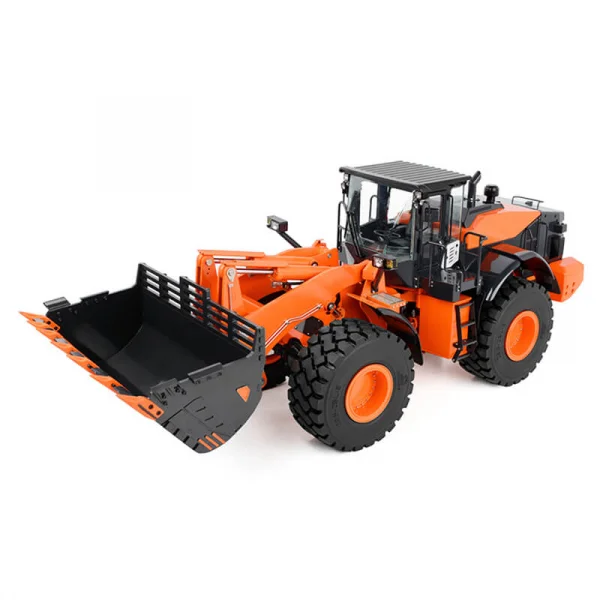

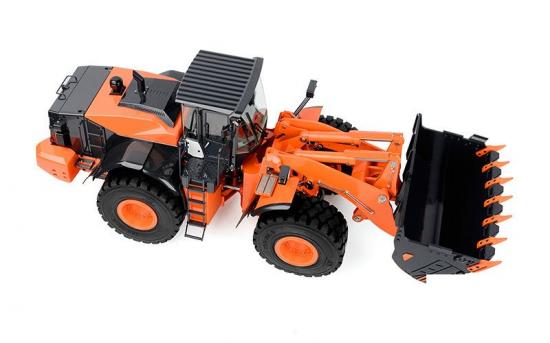

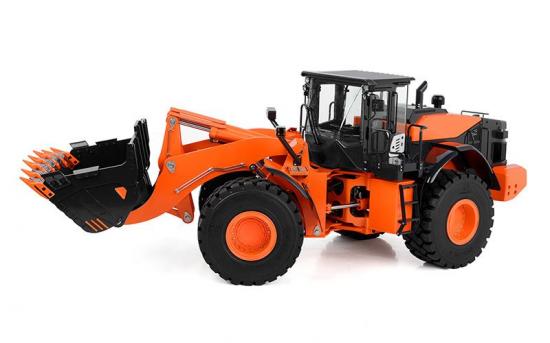

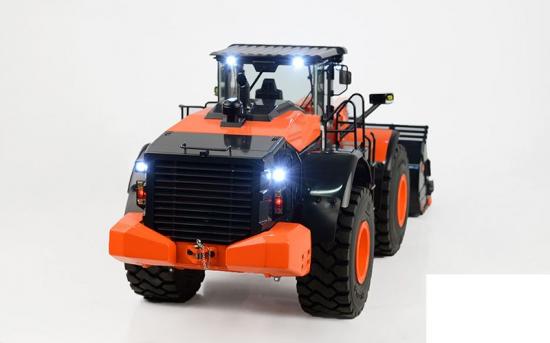

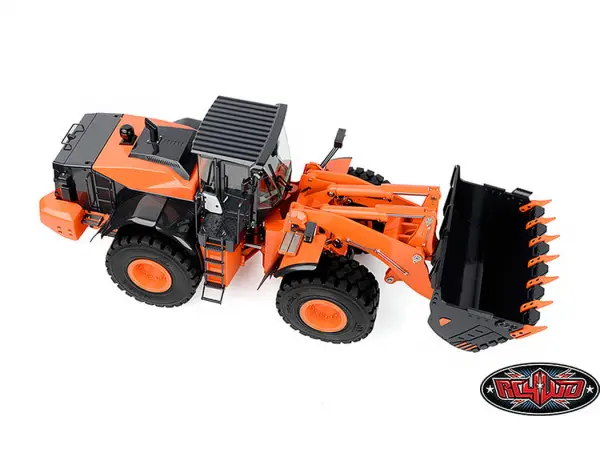

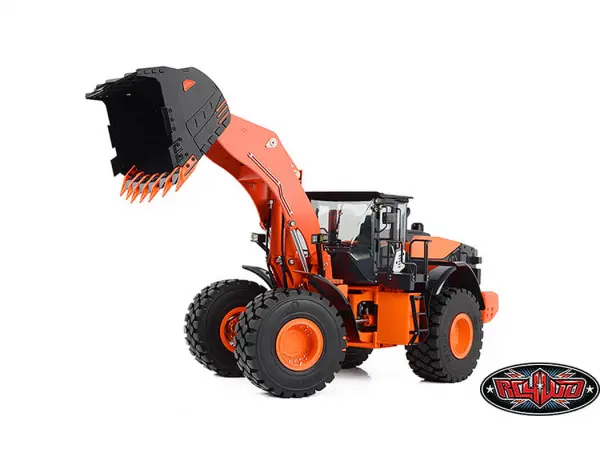

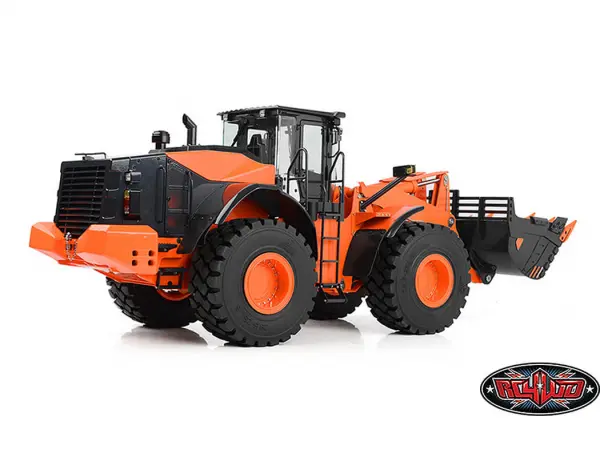

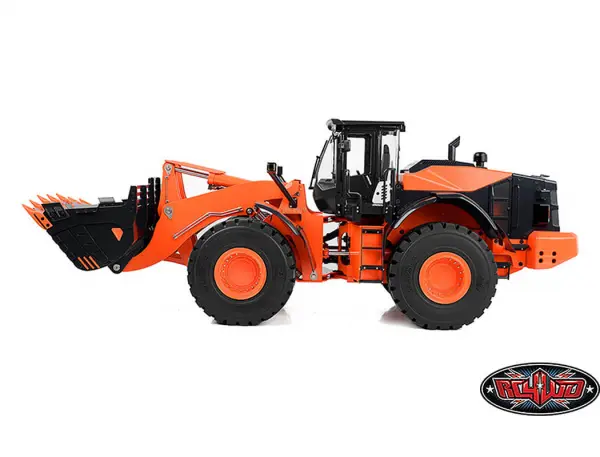

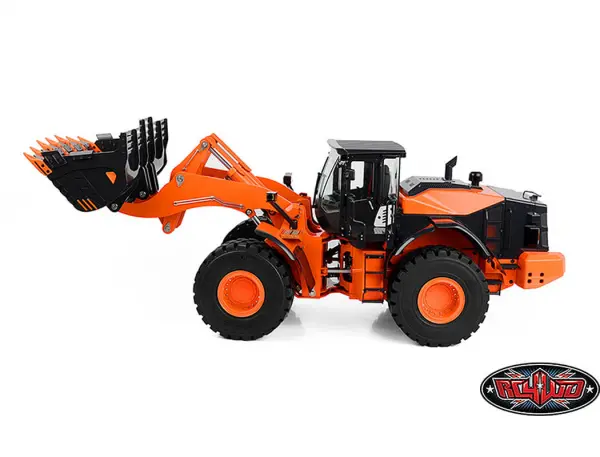

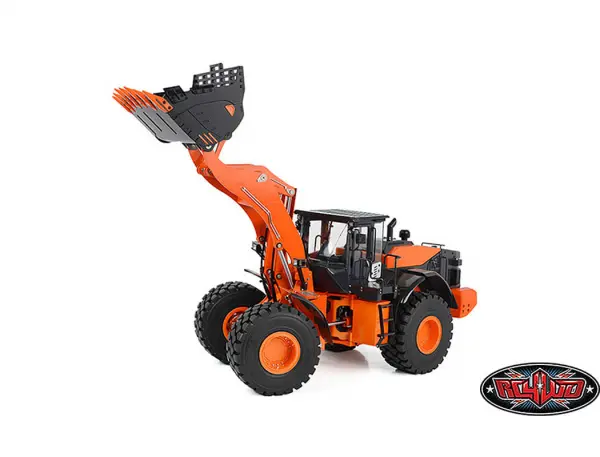

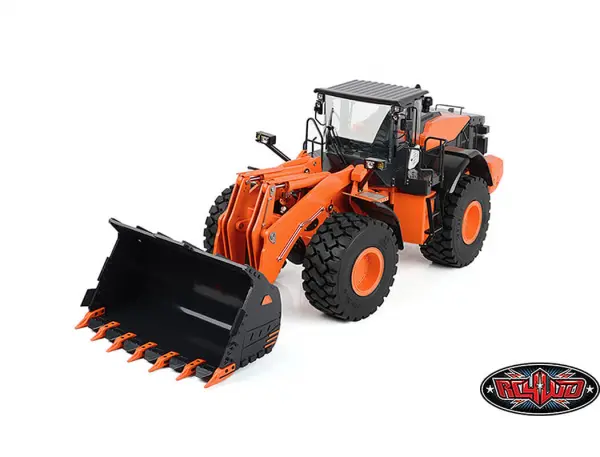

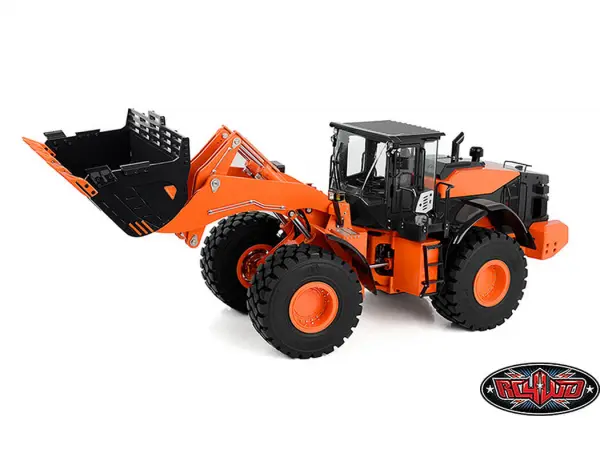

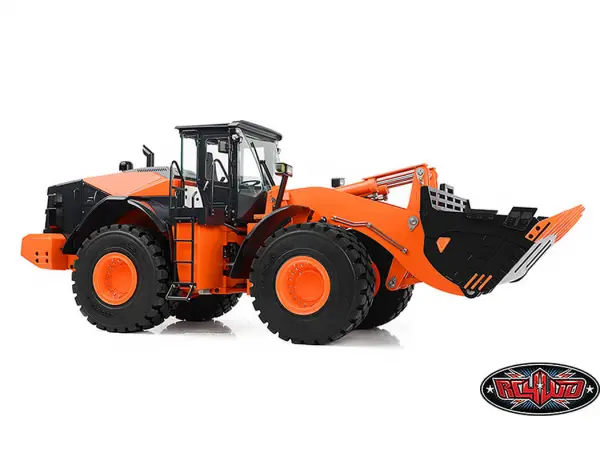

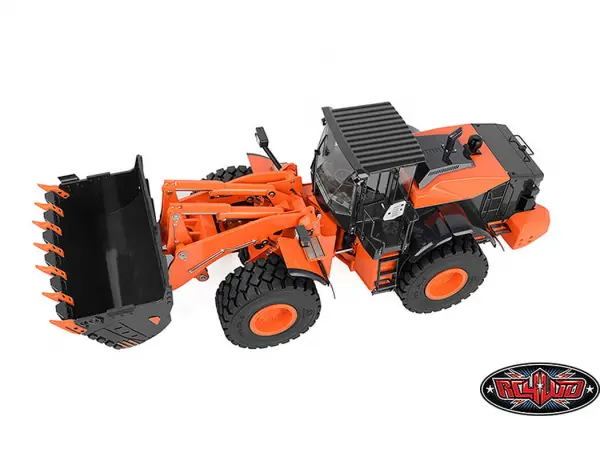

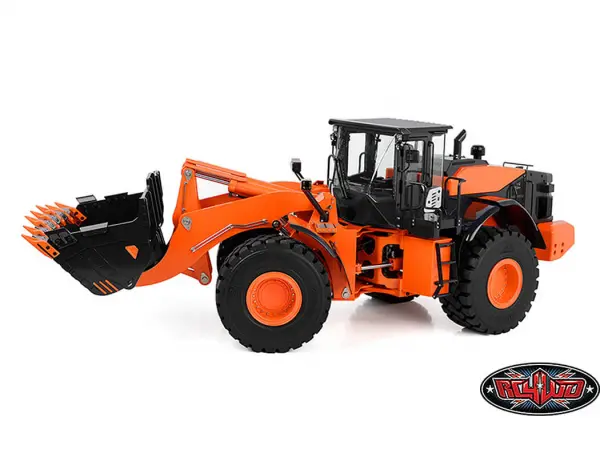

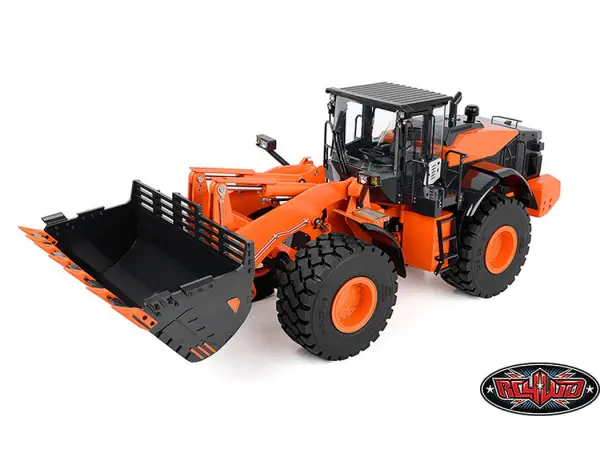

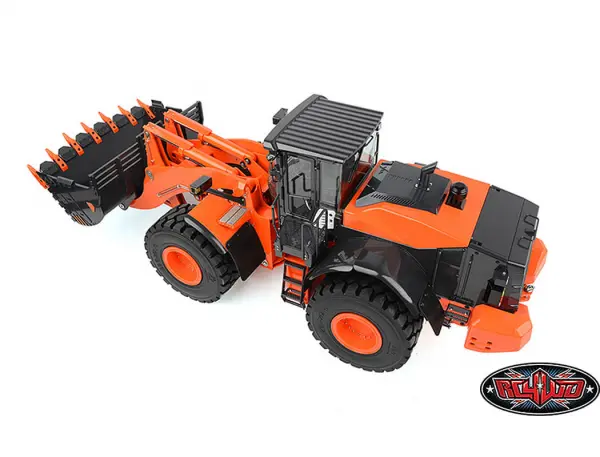

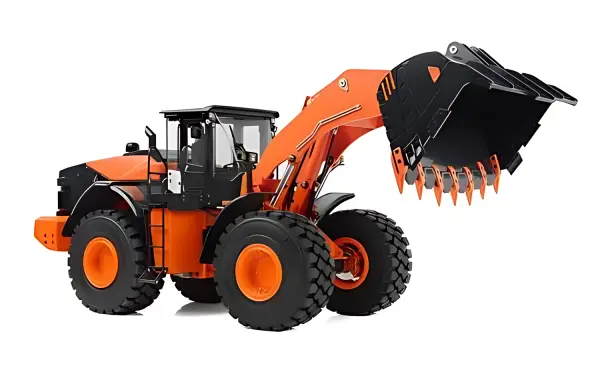

RC4WD 1:14 Scale Earth Mover ZW370 Hydraulic Wheel Loader RC4WD

The RC4WD 1:14 Scale Earth Mover ZW370 Hydraulic Wheel Loader (VV-JD00069) is a professionally pre-assembled, hobby-grade construction model built around CNC machined metal components and a moulded steel bucket. Its optimised hydraulic system is driven by a brushless pump motor and managed via a 10-channel 2.4GHz radio for precise, multi-function control.

Notice: This product is intended for experienced RC hobbyists and is not recommended for anyone under 16 years of age.

Key Features

• CNC machined metal parts with powder-coated orange finish
• Moulded steel bucket
• 10-channel 2.4GHz radio system
• Optimised steel hydraulic system with reliable valve and adjustable pump
• High pressure nylon hoses (OD 4.5mm, ID 2.5mm)
• Brushless hydraulic system with 270KV monster torque motor
• 40A brushless ESC with BEC and LiPo cutoff
• Wheel with planetary gearbox built-in
• 2-speed full metal transmission (1:64 and 1:16)
• Realistic full metal axles

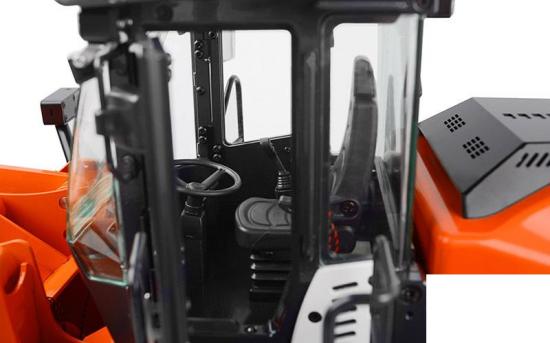

• Scale operator station (can fit a driving figure)
• 137mm model special tyres
• Realistic non functional disc brake
• Run time: up to 30 minutes (with 5000mAh battery)

Specifications

• Scale: 1:14
• Length: 710mm
• Width: 250mm
• Height: 268mm
• Wheelbase: 252mm

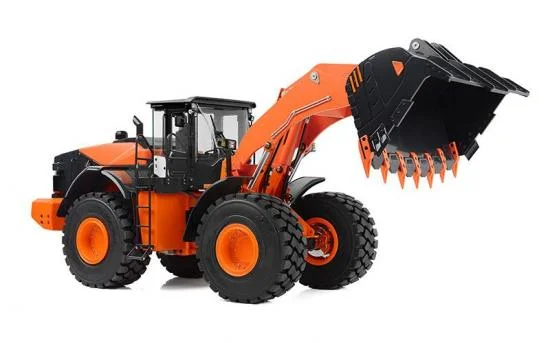

• Maximum bucket height: 461mm
• Operating oil pressure: 3.50 bar (50.75 psi)
• Maximum bucket up/down angle: 46–64 degrees
• Maximum bucket left/right angle: 38 degrees
• Maximum bucket force: 40kg (88lbs)
• Dead weight: 16.5kg (36.3lbs)
• Total mass load: 32kg (70lbs)
• Theoretical rise (boom lift): 15kg; theoretical traction: 30kg
• Hydraulic pump: flow 0.8 L/min; rated pressure 2.5 MPa; ultimate pressure 5 MPa

Upgrades and Improvements

The valve and driveshaft have been upgraded versus the previous model (VV-JD00031), delivering more dynamic performance with faster front and rear movements, plus an oversized joint for improved durability. The latest constant angular speed double transmission shaft provides smoother power delivery.

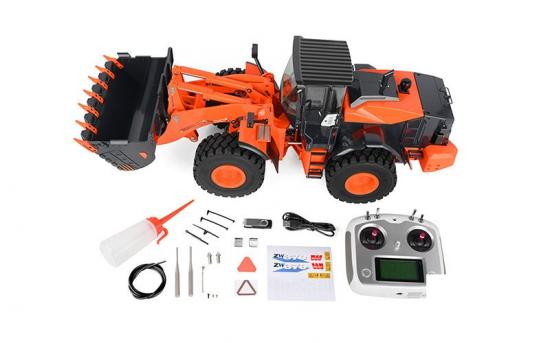

What’s Included

• 1x 1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader

Required Parts

• 5000mAh 11.1V 50C 3S1P LiPo battery pack with XT60 plug (battery size must be no bigger than 140mm L x 45mm W x 25mm H)
• Compatible battery charger
• 4x AA batteries for radio (Z-S1718)
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Instruction Manual

Instruction manual available to download.

Notes

• Professionally pre-assembled; check and secure all hardware after shipping. Thread lock recommended on metal-to-metal fasteners.
• Use quality hex drivers to avoid stripping screw heads.
• ESC supports bullet connector.
• Battery size should be within 140 x 45 x 25mm (L x W x H).
• This JDM product ships in carton packaging.
• Manufactured by JDCustoms with 30 days limited warranty.
