RC4WD Baja Designs Arc Light Bar for Chevrolet Blazer

Bring scale lighting to your RC build with the RC4WD Baja Designs Arc Light Bar for Chevrolet Blazer, part number Z-E0115. Developed with Baja Designs and finished with a cast moulded housing, this bar delivers super-bright illumination and connects to an extra receiver channel via a standard receiver plug.

Supplied with reversible, adjustable L-brackets and mounting hardware, it offers a tidy fit for a range of applications within its suggested compatibility.

Features and Specifications

• Cast moulded housing
• Reversible "L" brackets to fit many applications
• Adjustable "L" brackets for rotating light
• 27 individual LED bulbs
• Super bright lighting
• Vented on side to dissipate heat
• Capable of 11.1 Volts and 7.4 Volts
• Standard receiver plug
• Connects to extra channel on receiver
• 2mm mounting holes
• Overall length: 6.94in / 176.3mm
• Light bar width: 6.23in / 158.3mm
• Overall height: 0.57in / 14.5mm
• Light bar height: 0.31in / 8.0mm
• Weight: 1.14oz / 32.4g

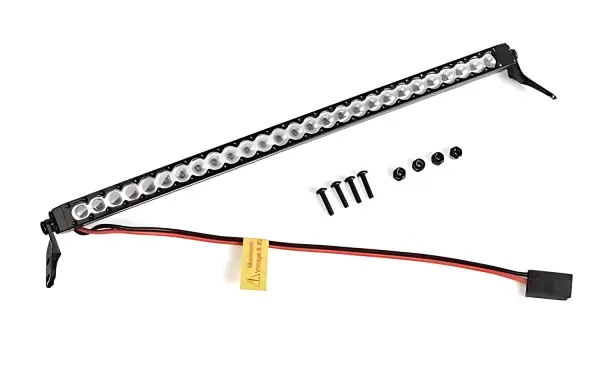

What’s Included

• 1x Baja Designs Arc Light Bar for Chevrolet Blazer
• 4x M2 x 8mm steel button head cap screws (black)
• 4x Nylock nuts M2 (black)
• 1x Baja Designs decal sheet

Replacement Hardware

• Steel Button Head Cap Screws M2 x 6mm (Z-S0933)
• Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)
• Steel Button Head Cap Screws M2 x 8mm (Z-S1800)
• Nylock Nuts M2 (Black) (Z-S0906)

Notes

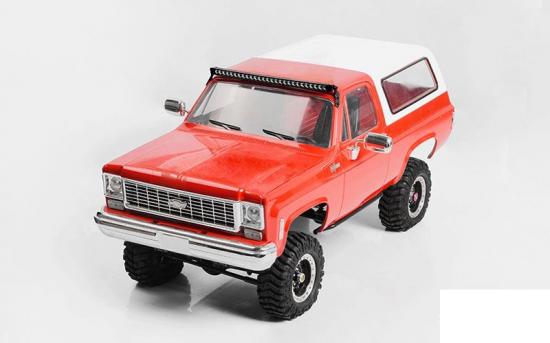

• Suggested compatibility: RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035).
• WARNING: This light comes with a voltage regulator. If you do not use this you will damage the light and void the warranty.
• WARNING: Do not exceed 8.4 Volts to power this light bar. Overpowering the light bar will damage it and will void the warranty.
• Voltage over 11.1V will damage the light bay.
