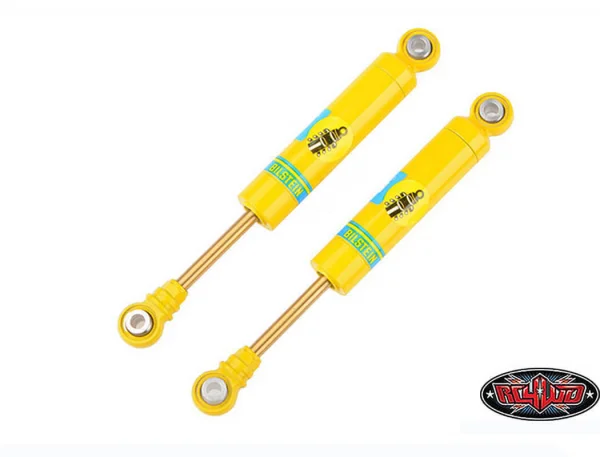

RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm)

The RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm) combine scale appearance with smooth, consistent performance. Officially licensed by Bilstein, these shocks feature RC4WD’s X-Ring technology to reduce contact friction and improve oil flow and retention around the shock shaft. Precision machined from billet aluminium with a yellow powder-coated finish and an internal spring design, they are supplied as a pair under part number Z-D0044.

Key Features

• Officially licensed by Bilstein
• X-Ring technology for reduced friction and improved oil flow/retention
• Machined billet aluminium construction
• Yellow powder coated finish
• Internal spring design

Specifications

• Hole to hole (compressed): 2.40 in / 61 mm
• Hole to hole (uncompressed): 3.15 in / 80 mm
• Overall length: 3.51 in / 89.2 mm
• Travel length: 0.74 in / 19.0 mm
• Shock body OD: 0.39 in / 10 mm
• Shaft OD: 0.11 in / 3.0 mm
• Weight (each): 0.38 oz / 10.9 g

What’s Included

• 2 x RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm)
• 1 x Bilstein decal sheet
