RC4WD Internal Springs for ARB 70mm Shocks

RC4WD Internal Springs for ARB 70mm Shocks (Z-S1177) provide optional rates to fine-tune damping across many applications. The set includes four clearly colour-marked rates and supplies enough springs for four shocks.

Features & Specs

• Optional spring rates to adjust damping
• Outer Diameter: 6.3mm
• Length: 26mm
• Inner Diameter: 4.1mm
• Weight: 0.07oz / 2g
• Enough for 4 shocks

What’s Included

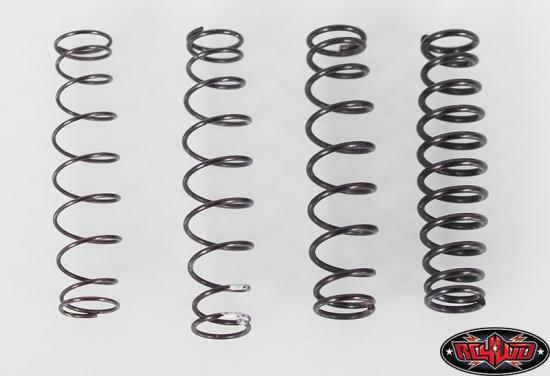

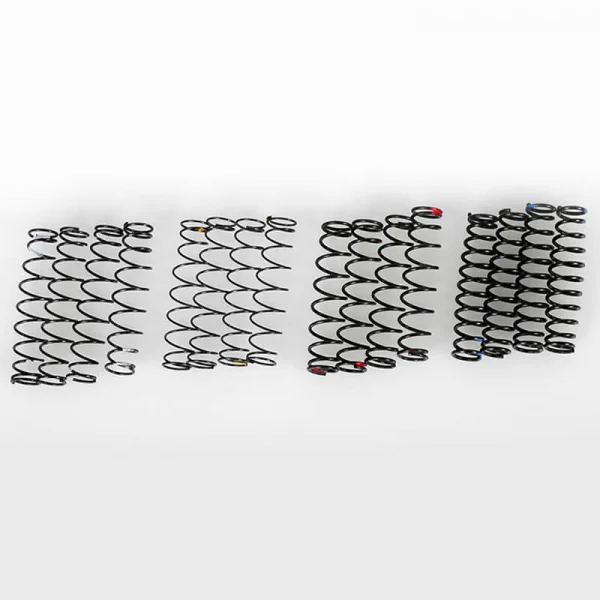

• 4x 70mm Shock Spring (1.9 Spring Rate "Blue")
• 4x 70mm Shock Spring (1.5 Spring Rate "Red")
• 4x 70mm Shock Spring (0.5 Spring Rate "White")
• 4x 70mm Shock Spring (0.3 Spring Rate "Yellow")

Suggested Compatibility

• ARB Old Man Emu 70mm shocks, including RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)

Notes

• Stock shock spring rate is 0.7
• Each spring has a small colour marking on the bottom to determine the spring rate
