RC4WD ION Style 71 1.9" Beadlock Wheels

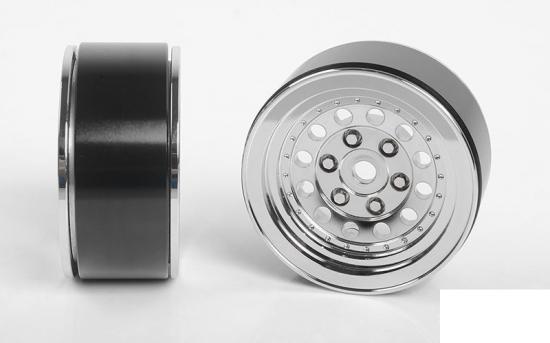

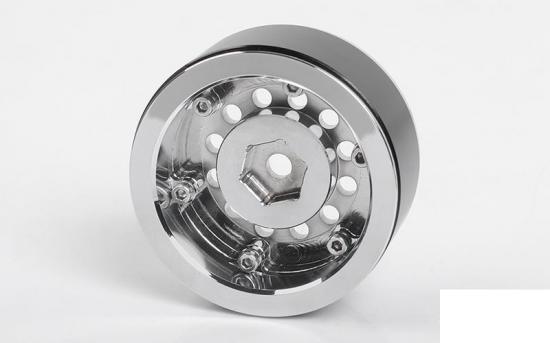

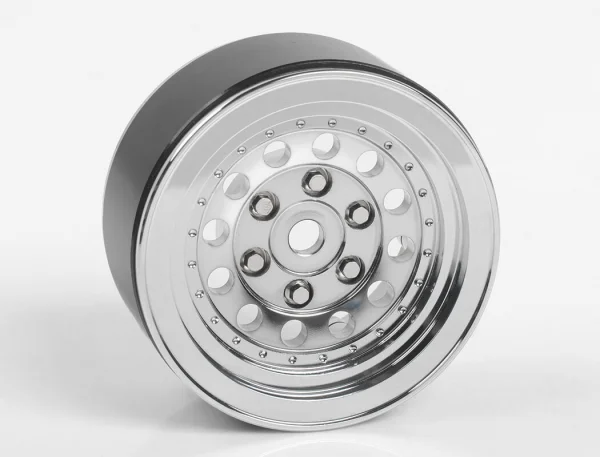

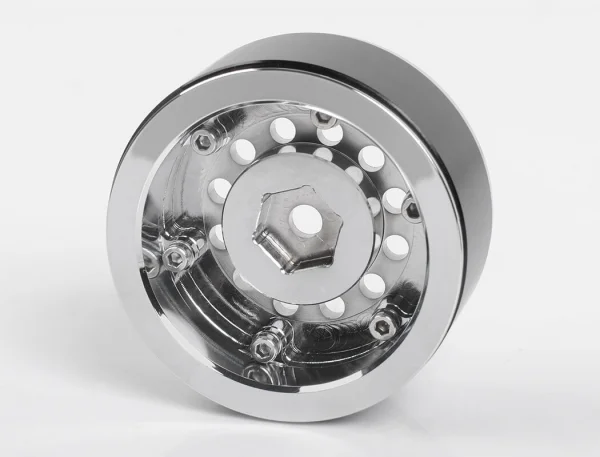

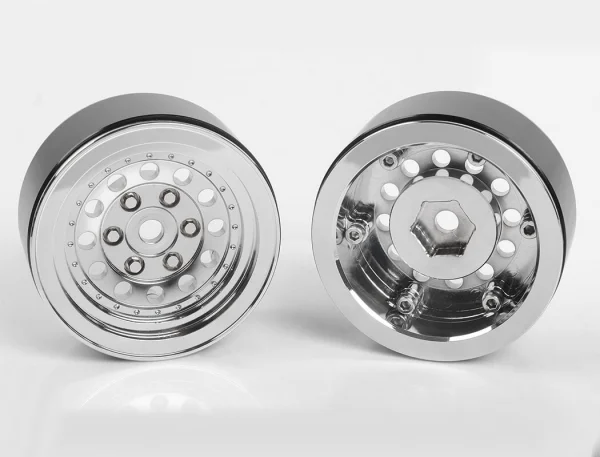

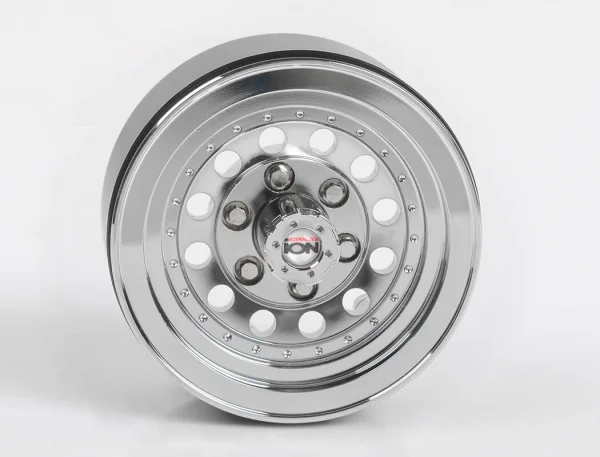

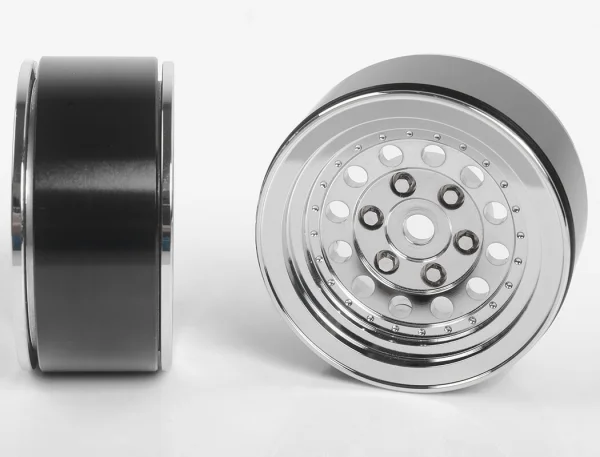

Give a classic look to your scale RC truck by mounting the first Officially Licensed aluminum RC wheel from ION.  These RC4WD ION Style 71 1.9" Beadlock Wheels feature a slick chrome design with the look that you might find on a truck in the 80's, only in 1/10th scale. As always, you can expect that we went the extra mile to have as much detail as possible, including installing the scale ION Alloy emblem sticker inside the wheel hub to add to the style on these RC wheels. We designed this internal beadlock wheel to mount using 6 Socket Head Cap Screws M2.5 X 8mm in the back of the wheels. This makes the wheel look great from the front and back by hiding the screws that hold it together. The front of the wheel has 6 Miniature Scale Hex Bolts (M2.5 X 4mm) to mimic lug bolts, however, these are not functional as the 12mm mounting hub is machined into the wheels. To finish it off, these also have a scale hub with a 5mm nut inside it along with a tool to help mount them to the truck.
Specifications:

• CNC Machined
• Billet Aluminum
• Fits Standard 12mm Hex
• Wheel Size: 1.9"
• OD: 2.14in / 54.0mm
• Width: 1.02in / 26.0mm
• Center Hole OD: 0.20in / 5.2mm
• Positive Offset: 0.05in / 1.7mm
• Each Weight: 2.40oz / 68.0g

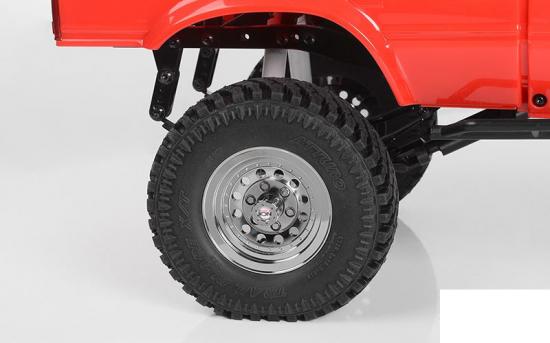

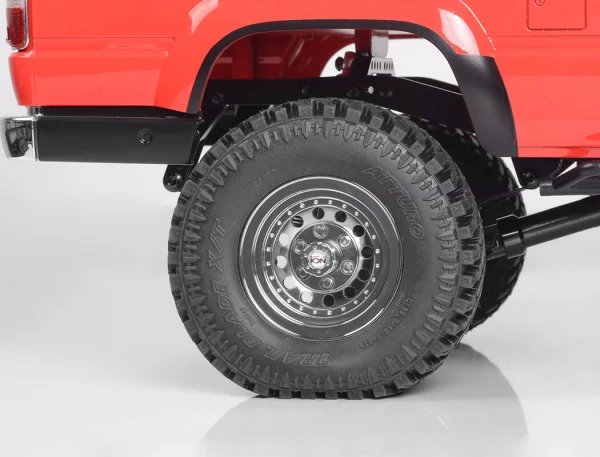

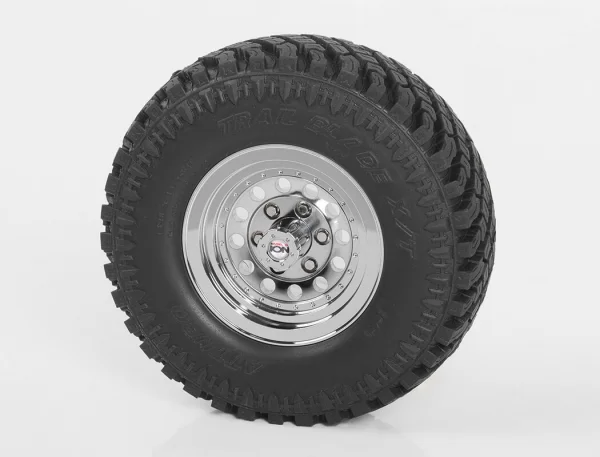

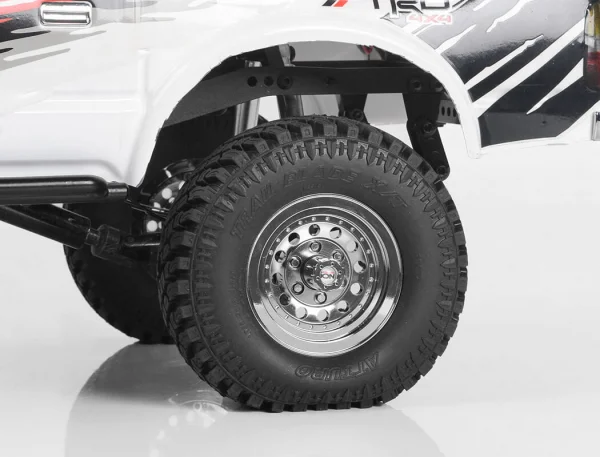

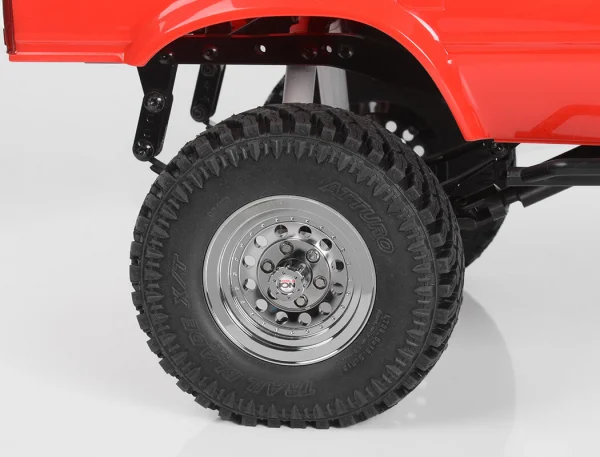

Shown installed with RC4WD Atturo Trail Blade X/T 1.9" Scale Tires (Z-T0154) for example (Not Included)

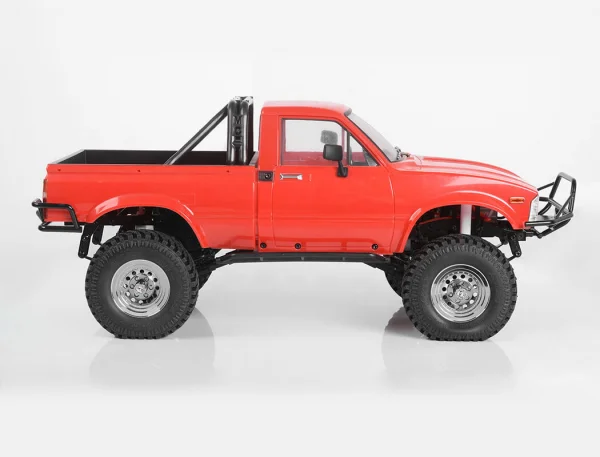

Shown installed on RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034) with RC4WD Atturo Trail Blade X/T 1.9" Scale Tires (Z-T0154) for example (Not Included)

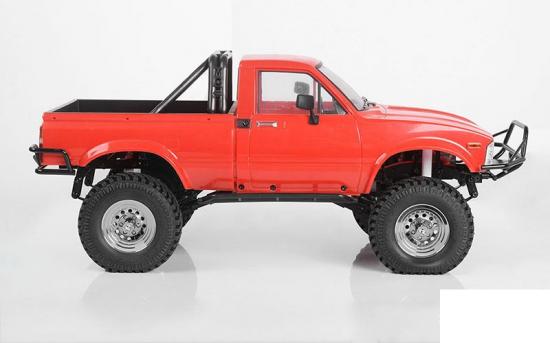

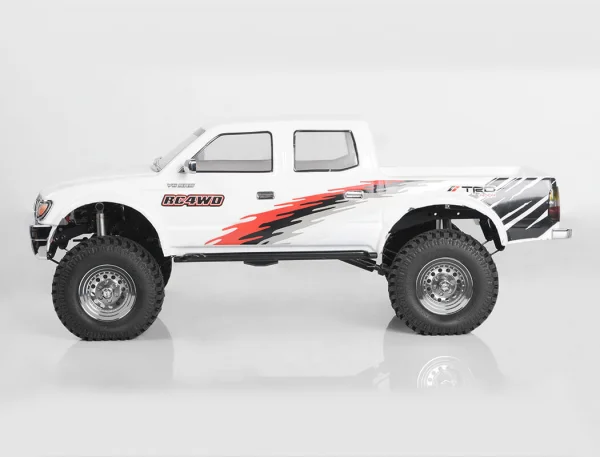

Shown installed on RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059) with RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3" (Z-B0169) for example (Not Included)

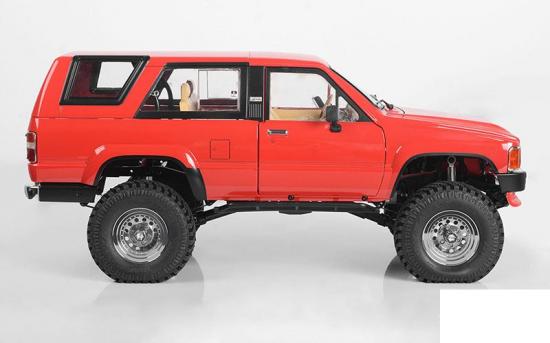

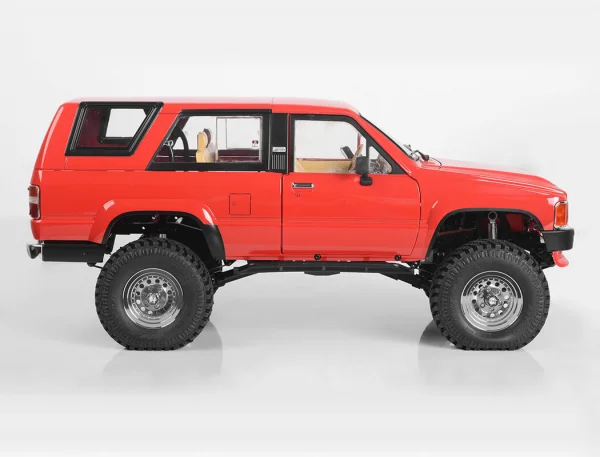

Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) with RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167) for example (Not Included)
Click image below to enlarge photo.
What's Included:

• 4x RC4WD ION Style 71 1.9" Beadlock Wheels
• 4x Locking Hubs
• 1x Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex)
• 1x Locking Hub Installation Tool
• 1x ION Decal Sheet

Replacement Hardware:

• RC4WD Miniature Scale Hex Bolts (M2.5 X 4mm) (Silver) (Z-S1563)
• Socket Head Cap Screws M2.5 X 8mm (Z-S0828)
• Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)

Notes:

• Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
• Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
• Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
• Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
• Fits Axial SCX10
• Fits Axial SCX10 II
• Fits Vaterra Ascender
• Fits Axial Wraith
• Fits HPI Venture FJ Cruiser
• Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
• Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.

ION is a registered trademark of the ION Wheel company. The ION logo is property of ION Wheels and used under license to RC4WD.

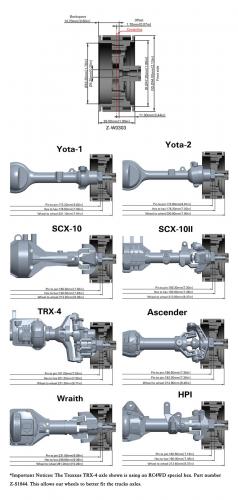

Click here to see our full line of wheel specification comparison list.

Key Info:

• Brand: RC4WD
• Part No: Z-W0303
• Barcode: 639302598825
