RC4WD K44 Ultimate Scale Cast Front Axle (Z-A0101)
Brand: RC4WD
Part No: Z-A0101
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (17)
RC4WD Gelande II RTR - 2015 Land Rover Defender D90
RC4WD Gelande II RTR Truck w/Cruiser Body Set RC4WD
RC4WD Gelande II Truck Kit
RC4WD Gelande II Truck Kit - 2015 Land Rover Defender D90
RC4WD Gelande II Truck Kit With Cruiser Body Set 2025
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Black
RC4WD Trail Finder 2 LWB RTR - Chevrolet K10 Hardbody Red
RC4WD Trail Finder 2 RTR with 1985 Toyota 4Runner Hard Body Set - Red
RC4WD Trail Finder 2 RTR With 1985 Toyota Pickup Hard Body Set
RC4WD Trail Finder 2 Truck Kit SWB
RC4WD Trail Finder 2 Truck Kit With 1982 Toyota Pickup Body Set
RC4WD Trail Finder 2 Truck Scale Builders Kit
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Blue
RC4WD Trail Finder2 RTR With 1982 Toyota Pickup Hard Body Red
RC4WD Trailfinder 2 RTR - Chevrolet Blazer Body Midnight Edition
RC4WD Trailfinder 2 RTR LWB With Chevrolet K10 Scottsdale Body
RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set RC4WD
Description

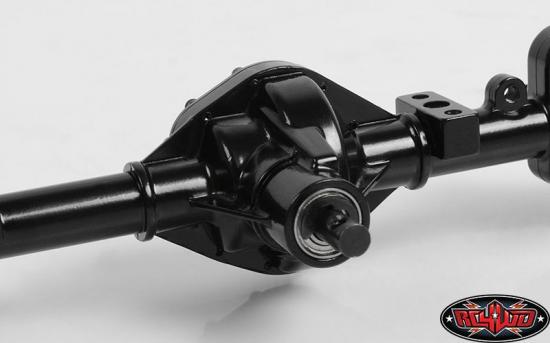

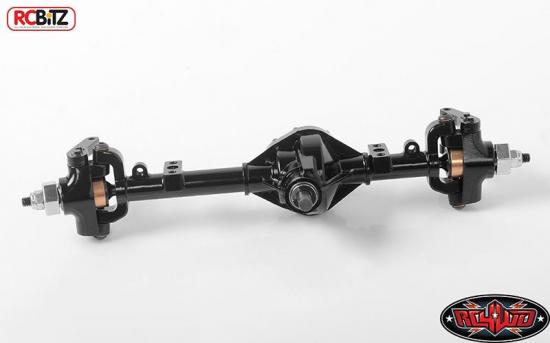

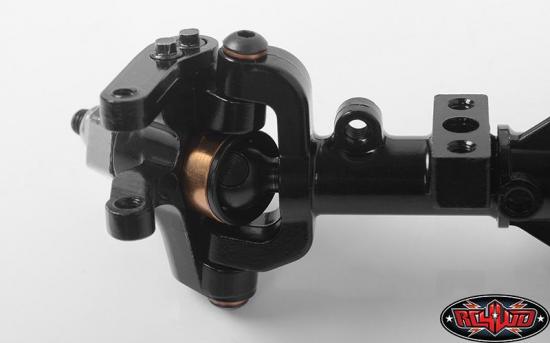

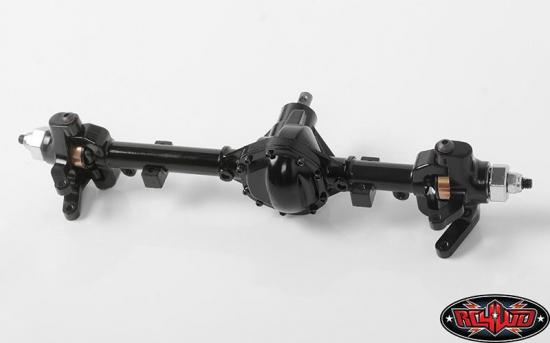

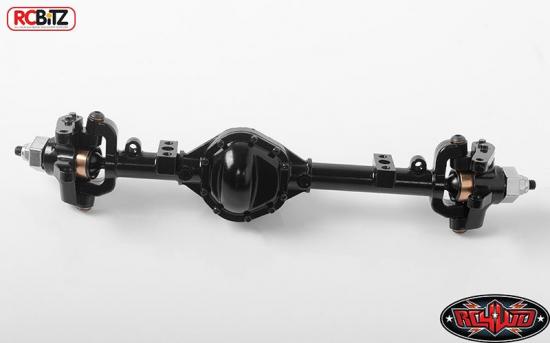

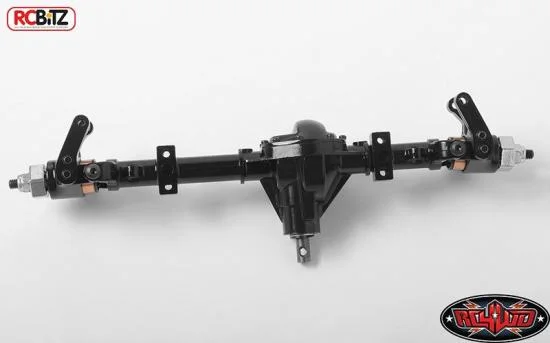

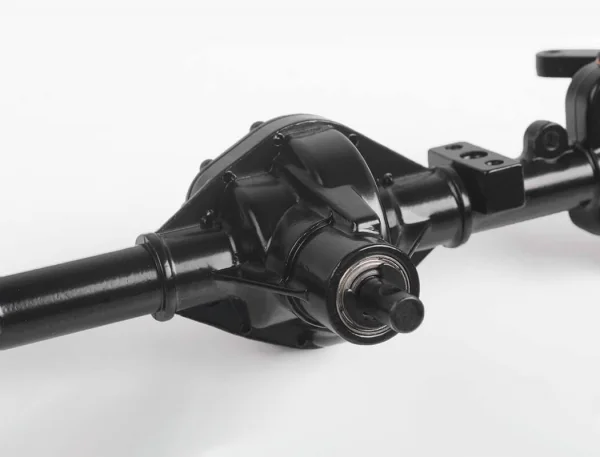

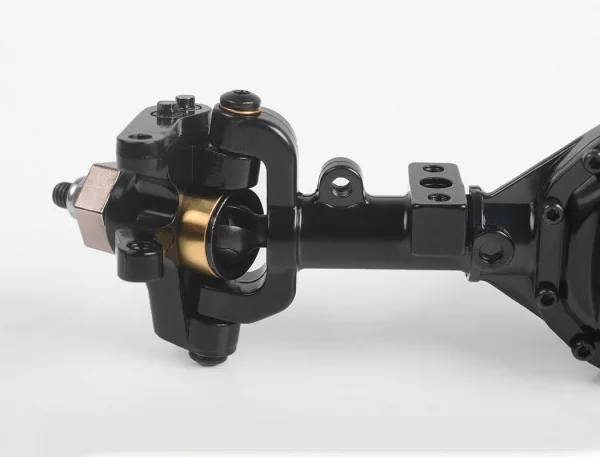

The RC4WD K44 Ultimate Scale Cast Front Axle (Z-A0101) is engineered for true-to-life detail and durability on 1/10 scale trucks. Developed with input from leading scale builders, it features compact axle tubes, high-steer knuckles and a robust die-cast zinc alloy housing with a black electrophorese finish for an authentic look.
With 12mm wheel hexes, a 5mm output shaft and a 2.67:1 internal gear ratio, the K44 balances scale appearance with dependable performance. Precise dimensions and a removable diff cover make it a solid choice for detailed builds and trail rigs alike.
Specifications
- Die Cast Zinc Alloy Housing
- Black Electrophorese
- Removable Diff Cover
- Hex Thickness: 6mm
- 12mm Wheel Hex
- 5mm Axle Output Shaft
- Gear Ratio: 2.67 : 1
- Designed and Manufactured by RC4WD
- Designed for 1/10 Trucks
- Hex to Hex Width: 6.97in / 177mm
- Pin to Pin Width: 6.46in / 164mm
- Pumpkin Height: 1.37in / 34.86mm
- Weight: 8.32oz / 236g
What's Included
- 1x K44 Ultimate Scale Cast Front Axle
Required Parts
- K44 Cast Steering Link Set (Z-S1685)
Replacement Hardware
- 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
- 4x M3 x 8mm BHCS (Black) (Z-S0652)
- 2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
- 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
- 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
- 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
- 2x Nylock Nuts M4 (Silver) (Z-S1265)
- 1x M4 E-clip (Black) (Z-S0919)
Optional Parts
- Ultimate Axle 4 Link Mount (Z-S0133)
- RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
- Helical Gear Set for 1/10 Yota Axle (Z-G0059)
- The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
- RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
- RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
- XVD for Cast K44 Front Axle (Z-S1864)
Rear Axle Option
- K44 Ultimate Scale Cast Rear Axle (Z-A0096)
Suggested Compatibility
- Gelande II D110 Truck Kit With Hard Body (Z-K0047)
- RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
- Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Secured by Stripe
RC4WD K44 Ultimate Scale Cast Front Axle Manuals & Guides
Specifications
K44 Ultimate Scale Cast Front Axle
This is the best reproduction to date of a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world. With smaller axle tubes, high steer knuckles and many more features never before found on a set of radio control scale axles. RC4WD keeps pushing the limits on scale items and this new axle is a perfect example!
Specifications:
- Die Cast Zinc Alloy Housing
- Black Electrophorese
- Removable Diff Cover
- Hex Thickness: 6mm
- 12mm Wheel Hex
- 5mm Axle Output Shaft
- Gear Ratio: 2.67 : 1
- Designed and Manufactured by RC4WD
- Designed for 1/10 Trucks
- Hex to Hex Width: 6.97in / 177mm
- Pin to Pin Width: 6.46in / 164mm
- Pumpkin Height: 1.37in / 34.86mm
- Weight: 8.32oz / 236g

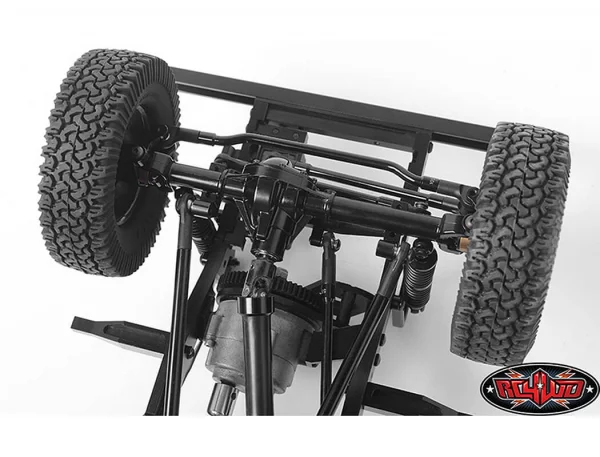

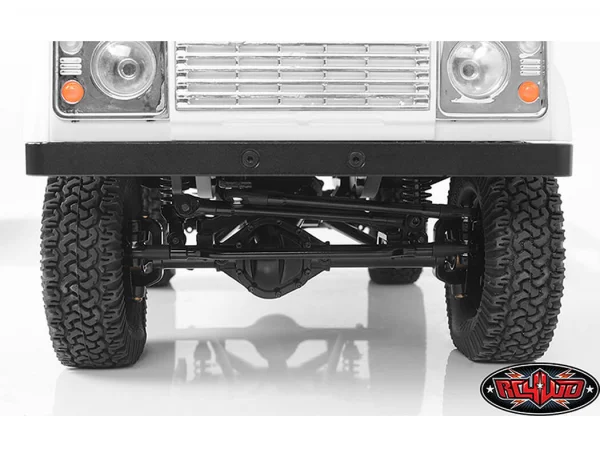

Shown installed with RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001) for example (Not Included)
What's Included:
- 1x K44 Ultimate Scale Cast Front Axle
Rear K44 Axles:
- K44 Ultimate Scale Cast Rear Axle (Z-A0096)
Required Parts:
- K44 Cast Steering Link Set (Z-S1685)
Replacement Hardware:
- 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
- 4x M3 x 8mm BHCS (Black) (Z-S0652)
- 2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
- 6x Metal Shield Bearing 5x11x4mm (Z-S0683)
- 2x Metal Shield Bearing 5x8x2.5mm (Z-S0684)
- 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
- 2x Nylock Nuts M4 (Silver) (Z-S1265)
- 1x M4 E-clip (Black) (Z-S0919)
Optional Parts:
- Ultimate Axle 4 Link Mount (Z-S0133)
- RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
- Helical Gear Set for 1/10 Yota Axle (Z-G0059)
- The Ultimate Scale Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
- RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
- RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
- XVD for Cast K44 Front Axle (Z-S1864)
Notes:
- Fits Gelande II D110 Truck Kit With Hard Body (Z-K0047)
- Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
- Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Key Info:
- Brand: RC4WD
- Part No: Z-A0101
- Barcode: 812115024358
- Fitment: Standard Part
