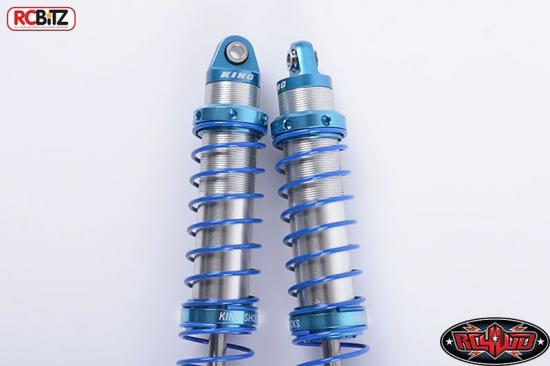

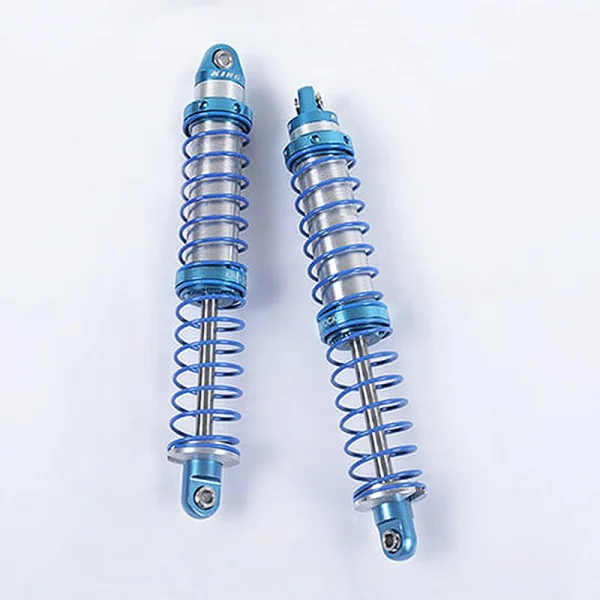

RC4WD King Off-Road Dual Spring Shocks 100mm MEDIUM OD Large Bore RC
Brand: RC4WD
Part No: Z-D0063
£44.64
RRP £46.99
Out Of Stock
Request Stock NotificationRC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) deliver a larger-body, licensed King design for scale crawlers and trail rigs. Precision-machined from billet aluminium with a dual spring layout and steel rod end ball, these shocks are built to handle rocky terrain while adding authentic scale detail with King branding on the top cap and retainer ring.
Features
- Licensed King Off-Road design
- Machined billet aluminium construction
- Dual spring design
- Steel rod end ball
- Larger body diameter (Medium OD / large bore)
- King branding on top and retainer ring
Specifications
- Ball width: 0.25in / 6.3mm
- Ball lip diameter: 0.19in / 4.8mm
- Ball ID: 0.12in / 3mm
- Hole to hole (compressed): 2.75in / 70mm
- Hole to hole (uncompressed): 3.93in / 100mm
- Overall length: 4.3in / 109.3mm
- Travel length: 1.18in / 30mm
- Shock body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring body OD: 0.66in / 16.98mm
- Spring body ID: 0.58in / 14.8mm
- Each weight: 0.91oz / 26g
What’s Included
- 2x RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
- 1x King decal sheet
Optional Parts
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
- RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)
Replacement Parts
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (100mm) (Z-S1279)
- RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
- RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
- RC4WD 100mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1289)
Suggested Compatibility and Notes
- Shown installed on Boyer 1/10 Scale Truggy Kit for example (not included).
- Suggested compatibility includes Boyer 1/10 Scale Truggy RTR (Z-RTR0006) and Kit (front).
- Suggested compatibility includes RC4WD Z-K0001 (front/rear), Z-RTR0019 “Disc” (rear), Z-RTR0024, Z-K0042 “Disc”, and Z-K0049 (rear); may require Z-S0741 and Z-S0058 hardware.
- Has been shown installed on Traxxas TRX-4 and may require both 2mm Black Spacer with M3 hole (Z-S0600) and 3mm Black Spacer with M3 hole (Z-S0806).
- Tip: apply blue (medium) thread lock to the bottom shock shaft rod end before installation.
Secure Payments
Secured by Stripe
RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
This is the all new Licensed Dual Spring Shock to hit the market. Licensed from King Off-Road shocks. These new shocks feature a complete new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks.
Now in a larger body diameter.
Specifications:
- Machined Billet Aluminum
- King on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
- Ball Width: 0.25in / 6.3mm
- Ball Lip Diameter: 0.19in / 4.8mm
- Ball ID: 0.12im / 3mm
- Hole to Hole (Compressed): 2.75in / 70mm
- Hole to Hole (Uncompressed): 3.93in /100mm
- Overall Length: 4.3in / 109.3mm
- Travel Length: 1.18in / 30mm
- Shock Body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring Body OD: 0.66in / 16.98mm
- Spring Body ID: 0.58in / 14.8mm
- Each Weight: 0.91oz / 26g

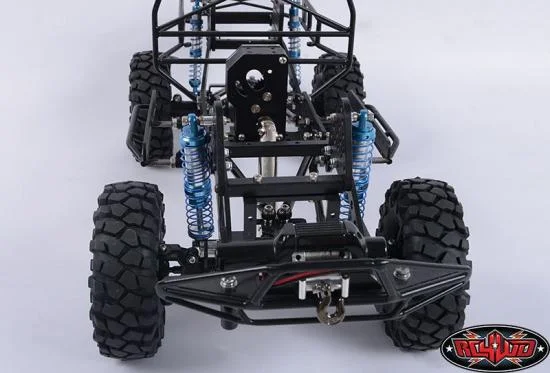

Shown installed with Boyer 1/10 Scale Truggy Kit for example (Not Included)
Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)
What's Included:
- 2x RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD)
- 1x King Decal Sheet
Optional Parts:
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
- RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)
Replacement Parts:
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (100mm) (Z-S1279)
- RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
- RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
- RC4WD 100mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1289)
Notes:
- Fits Boyer 1/10 Scale Truggy RTR (Z-RTR0006) (Front)
- Fits Boyer 1/10 Scale Truggy Kit (Front)
- Fits Z-K0001 (Front / Rear), (Z-RTR0019 "Disc") (Rear), (Z-RTR0024) ,(Z-K0042 "Disc") (Z-K0049) (Rear),But you need to Z-S0741 and Z-S0058 to cooperate
- Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks.
Key Info:
- Brand: RC4WD
- Part No: Z-D0063
- Barcode: 639302582855
