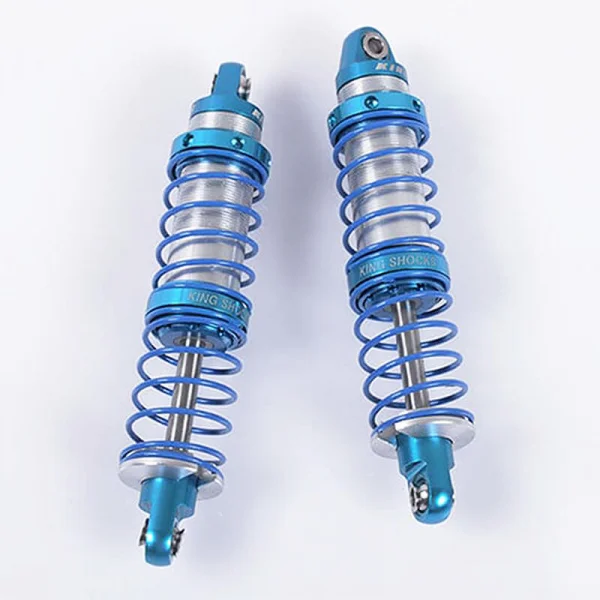

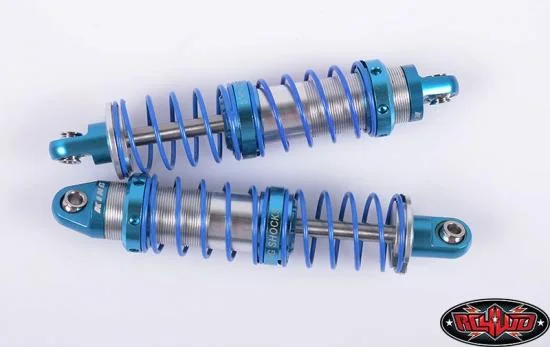

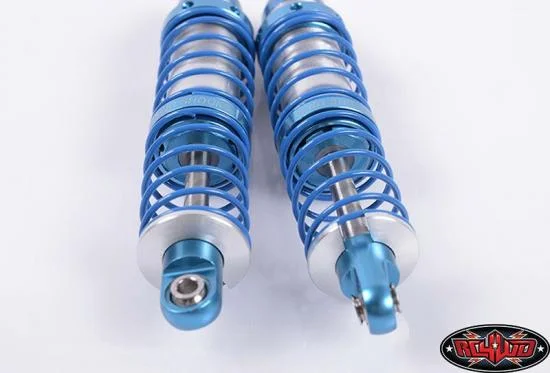

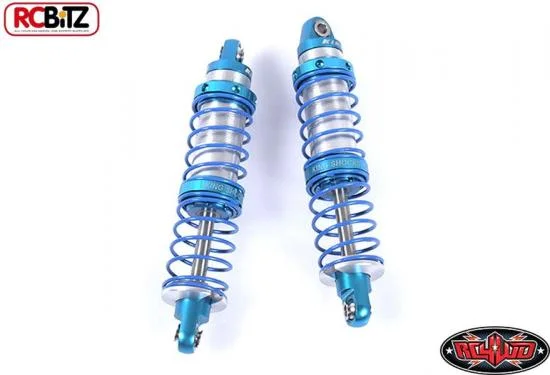

RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD)

Officially licensed by King Off-Road Shocks, the RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) deliver authentic scale detailing and dependable performance for trail rigs and crawlers. Built from machined billet aluminium with a larger Medium OD body, these shocks feature a dual spring design and steel rod end balls to handle rough, rocky terrain while elevating the look of your build. Supplied as a pair under part number Z-D0055, and complete with a King decal sheet.

Key Features

• Officially licensed King Off-Road design
• Machined billet aluminium construction
• Dual spring design for controlled suspension response
• Steel rod end ball
• King branding on top cap and retainer ring
• Larger Medium OD shock body for enhanced scale presence

Specifications

• Ball Width: 0.25in / 6.3mm
• Ball Lip Diameter: 0.19in / 4.8mm
• Ball ID: 0.12mm / 3mm
• Hole to Hole (Compressed): 2.36in / 60mm
• Hole to Hole (Uncompressed): 3.15in / 80mm
• Overall Length: 3.52in / 89.6mm
• Travel Length: 0.79in / 20mm
• Shock Body OD: 0.49in / 12.6mm
• Shaft OD: 0.15in / 3.97mm
• Spring Body OD: 0.48in / 12.3mm
• Each Weight: 0.77oz / 22g

What’s Included

• 2x RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD)
• 1x King decal sheet

Optional Parts

• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
• RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)

Replacement Parts

• Replacement Shock Shafts for King Dual Spring Shocks (80mm) (Z-S1275)
• Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
• RC4WD Cap for Top of King Offroad Shocks (Z-S1280)
• RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
• RC4WD 80mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1285)

Notes & Suggested Compatibility

• Suggested compatibility includes: Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc") (Front); Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049); Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019 "Disc") (Front); Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024).
• Traxxas TRX-4: suggested compatibility; will require both 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806).

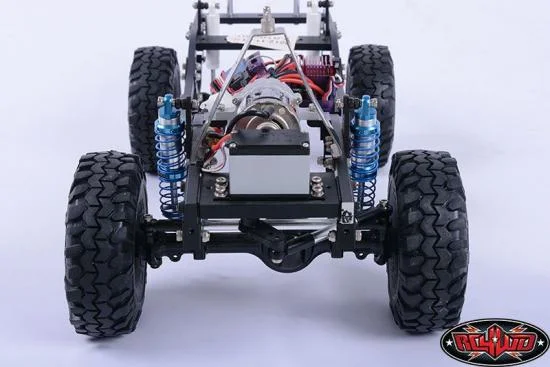

• Shown installed on 1/10 Yota RTR Scale Truck and Traxxas TRX-4 for example only (vehicles not included).
• Use blue (medium) thread lock on the bottom shock shaft rod end during installation.
