RC4WD King Dual Spring Shocks 90mm Medium OD

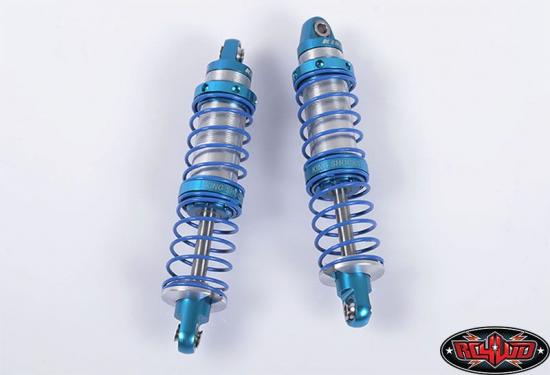

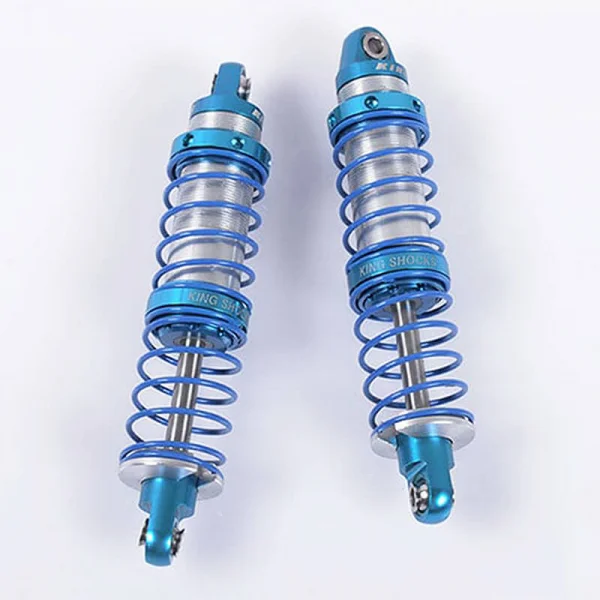

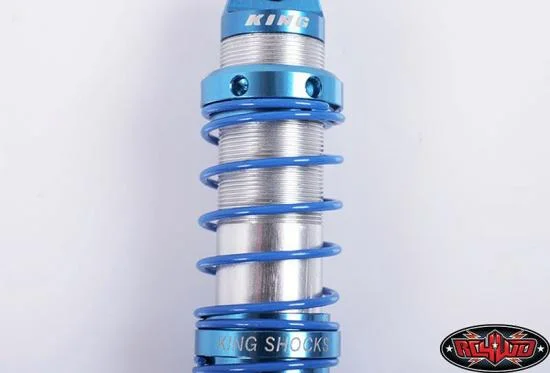

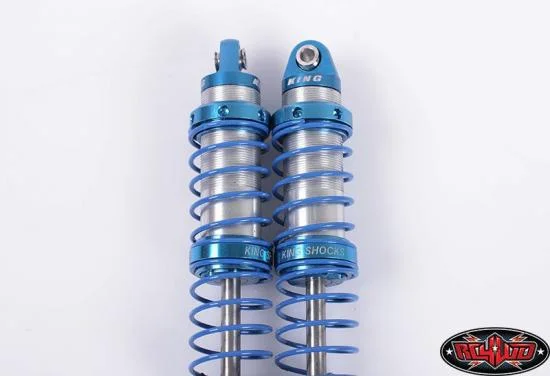

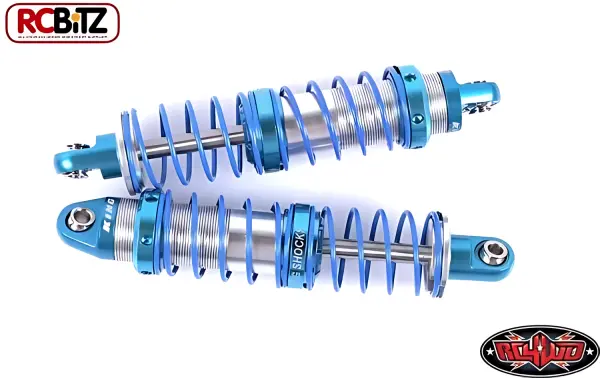

RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD)
These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Now in a larger body diameter.
Specifications:

• Machined Billet Aluminum
• King on Top and Retainer Ring
• Dual Spring Design
• Steel Rod End Ball
• Ball Width: 0.25in / 6.3mm
• Ball Lip Diameter: 0.19in / 4.8mm
• Ball ID: 0.12mm / 3mm
• Hole to Hole (Compressed): 2.55in / 65mm
• Hole to Hole (Uncompressed): 3.54in /90mm
• Overall Length: 3.9in / 99.3mm
• Travel Length: 0.59in / 15mm
• Shock Body OD: 0.49in / 12.6mm
• Shaft OD: 0.15in / 3.97mm
• Spring Body OD: 0.66in / 16.8mm
• Spring Body ID: 0.58in / 14.96mm
• Each Weight: 0.88oz / 25g

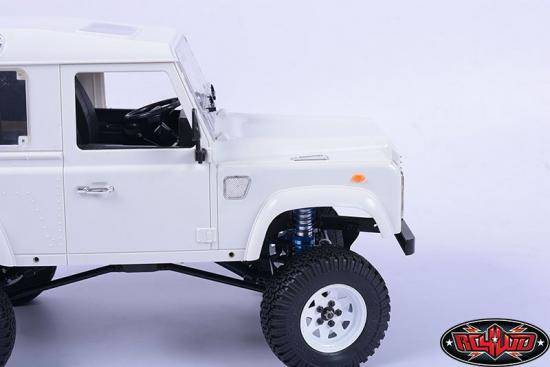

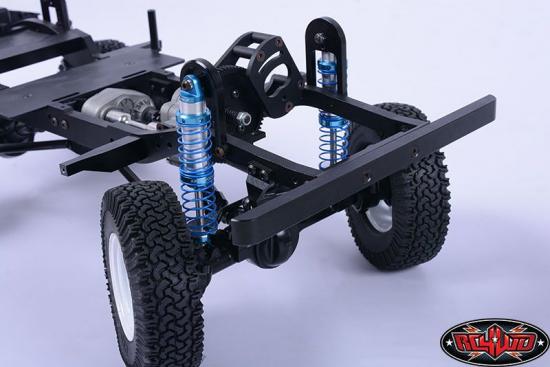

Shown installed on RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001) for example (Not Included)
Shown installed with RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)
Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)
What's Included:

• 2x RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD)
• 1x King Decal Sheet

Optional Parts:

• RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
• RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)

Replacement Parts:

• Replacement Shock Shafts for King Dual Spring Shocks (90mm) (Z-S1277)
• Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
• RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
• RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
• RC4WD 90mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1287)

Notes:

• Fits RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001) (Front / Rear)
• Fits Traxxas Rustler Front Axle, but you will need Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes

• To use this shock with the SCX10 II, you will need to use a 3mm spacer on the top mounting point of the shock. (Z-S0806)
• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.

King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.


Key Info:

• Brand: RC4WD
• Part No: Z-D0061
• Barcode: 639302582794
• Fitment: Option Part
