RC4WD Motor Mount for R4 Transmission

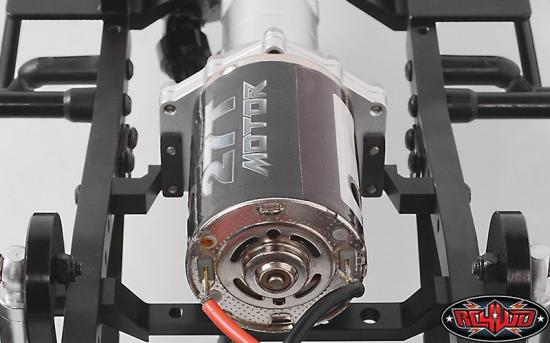

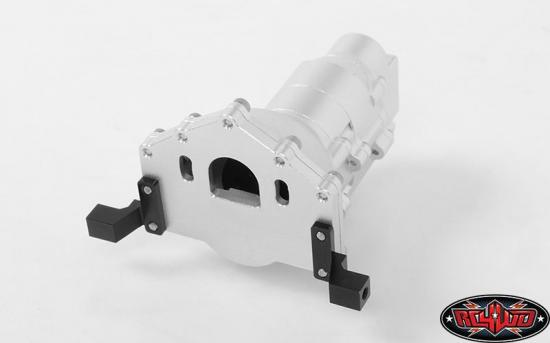

The RC4WD Motor Mount for R4 Transmission provides a robust, precise mounting solution for your scale drivetrain. Machined from billet aluminium, it delivers strength with a compact footprint, making it a solid choice for detailed builds using the RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031). Example images may show additional components for illustration, which are not included.

Specifications

• Material: Billet aluminium
• Length: 1.99in / 50.5mm
• Width: 1.78in / 45.1mm
• Thickness: 0.20in / 5mm
• Weight: 0.9oz / 23g

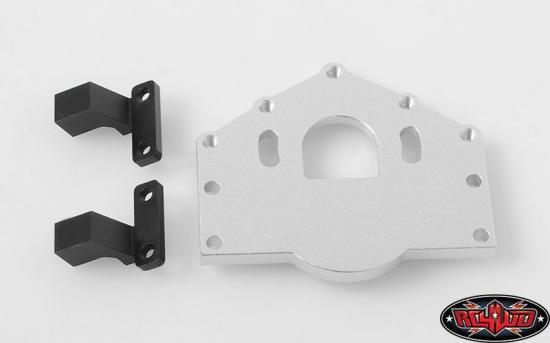

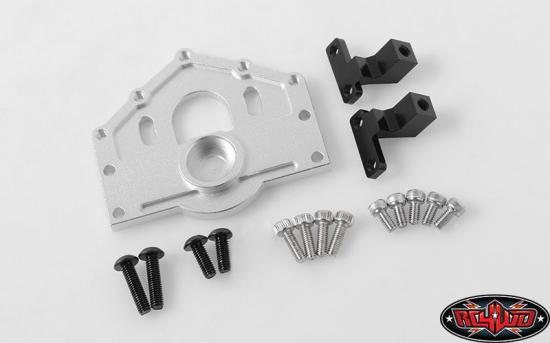

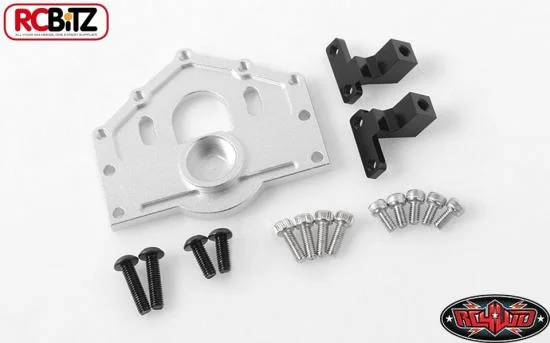

What’s Included

• 1x Motor Mount for R4 Transmission

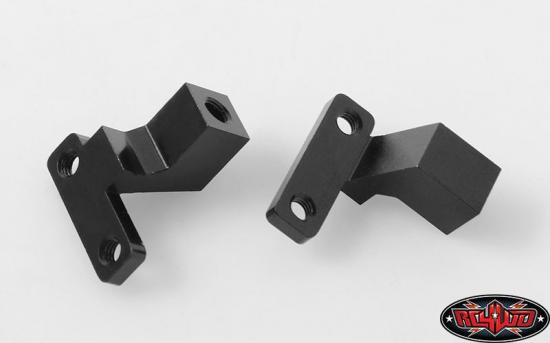

• 1x Transmission Mount (Left)
• 1x Transmission Mount (Right)
• 5x M2.5 x 5mm SHCS (Silver) (Z-S1207)
• 4x M2.5 x 8mm SHCS (Silver) (Z-S0828)
• 2x M3 x 8mm BHCS (Black) (Z-S0652)
• 2x M3 x 12mm BHCS (Black) (Z-S0654)

Required Parts

• RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
