RC4WD Superlift Superide 80mm Scale Shocks (Z-D0024)

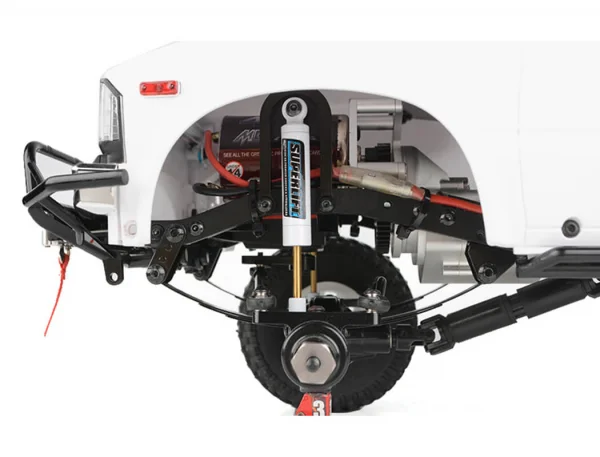

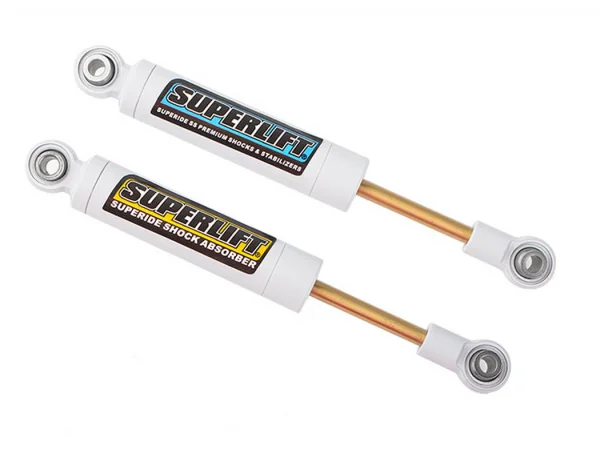

Built for scale realism and durability, the RC4WD Superlift Superide Scale Scale Shock Absorbers 80mm (Z-D0024) combine CNC machined billet aluminium construction with an internal spring design. Finished in smooth white with steel rod end balls, this pair is well suited to detailed crawler builds where appearance matters as much as function.

Features

• CNC machined
• Billet aluminium
• Smooth white painted finish
• Internal spring design

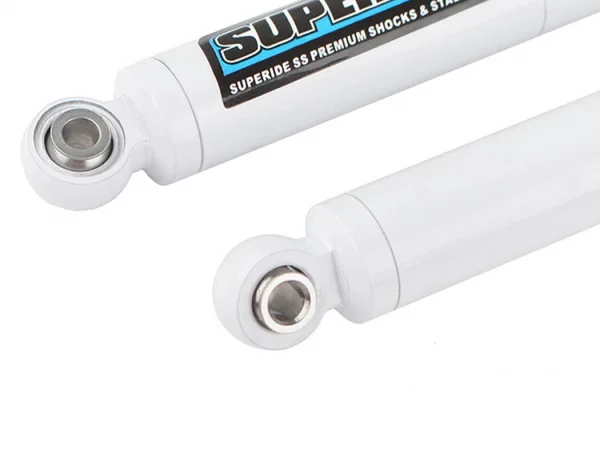

• Steel rod end ball

Specifications

• Hole to hole (compressed): 61.5mm (2.42in)
• Hole to hole (uncompressed): 80mm (3.15in)
• Overall length: 89.0mm (3.50in)
• Travel length: 18.5mm (0.72in)
• Shock body OD: 10.0mm (0.39in)
• Shaft OD: 3.00mm (0.11in)
• Weight (each): 10.5g (0.37oz)

What’s Included

• 2 x RC4WD Superlift Superide Scale Shock Absorbers 80mm
• 1 x Superlift decal sheet

Suggested Compatibility

• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
• RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0072)
• RC4WD Gelande II Truck 1/10 Scale Builders Kit (Z-K0071)
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Grey) (Z-RTR0065)

Notes

• Apply blue (medium) thread lock to the bottom shock shaft rod end before installation to help keep it in place.
