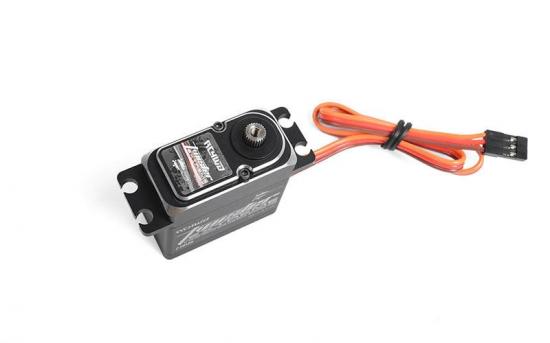

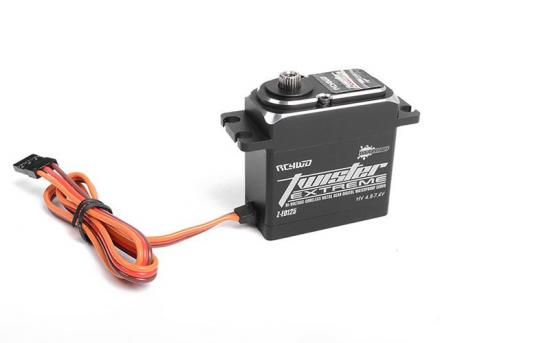

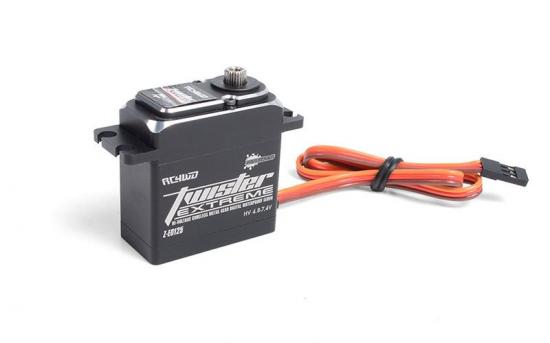

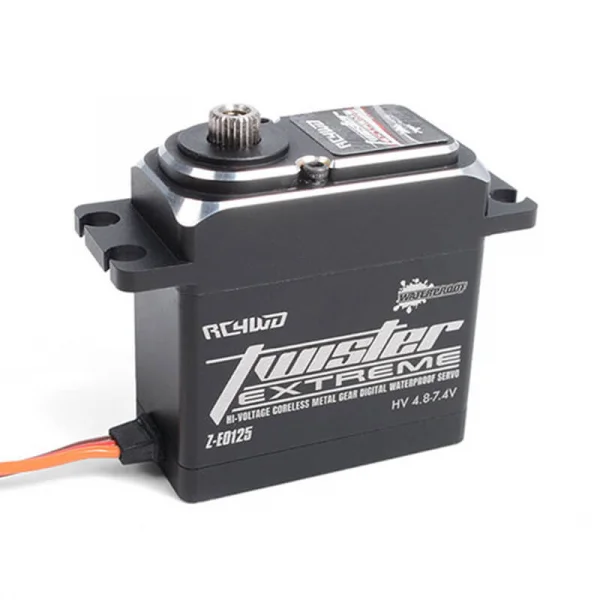

RC4WD Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo RC4WD

The RC4WD Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125) delivers high torque, fast response and durable performance for demanding RC applications. With an aluminium centre case, metal gears and a waterproof design, it is well suited to rock crawlers and scale trucks where power and reliability matter.

Key Specifications

• Dimensions: 40 × 20 × 42 mm (1.57 × 0.78 × 1.65 in)
• Weight: 84.3 g (2.97 oz)
• Speed: 0.10 s/60° (6.0 V); 0.09 s/60° (7.4 V)
• Stall Torque: 528 oz·in / 38 kg·cm (6.0 V); 651 oz·in / 47 kg·cm (7.4 V)
• Stall Current: 4–5 A (6.0 V); 5–6 A (7.4 V)
• Idle Current: 60 mA (6.0 V); 70 mA (7.4 V)
• Operating Voltage: 4.8–7.4 V
• Control Method: PWM
• Pulse Width: 500–2500 µs
• Servo Wire Length: 320 mm (12.6 in)
• Centre Case: Aluminium
• Spline: 25T
• Waterproof construction

Features

• Servo‑motor lock‑rotor protection
• High efficiency with low power consumption
• Coreless motor and metal gears for long life and durability

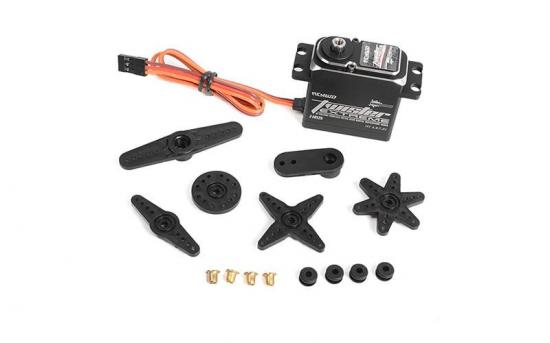

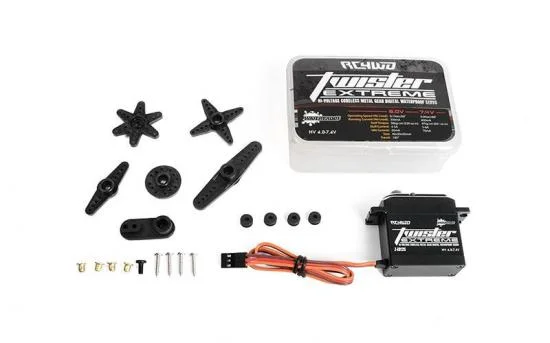

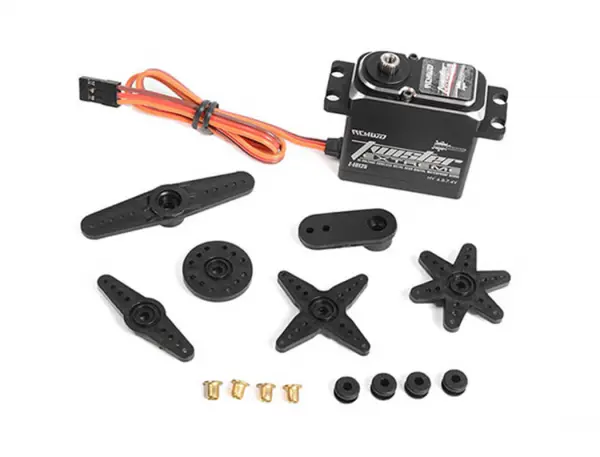

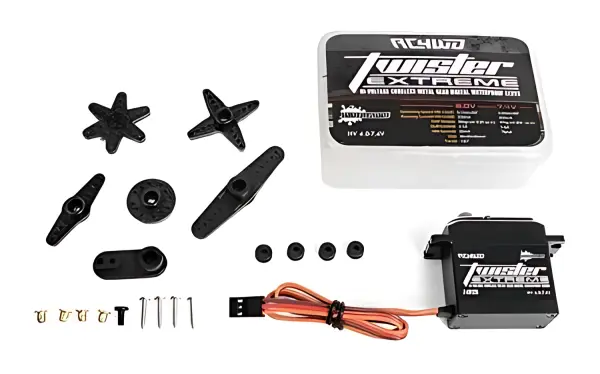

What’s Included

• 1× Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo

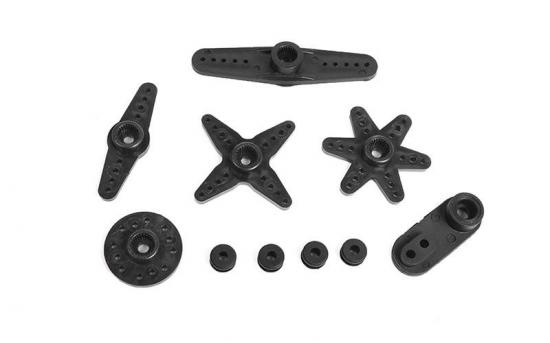

• 6× Servo Arms
• 4× Brass Mount Bushings
• 4× Rubber Mounting Tabs
• 4× M2.3 × 10 mm Cross Head Cap Self Tapping Screws (Silver)
• 1× M3 × 6 mm Cross Head Cap Screws (Black)

Suggested Compatibility

• RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body (Z-RTR0042)
• RC4WD Gelande II RTR w/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
• RC4WD Gelande II RTR w/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
• RC4WD Carbon Assault 1/10th Monster Truck w/ Manticore Lexan Body Set (Z-RTR0041)
• RC4WD Trail Finder 2 RTR w/ Mojave II Body Set (Midnight Edition) (Z-RTR0054)
• RC4WD Cross Country Off-Road RTR w/ 1/10 Black Rock Four Door Body Set (Z-RTR0046)
• RC4WD Bully II MOA RTR Competition Crawler (Z-RTR0027)
• RC4WD Trail Finder 2 "LWB" RTR w/ Mojave II Four Door Body Set (Z-RTR0030)
• RC4WD Trail Finder 2 RTR w/ Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/ Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Gelande II Truck Kit w/ Cruiser Body Set (Z-K0051)
• RC4WD Beast II 6x6 Truck Kit (Z-K0052)
• RC4WD Trail Finder 2 Truck Kit w/ Mojave II Body Set (Z-K0049)
• RC4WD Trail Finder 2 Truck Kit (Z-K0054)
• RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
• RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
• RC4WD Gelande II Truck Kit "LWB" 1/10 Chassis Kit (Z-K0061)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
