RC4WD Ultimate Scale Shocks 80mm
RC4WD Ultimate Scale Shocks 80mm
RC4WD Ultimate Scale Shocks 80mm
RC4WD Ultimate Scale Shocks 80mm
RC4WD Ultimate Scale Shocks 80mm
RC4WD Ultimate Scale Shocks 80mm

RC4WD Ultimate Scale Shocks 80mm (Z-D0088)

Brand: RC4WD

Part No: Z-D0088

£33.24 RRP £34.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Fits These Models (10)

Show all 10 models

You May Also Need

Add-ons and accessories that go with the RC4WD Ultimate Scale Shocks 80mm

RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires RC4WD RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires RC4WD
£28.49
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB RC4WD Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB RC4WD
£22.79
RC4WD Mojave II Dash and Wiper Parts Tree (Black) RC4WD Mojave II Dash and Wiper Parts Tree (Black)
£17.09
RC4WD KC HiLiTES Daylighter Light Set V2 RC4WD RC4WD KC HiLiTES Daylighter Light Set V2 RC4WD
£17.09
RC4WD 1:10 Warn Hawse Polished Aluminium Fairlead RC4WD 1:10 Warn Hawse Polished Aluminium Fairlead
£13.29
RC4WD 4 Link Kit For Trail Finder 2 Rear Axle RC4WD 4 Link Kit For Trail Finder 2 Rear Axle
£52.24
RC4WD 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup RC4WD 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup
£52.24
RC4WD Mojave II Clear Parts Tree RC4WD Mojave II Clear Parts Tree
£11.39

Description

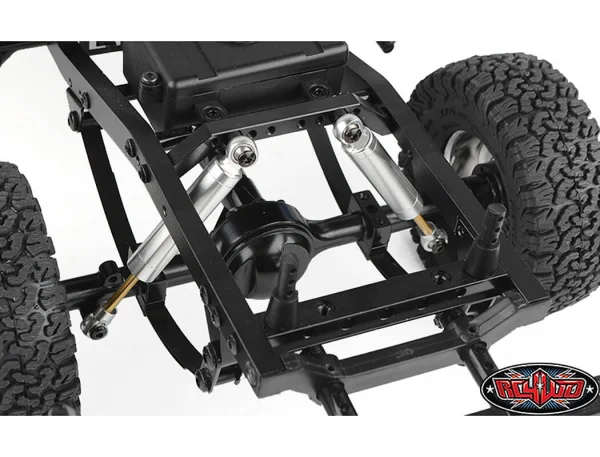

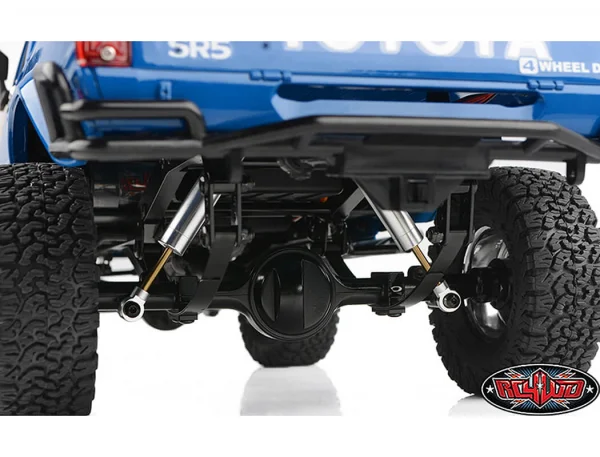

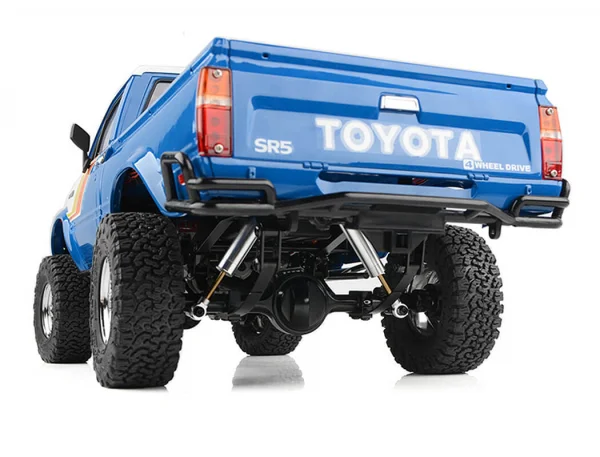

RC4WD Ultimate Scale Shocks 80mm (Z-D0088) are CNC machined billet aluminium dampers featuring an internal spring design, X-ring gaskets and titanium nitride coated shock shafts. Supplied as a pair.

Features

  • CNC machined
  • Billet aluminium
  • Silver anodised finish
  • Internal spring design
  • Steel rod end ball
  • X-ring gaskets
  • Titanium nitride coated shock shafts

Specifications

  • Hole to Hole (Compressed): 2.41in / 61.24mm
  • Hole to Hole (Uncompressed): 3.15in / 80.0mm
  • Overall Length: 3.49in / 88.75mm
  • Travel Length: 0.73in / 18.76mm
  • Shock Body OD: 0.39in / 10.0mm
  • Shaft OD: 0.11in / 3.00mm
  • Each Shock Weighs: 0.38oz / 10.8g

What’s Included

  • 2 x RC4WD Ultimate Scale Shocks 80mm

Suggested Compatibility

  • RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
  • RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
  • RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
  • RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
  • RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
  • RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
  • RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
  • RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
  • RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
  • RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
  • RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

  • Apply medium (blue) thread lock to the bottom shock shaft rod end before installing to help keep it in place.
  • X-ring shocks are designed to be oil filled for smooth damping.
