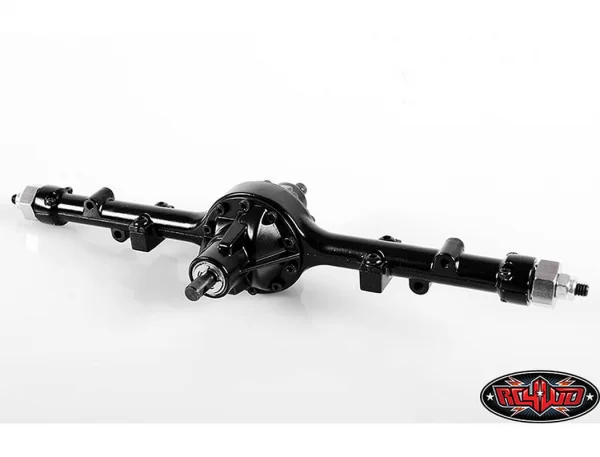

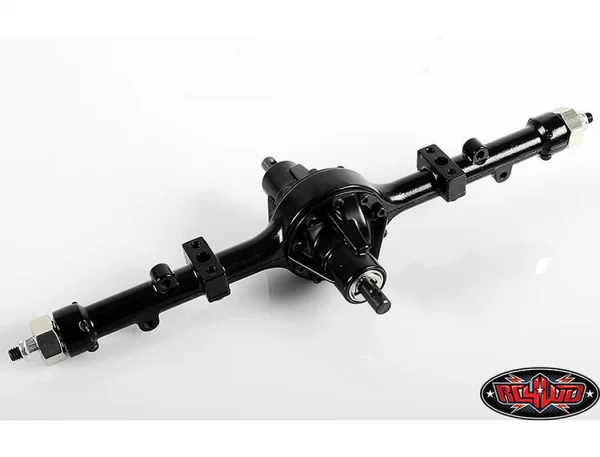

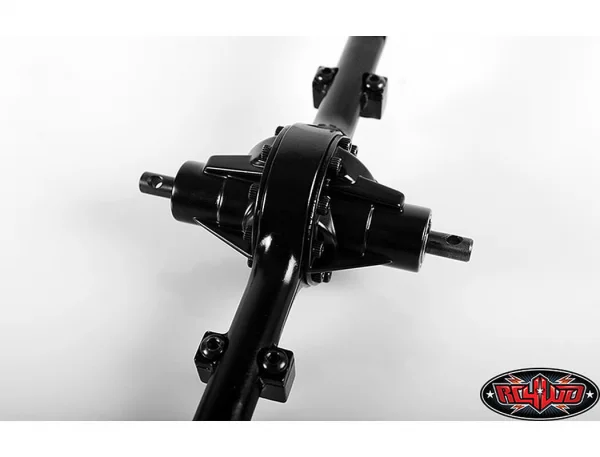

RC4WD Yota II Ultimate Scale Cast Axle (Center Rear)

The RC4WD Yota II Ultimate Scale Cast Axle (Center Rear) delivers outstanding scale detail and durability for demanding builds. Featuring a removable offset third member and a die-cast lightweight metal housing, this centre rear axle is engineered for authentic looks and smooth, reliable performance. Designed for 1:10 scale trucks, it can also be used in advanced 6x6 and 8x8 projects. Part number Z-A0010.

Key Specifications

• Engineered and manufactured by RC4WD
• Designed for 1:10 scale truck
• Die-cast lightweight metal housing
• Hardened steel spool gears
• 5mm axle output shaft
• Full ball bearings
• Powdercoated in black

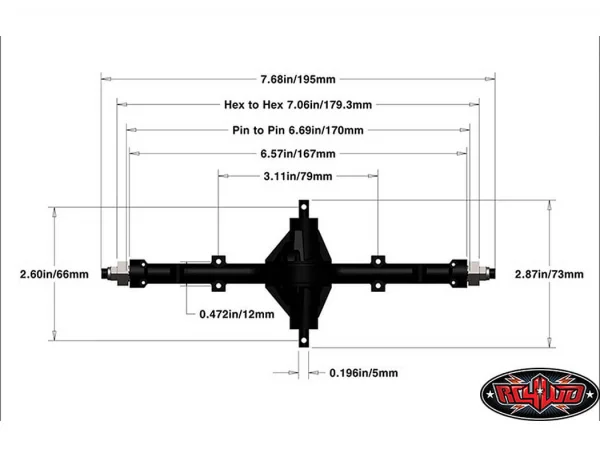

• Width: 7.06" / 179.3
• Gear Ratio: 2.67 : 1
• 12mm steel wheel hex
• Each weight: 4.9oz / 139g

What’s Included

• 1x Yota II Ultimate Scale Cast Axle (Center Rear)

Replacement Parts

• Axle Ring & Pinion Gears (Z-S0027)
• Replacement Third Member (Z-S0813)
• Replacement Hardware (Z-S0864)
• Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
• Bearing Kit for Yota Ultimate Scale Rear Axle (Z-S0082)
• Socket Head Cap Screws M2 x 6mm (10) (Z-S0611)
• 2x Metal Shield Bearing 8x12x3.5mm (Z-S0681)
• 6x Metal Shield Bearing 5x11x4mm (Z-S0683)

Optional Parts

• Helical Gear Set (Z-G0059)
• Predator Track Rear Axle Case Fitting Kit (Z-S0969)
• Ultimate Axle 4 Link Mount (Z-S0133)
• Axle U Bolt Kit (Z-S0304)
• RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)

Other Yota II Axles

• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)

Notes

• While some components may come assembled, check all hardware before use; threadlock may be desirable on pre-installed fasteners.
• Axle shimming video available.
