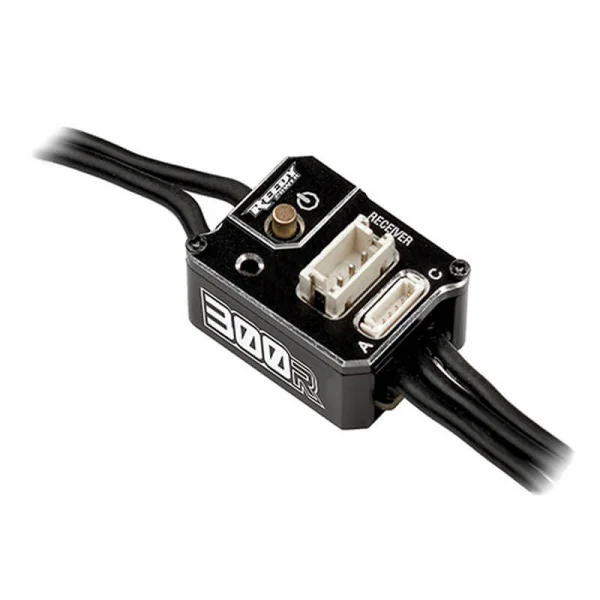

Reedy Blackbox 300R Micro Competition Brushless ESC

The Reedy Blackbox 300R Micro Competition Brushless ESC (AS27045) is a sensored speed controller designed for 1:28 and 1:24 scale applications. Running on 2S LiPo, it offers a 30A continuous rating with 80A burst in a compact 21 x 13.8 x 11 mm package weighing just 7.6 g.

Key Specifications

• Voltage input: 2S LiPo
• Continuous current: 30A
• Burst current: 80A
• Motor type: Sensored
• Motor limit (1525): 6800 kV
• BEC: 6.0V/7.4V, 3A
• Dimensions: 21 x 13.8 x 11 mm
• Weight: 7.6 g
• Application: 1:28, 1:24

Suggested Compatibility

• RC28 Team Kit

With sensored motor support and a 3A BEC (6.0V/7.4V), the Blackbox 300R Micro suits micro-class receivers and servos, while its small footprint and low mass aid installation in tight chassis layouts.
