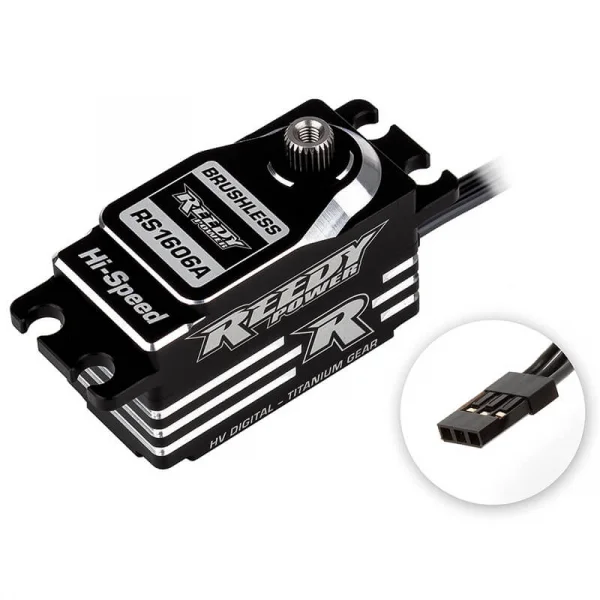

Reedy RS1606A Low-Profile Hi-Speed HV Servo
Brand: Reedy
Part No: AS27154
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #AS27171 AS A REPLACEMENT
Fits These Models (2)
Show all 2 models
Frequently Bought With
Other items customers often buy with the Reedy RS1606A Low Profile Brushless Hi-Speed HV Servo
Description
The Reedy RS1606A Low Profile Brushless Hi-Speed HV Servo (AS27154) is engineered for competitive RC drivers who demand razor-sharp response and consistent control. A precision titanium geartrain provides strength and smooth operation while trimming weight, and an advanced microprocessor refines vehicle feel for confident, repeatable lap times.
Its state-of-the-art CNC-machined aluminium case features integrated cooling fins to improve rigidity and thermal performance, helping to maintain fade-free operation throughout long runs. A powerful brushless motor delivers lightning-fast transit times, while waterproof construction and dual ball bearings add durability and efficiency. High-voltage compatibility (4.8–8.4V) and a 25T output spline round out a servo that suits a variety of on- and off-road applications where a low-profile form factor is preferred.
Features
- Full aluminium low-profile case with integrated cooling fins
- Powerful brushless motor
- Precision titanium gears
- Advanced microprocessor control
- Waterproof construction
- Dual ball bearings
- High-voltage compatible
Specifications
- Input voltage: 4.8–8.4V
- Motor: Brushless
- Speed (sec/60°): 0.070 @ 6.0V; 0.065 @ 7.4V; 0.058 @ 8.4V
- Torque: 13 kg-cm (180 in-oz) @ 6.0V; 14.5 kg-cm (201 in-oz) @ 7.4V; 16 kg-cm (222 in-oz) @ 8.4V
- Dimensions (L x W x H): 40.8 x 20.2 x 26.5 mm
- Weight: 57.2 g
- Output spline: 25T
Secured by Stripe
Reedy RS1606A Low Profile Brushless Hi-Speed HV Servo Manuals & Guides
Specifications
REEDY RS1606A LOW PROFILE BRUSHLESS HI-SPEED HV SERVO
Reedy's all-new Low-Profile Titanium Gear Brushless HV Servos are now available and include a variety of performance features intended for competition! Precision titanium gears add strength, reduce weight, and provide silky smooth operation. A powerful brushless motor produces a combination of lightning quick speeds and maximum torque while an advanced microprocessor improves vehicle control and enhances driver feel. State-of-the-art CNC-machined aluminum case with integrated fins increases rigidity to ensure consistent driving feel while lowering operating temperatures for fade-free operation. Two options, high speed or high torque, are available to suit a variety of on- and off-road applications and driver preferences.
Features
- Full aluminum low-profile case
- Powerful brushless motor
- Waterproof construction
- Ultra-precise metal gears
- Dual ball bearings
- High-voltage compatible
Specifications
Input (V): 4.8 - 8.4
Motor: Brushless
Speed (sec/60 deg.), 6.0V: .070
Speed (sec/60 deg.), 7.4V: .065
Speed (sec/60 deg.), 8.4V: .058
Torque (kg-cm/in-oz), 6.0V: 13/180
Torque (kg-cm/in-oz), 7.4V: 14.5/201
Torque (kg-cm/in-oz), 8.4V: 16/222
Dimensions (mm): 40.8 x 20.2 x 26.5
Weight (g): 57.2
Spline: 25
Key Info:
- Brand: Reedy
- Part No: AS27154
- Barcode: 784695271548
