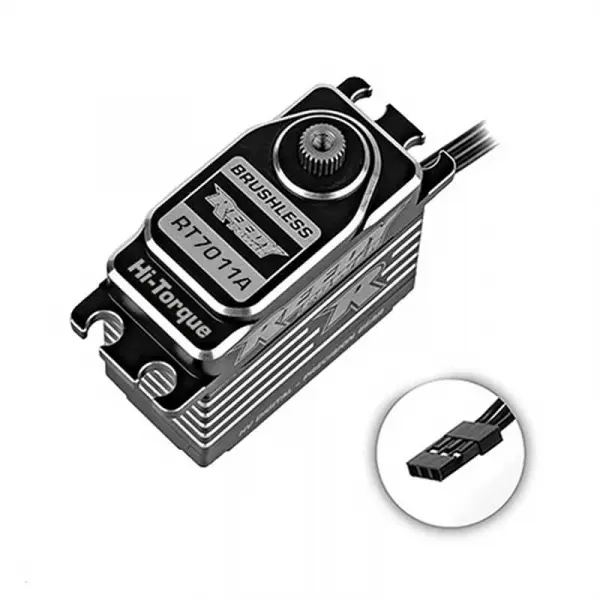

Reedy RT7011A Brushless Hi-Torque HV Competition Servo
Just Added

Reedy RT7011A Brushless Hi-Torque HV Competition Servo

Brand: Reedy

Part No: AS27180

£153.89 RRP £170.99
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

The Reedy RT7011A Brushless Hi-Torque HV Competition Servo, part number AS27180, is a standard-size high-voltage servo for radio-controlled models. Its brushless motor provides power delivery for steering, throttle and brake applications, with suggested compatibility for 1:8 and 1:10 racing applications. The servo accepts an input voltage from 6.0V to 8.4V, allowing it to be used with suitable high-voltage radio control systems.

The RT7011A uses steel gears, ball bearings and a 25-tooth spline. Its full CNC aluminium case incorporates an integrated heat sink, while the standard-size format is suited to installations designed for that servo size. Speed is specified between 0.11 and 0.16 seconds per 60 degrees across the stated voltage range, while torque varies from 624.9 oz-in at 6.0V to 972.1 oz-in at 8.4V.

Features

  • High-voltage operation
  • Standard-size servo case
  • 25-tooth spline
  • Steel gears
  • Ball bearings
  • Brushless motor
  • CNC aluminium case with integrated heat sink
  • Suitable for steering, throttle and brake applications

Specifications

  • Input voltage: 6.0–8.4V
  • Speed: 0.11–0.16 seconds per 60 degrees
  • Torque: 624.9–972.1 oz-in
  • Dimensions: 40.3 x 20.2 x 37.6mm
  • Weight: 81g
  • Spline: 25-tooth
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

REEDY RT7011A BRUSHLESS HI-TORQUE HV COMPETITION SERVO

Ideal for 1:8 and 1:10 racing, the Reedy Power RT70011A servo offers extreme torque, efficient power delivery and the durability of steel gears. Optimized for both steering and throttle/brake applications.

Features
  • High voltage
  • Standard Size
  • 25-tooth Spline
  • Steel Gears
  • Precision ball bearings
  • Brushless motor
  • Full CNC aluminum case with integrated heat sink
  • High Speed: 0.11 - 0.16 sec/60 degrees (8.4V - 6.0V)
  • Extreme Torque: 972.1 oz-in - 624.9 oz-in (8.4V - 6.0V)
Specifications

Input (V): 6.0 - 8.4
Motor: Brushless
Speed (sec/60°) 6.0V: 0.1g
Speed (sec/60°) 7.4V: >0.13
Speed (sec/60°) 8.4V: 0.11
Torque (kg-cm/in-oz) 6.0V: 45/625
Torque (kg-cm/in-oz) 7.4V: 55/763
Torque (kg-cm/in-oz) 8.4V: 70/972
Dimensions (mm): 40.3 x 20.2 x 37.6
Weight (g): 81
Spline: 25




Key Info:
  • Brand: Reedy
  • Part No: AS27180
  • Barcode: 784695271807
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
