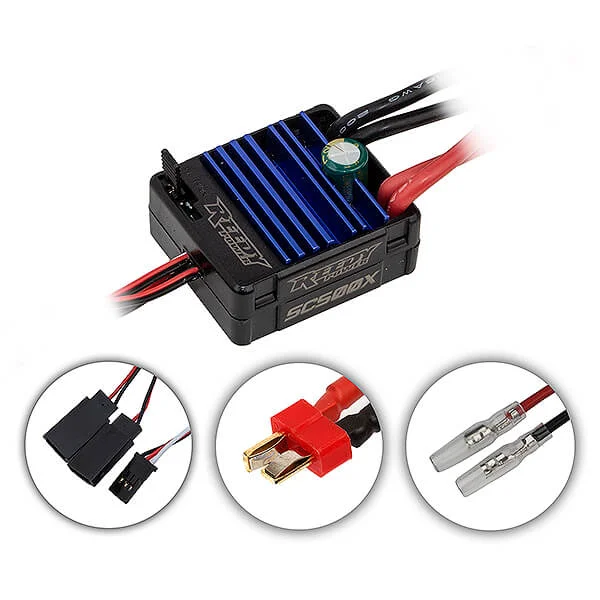

Reedy Sc500X Brushed ESC

The Reedy SC500X Brushed ESC (AS27013) is a tested, proven and easy-to-use speed controller for a wide range of 1:10 on-road and off-road applications. It delivers precise throttle, brake and reverse feel, with robust hardware and broad adjustability via the optional Program Card #27034. With 80A continuous current handling, low-resistance design and LiPo low-voltage protection, it provides dependable brushed power and protection.

Key Features

• Dual auxiliary power leads
• Durable case with aluminium heat sink
• Water-resistant and dust proof
• Precision throttle, reverse, and brake control
• Adjustable brake and throttle functions (requires Program Card #27034)
• LiPo low-voltage protection
• Heavy-duty silicone wires
• Low-resistance T-plug connector
• Bullet motor connectors

Specifications

• Cells: 2–3 LiPo, 5–9 NiMH
• Current (A): 80 continuous / 320 burst
• On-resistance: 0.0014 Ω
• Operation: Forward / Brake / Reverse
• Motor limit, 2S LiPo / 5–6 NiMH: 540/550 12T 3-slot; 8T 5-slot
• Motor limit, 3S LiPo / 7–9 NiMH: 540/550 15T 3-slot; 10T 5-slot
• Low-voltage cutoff: Yes
• Dimensions (mm): 32 x 37 x 18
• Weight: 43 g
• BEC: 7.4V / 5A
• Power wires: 16-gauge
• Connectors: Battery – T-plug; Motor – bullet; Aux – FUT-J

Suggested Compatibility

• Apex2
