RPM Upgrade Hubs (Blue) for Traxxas Revo or E/T-MAXX 2.5R / 3.3 - with Oversized Bearings
Brand: RPM
Part No: RPM80585
Out Of Stock

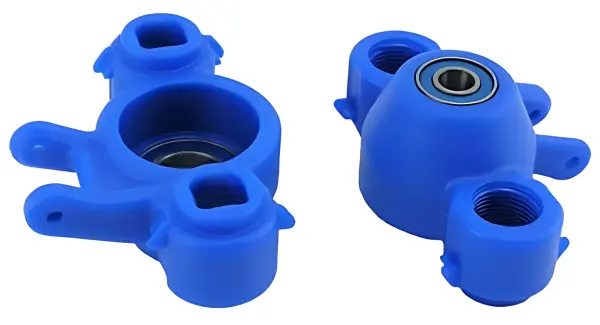

Request Stock NotificationRPM Upgrade Hubs (Blue) with Oversized Bearings, part number RPM80585, are heavy‑duty axle carriers engineered to boost durability and reliability on demanding Traxxas platforms. These stock‑replacement carriers feature larger bearing bores with press‑fit oversized bearings, reinforced pillow‑ball areas and improved hardware for consistent suspension alignment and longer running performance.
Key Features
- Stock‑replacement axle carriers; no modifications needed to install.
- Larger bearing bores accept RPM oversized bearings (included).
- Press‑fit bearings reduce axle movement within the carrier.
- Wall thickness around pillow‑balls increased by 40% with over 20% more supporting material to help prevent pull‑through.
- Reinforced tie‑rod mount and redesigned boot lock tabs for easier boot removal.
- Oversized bearings: outer 6x15x5mm (replaces 6x12x4mm) and inner 12x21x5mm (replaces 12x18x4mm).
- Wider bearings create an extra 2mm of axle contact; 3mm larger bearings use balls ~33% larger than stock, with roughly double the load rating and over triple the fatigue rating (vs. stock).
- Two‑piece pillow‑ball setscrews use aluminium screws and Delrin bushing caps for secure holding power; caps provide more than twice the contact area on the pillow‑ball.

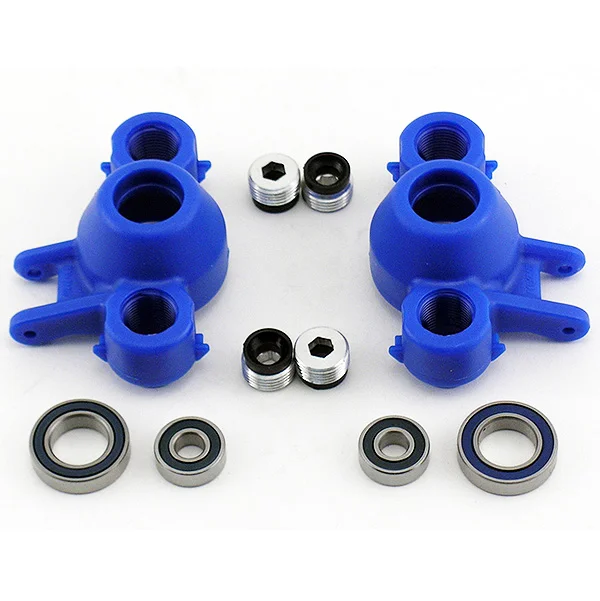

What’s Included
- 1x Left axle carrier (blue)
- 1x Right axle carrier (blue)
- 2x Outer bearings (6x15x5mm)
- 2x Inner bearings (12x21x5mm)
- 4x Aluminium setscrews
- 4x Delrin bushing caps
- Installation instructions
Suggested Compatibility
- Traxxas Revo
- Traxxas T‑MAXX 2.5R / 3.3 (Revo drivetrain)
- Traxxas E‑MAXX models using the Revo drivetrain
Tech Note
- Not suggested for use with 120‑LT Long Travel rockers (Traxxas #5356) due to the additional material supporting the pillow‑balls.
Colour: Blue. Also available in black (RPM80582).
Secured by Stripe
Revo Axle Carriers & Oversized Bearings (Includes oversized bearings, carriers, & setscrews)
Note: These will also fit the Traxxas T-MAXX 2.5R and 3.3 as these trucks use the REVO drivetrain.
RPM axle carriers for the Traxxas Revo have been painstakingly redesigned to improve the durability, strength, and reliability of these much-abused parts. Check out this laundry list of features built into each set of RPM Revo carriers:
Axle Carriers:
Stock replacement – no modifications are needed to bolt them in.
Larger bearing bores accept RPM oversized bearings.
Included in each kit are two 15mm bearings and two 21mm bearings.
The wall thickness around the pillow-balls has been increased by 40% - eliminating split walls!
More than 20% more material supports the pillow-balls, preventing them from pulling through.
Redesigned reinforcing rib supporting the tie rod mount.
Redesigned boot lock tabs making removal of the silicone boots easier.
Press-fit bearings in the carrier means reduced movement of the axle in the carrier.
Oversized Bearings:
Outer bearings are 6x15x5mm (stock is 6x12x4mm).
Inner bearings are 12x21x5mm (stock is 12x18x4mm).
Wider bearings create an additional 2mm of contact with the axle for smoother, longer running performance.
3mm. larger bearings have balls a full 33% larger than stock!
The load ratings of RPM oversized bearings are double that of stock bearings and more than triple the fatigue rating of stock bearings as well!
Pillow-Ball Setscrews:
Two-piece design uses aluminum and Delrin for the ultimate in holding power under extreme situations.
Our aluminum setscrews reduce movement of the pillow-balls in the carrier.
Our Delrin bushing caps have more than twice the contact area on the pillow-ball, keeping the pillow-balls locked in place at all times.
RPM Revo axle carriers are sold with 1 left and 1 right axle carrier, 2 outer 15mm bearings, 2 inner 21mm bearings, 4 aluminum setscrews, 4 Delrin bushing caps, and detailed instructions to help install them on your truck. Replacement bearing sets (#80570) come with 2 inner 21mm bearings & 2 outer 15mm bearings.
Tech Note: Due to increased material to support the pillow balls from pulling through the carrier, RPM Revo Axle Carriers will not work in conjunction with 120-LT Long Travel rockers (Traxxas #5356).
These are also available in Black - RPM80582
Key Info:
- Brand: RPM
- Part No: RPM80585
- Barcode: 672415805855
- Fitment: Option Part
Additional Categories:
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
Excellent hubs as you would expect from RPM. They went on a T-Maxx 2.5 which has the smaller drive shafts, so a swap to Revo / T-Maxx 3.3 drive shafts is necessary to fit the larger bearings. Absolutely worth it though for the solidity and smoothness you get from these hubs!
