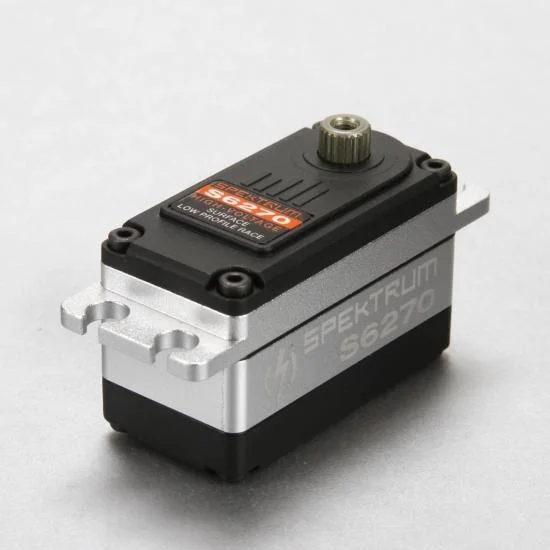

S6270 Low Profile HV Race Servo

The Spektrum S6270 has been designed for cars and trucks such as the TLR 22 2.0, 22T 2.0 22SCT 2.0 or similar mid-motor applications. When using a mid-motor setup chassis space is at a premium which is where low-profile servos are the ideal solution. The S6270 has 0.078 sec/60° @ 6V transit time with 163 oz-in (11.7kg-cm) @ 6V to provide the speed to get your wheels turned and the torque to hold them there. The quick release servo lead (8" included) allows for ease of installation and maintenance and the optional 2", 4", and 6" leads allow for a clean custom servo installation. The S6270 also features a waterproof heatsink case, tight deadband, and coreless motor, robust metal gear train and 6–8.4V compatibility.

• HV (2S Li-Po compatible)
• Torque: 174/152/124 oz-in (12.5/10.9/8.92 kg-cm) @ 8.4/7.4/6.0V
• Speed: .05/.06/.07 sec. @ 8.4/7.4/6.0V

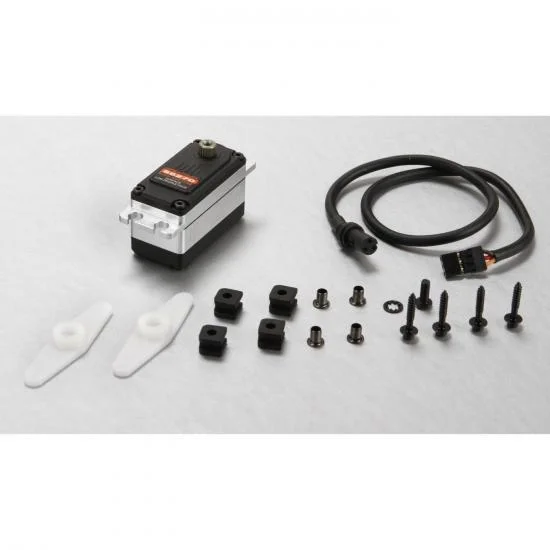

• Quick release servo lead simplifies wire routing for a custom installation
• Robust Metal Gear Train
• Waterproof
• 1-Year Limited Warranty

• Application: : 1/10 Buggy, Truck, Pan Car
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Z-Connector
• Gear Material: : Metal
• Gear Type: : Metal
• Height: : 1.06 in (26.7mm)
• Input Voltage: : 4.8–8.4V
• Length: : 1.61 in (41mm)
• Motor Type: : Coreless
• Programmable: : No
• Rotation Range: : 120°
• Servo Type: : Digital
• Servo Voltage: : 4.8–8.4V (High Voltage)
• Speed: : .05/.06/.07 sec. @ 8.4/7.4/6.0V
• Spline Count: : 23 Teeth
• Torque: : 174/152/124 oz-in (12.5/10.9/8.92 kg-cm) @ 8.4/7.4/6.0V
• Weight: : 42g
• Width: : 0.82 in (20.9mm)

• Brand: Spektrum
• Part No: SPMSS6270
• Barcode: 605482058398
• Max Voltage: 7.4v+ (LiPo)
• Gear Material: Metal
• Fitment: Option Part
