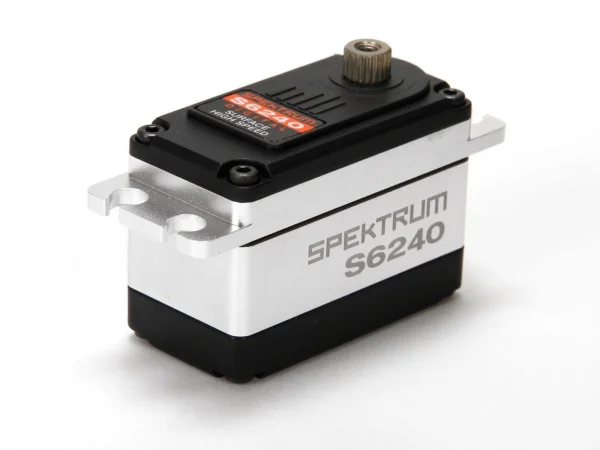

Spektrum S6240 High Speed Dig Servo

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

S6240 High Speed Dig Servo ** CLEARANCE ** Specfications:

• Application: Surface
• Product Weight: 2.1 oz (59.5g)
• Spline Count: 23 Teeth
• Bearing: Dual
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Wire Gauge: 22 AWG
• Current Draw Stall: 4.9A @ 6.0V
• Servo Operating Voltage: 6.0V
• Part Type: Electronics
• Product Application: Surface

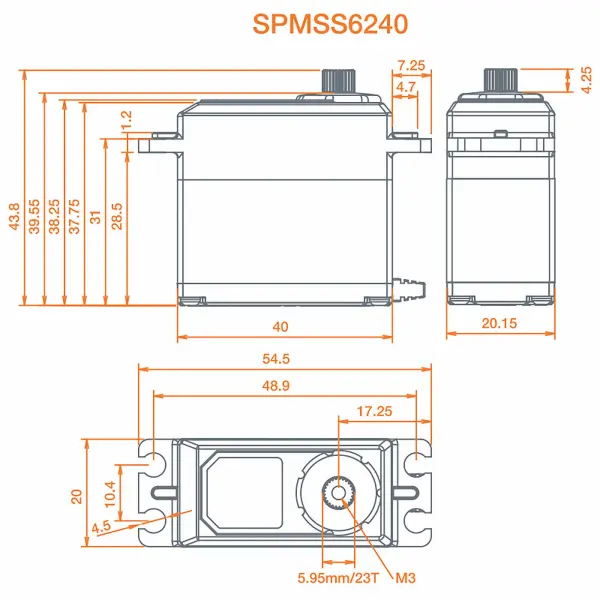

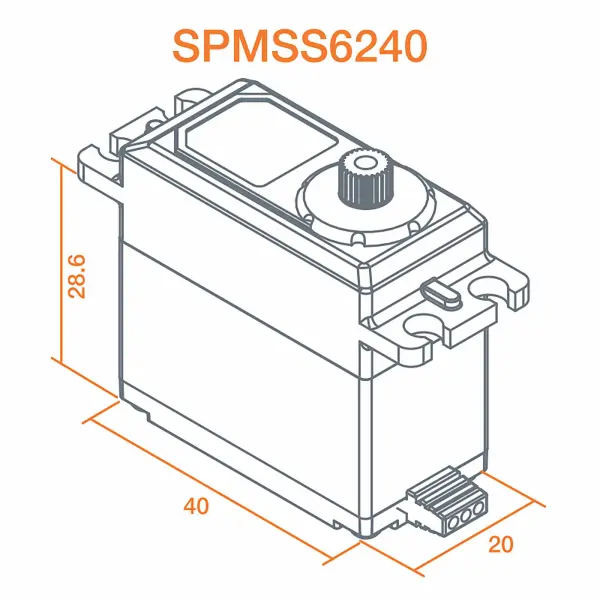

• Product Height: 1.18 in (30mm)
• Servo Type: Digital
• Maximum Servo Torque: 208 oz-in (15.0kg-cm) @ 6.0V
• Connector Wire Length: 7.87 in (200mm)
• Current Draw Idle: 9.8 mA @ 6.0V
• Product Width: 0.82 in (20.9mm)
• Product Length: 1.61 in (41mm)
• Rotation Range: 120 deg
• Material: Metal / Plastic
• Programmable: No
• Servo Size Category: Standard

• Brand: Spektrum
• Part No: SPMSS6240
• Barcode: 605482585245
• Max Voltage: 6v (NiMh)
• Gear Material: Metal
• Fitment: Option Part
• Fitment: Standard Part
