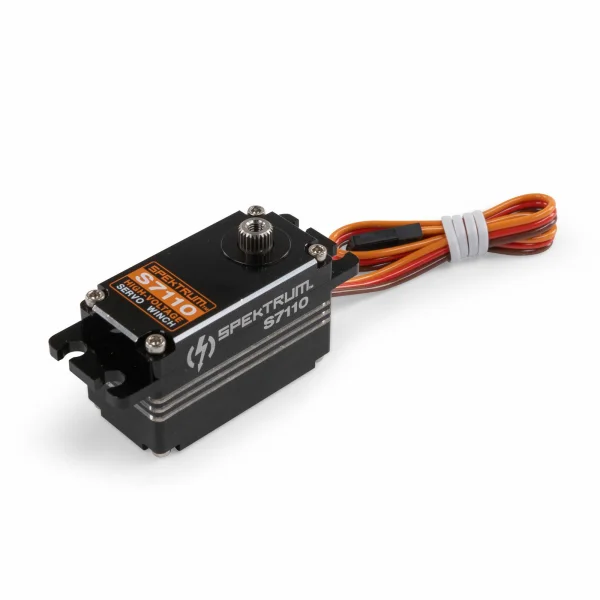

Spektrum S7110 Servo Winch: 1/10 Rock Crawlers
Brand: Spektrum
Part No: SPMSS7110
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (8)
Description
The Spektrum S7110 Servo Winch (SPMSS7110) delivers reliable, consistent recovery performance for 1/10 scale rock crawlers and scalers. Its high-voltage digital design combines a brushless motor, metal gear train and ball bearing support for smooth operation and long-term durability. At 7.4V it produces up to 160 oz-in at 155RPM, with HV capability to 8.4V for as much as 180 oz-in.
A 25-tooth spline, universal connector and 360-degree continuous rotation make the S7110 straightforward to integrate into typical crawler setups. The low-profile case, 22 AWG lead and lightweight 57 g build help keep installations neat without adding unnecessary mass.
Key Features & Specifications
- Suggested compatibility: 1/10 rock crawlers and scalers
- Servo type: Digital with 360-degree continuous rotation
- Input/operating voltage (HV): 6.0–8.4V
- Maximum torque: 130 oz-in @ 6.0V; 160 oz-in @ 7.4V; 180 oz-in @ 8.4V
- Maximum speed: 123 RPM @ 6.0V; 155 RPM @ 7.4V
- Brushless motor with low-wear metal gear drivetrain
- Ball bearing supported for smooth operation
- 25-tooth spline; universal connector
- Wire gauge: 22 AWG; lead length: 190 mm (7.48")
- Current draw (stall): 1.6A @ 6.0V; 1.8A @ 7.4V; 2.0A @ 8.4V
- Current draw (idle): 2 mA

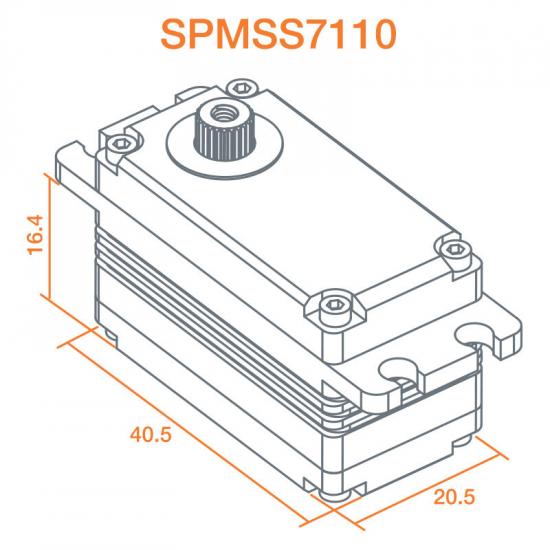

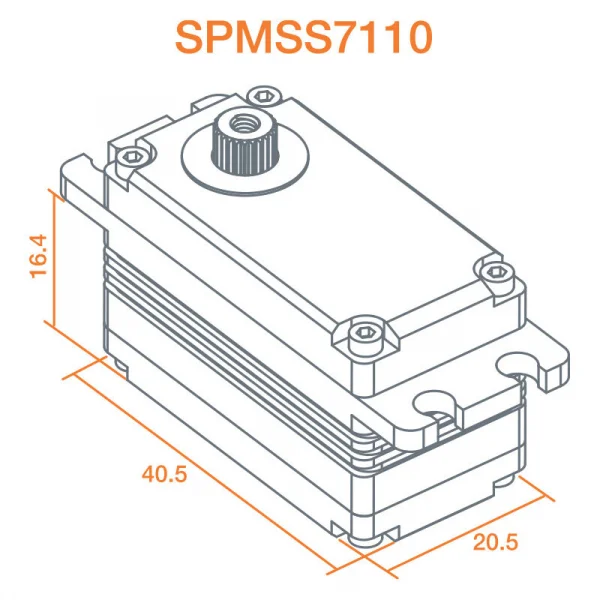

- Size (low profile): 40 mm (L) x 20 mm (W) x 25 mm (H) [1.59" x 0.8" x 0.99"]
- Weight: 57 g (2 oz)
What’s Included
- S7110 high-voltage servo winch
- Scale recovery hook
- Aluminium spool
- 7' fibre line
Secured by Stripe
S7110 Servo Winch: 1:10 Rock Crawlers Manuals & Guides
Manuals & Guides
Specifications
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft
- Includes everything needed to start winching
S7110 Servo Winch: 1:10 Rock Crawlers Specifications:
- Application: 1/10 Rock Crawlers- Winch
- Bearing: Ball Bearing
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 7.48" (190 mm)
- Current Draw Idle: 2mA
- Current Draw Stall: 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
- Gear Type: Metal
- Input Voltage: 6.0V ~ 8.4V
- Maximum Servo Speed: 123RPM @ 6.0V, 155RPM @ 7.4V
- Maximum Servo Torque: 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
- Product Height: 0.99" (25 mm)
- Product Length: 1.59" (40 mm)
- Product Weight: 2oz (57g)
- Product Width: 0.8" (20 mm)
- Programmable: No
- Prop 65: California Residents Prop 65 WARNINGS.
- Rotation Range: 360 Degree Continuous
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Servo Size Category: Low Profile
- Servo Type: Digital
- Spline Count: 25 - Tooth
- Wire Gauge: 22 AWG

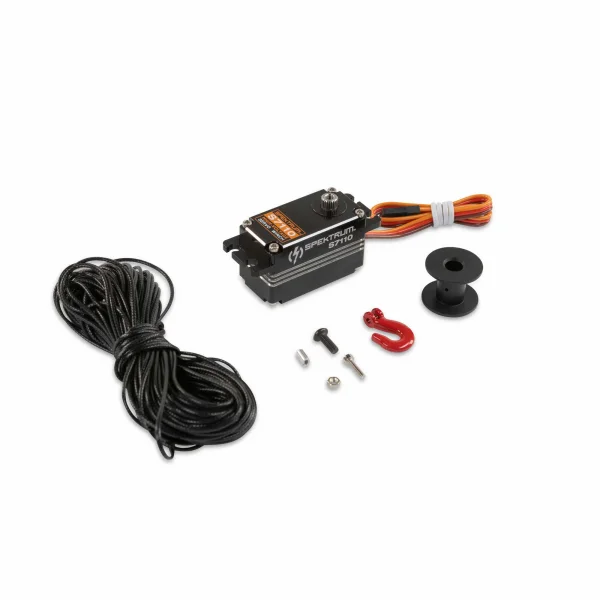

What's in the Box:
- (1) S7110 High Voltage Servo Winch
- (1) Scale recovery hook
- (1) Aluminum spool
- (1) 7’ Fiber line
Key Info:
- Brand: Spektrum
- Part No: SPMSS7110
- Barcode: 0605482167250
- Fitment: Option Part
