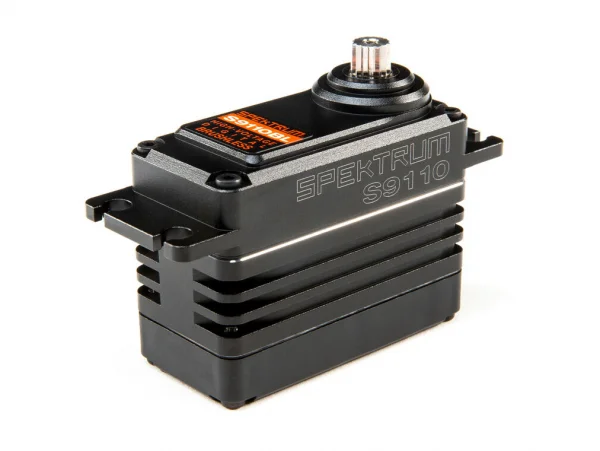

S9110BL 1/5 Speed Metal Servo
Brand: Spektrum
Part No: SPMSS9110BL
Shadow Stock: Usually ships next day
The Spektrum S9110BL 1/5 Speed Metal Servo is engineered for the demands of large-scale RC, pairing brushless motor precision with serious holding power. Built around a reinforced case with improved gear pin support and an aluminium top plate featuring a re-designed bearing house, it offers the durability needed for racing and heavy bashing. At 8.4V, the S9110BL delivers up to 1224 oz-in of torque with a swift 0.14 sec/60° transit, providing confident steering response in giant-scale applications. A sleek stealth black finish and thicker 18 AWG detachable lead underline its race-ready design.
Key Features
- Brushless motor for precise control and consistent speed
- High output: up to 1224 oz-in of torque at 8.4V
- HV operation: 6.0–8.4V
- All-metal gear train with bearing support
- Reinforced case and aluminium top plate for improved durability
- Thicker 18 AWG detachable connector lead
- Stealth black design
- Giant scale, surface application
Specifications
- Part Number: SPMSS9110BL
- Servo Size Category: Giant Scale
- Type/Application: Surface
- Speed: 0.14 sec/60° at 8.4V
- Maximum Torque: 867 oz-in @ 6.0V; 981.75 oz-in @ 7.4V; 1224.3 oz-in @ 8.4V
- Operating Voltage: 6.0–8.4V (HV)
- Gear Type: Metal
- Bushing or Bearing: Bearing
- Wire Length: 6 in (152mm)

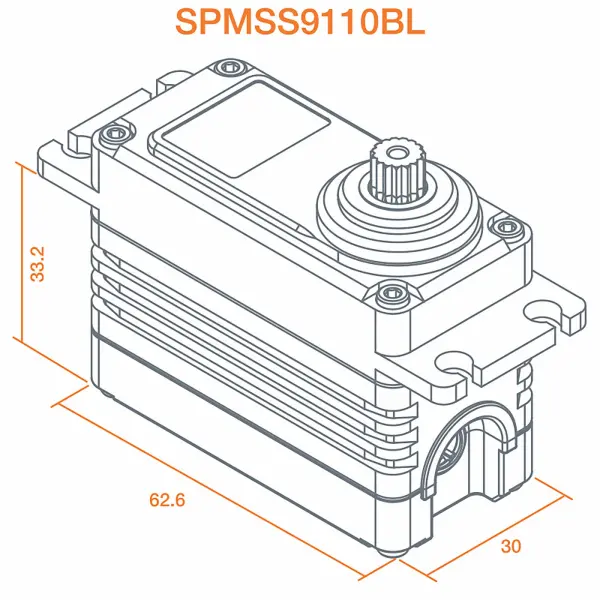

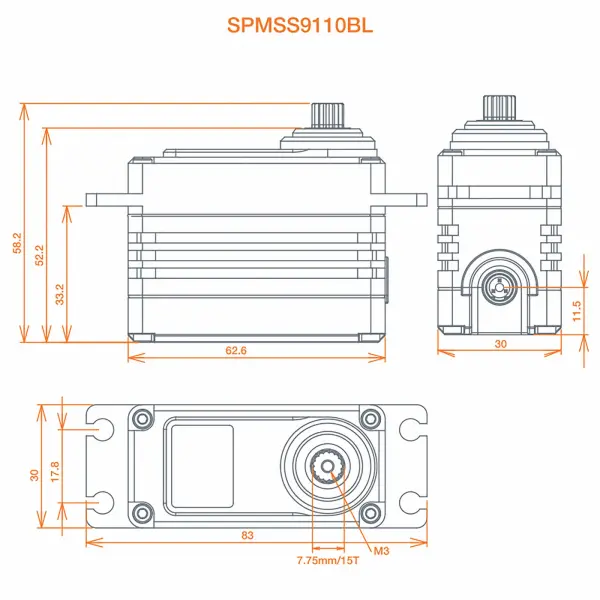

- Dimensions (L x W x H): 2.47 in (62.7mm) x 1.18 in (30mm) x 1.84 in
- Weight: 6.3 oz (178.6g)
Suggested Compatibility
- Losi 1/5 DBXL 2.0 4X4 Gas Buggy RTR (LOS05008)
- Losi 1/5 DBXL-E 2.0 4WD Desert Buggy RTR with Smart (LOS05020, LOS05020V2)
- Losi 1/5 Desert Buggy XL-E 4WD Electric RTR with AVC (LOS05012)
- Losi 1/5 K&N DBXL 4WD Buggy Gas RTR (LOS05010)
- Losi 1/5 Monster Truck XL 4WD RTR with AVC (LOS05009)
- Losi 1/6 Super Baja Rey 2.0 4X4 Desert Truck Brushless RTR (LOS05021)
- ARRMA 1/5 KRATON 4X4 8S BLX RTR (ARA110002) and KRATON EXB Roller (ARA5208)
- ARRMA 1/5 OUTCAST 8S BLX RTR (ARA5810) and OUTCAST EXB Roller (ARA5210)
- Axial 1/6 SCX6 Jeep JLU Wrangler RTR (AXI05000) and SCX6 Trail Honcho RTR (AXI05001)
Whether you need rapid steering for on-track precision or extra authority in rough terrain, the S9110BL brings proven 1/5-scale performance and control.
Secured by Stripe
Operating in the rough and tumble environment of 1/5 scale, a servo's performance is pushed to the maximum. The S9110BL and S9120BL servos have been designed to give 1/5 enthusiasts huge torque and brushless motor precision, taking their driving experiences to a new level.
Starting with a new case design with improved support for pins holding the gears, and a new aluminum top plate with re-designed bearing house, the S9110 and S9120 have been design for improved durability. A new brushless motor design will give more power than any previous Spektrum servos - the high torque S9120 is rated at 1454 oz-in of torque at 8.4v, while the high speed S9110 is rated at 1224 oz-in of torque. The S9110 keeps a similar speed of 0.14 sec/600 at 8.4, while having almost 60% more torque than the previous version! Additional improvements include a sleek new stealth black design and new thicker 18awg wire detachable connector. What's more, both are already race proven, the S9110BL and S9120 having won the 2020 1/5 Worlds Buggy Class at So Cal Nitro.
No matter if you choose the higher speed S9110BL or the higher torque S9120BL, these servos will give higher performance and additional control whether racing your 1/5 vehicle on the track or bashing through dunes.
Key Info:
- Brand: Spektrum
- Part No: SPMSS9110BL
- Barcode: 605482690857
- Fitment: Option Part
Additional Categories:
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes, this will work and would be a direct fit.
