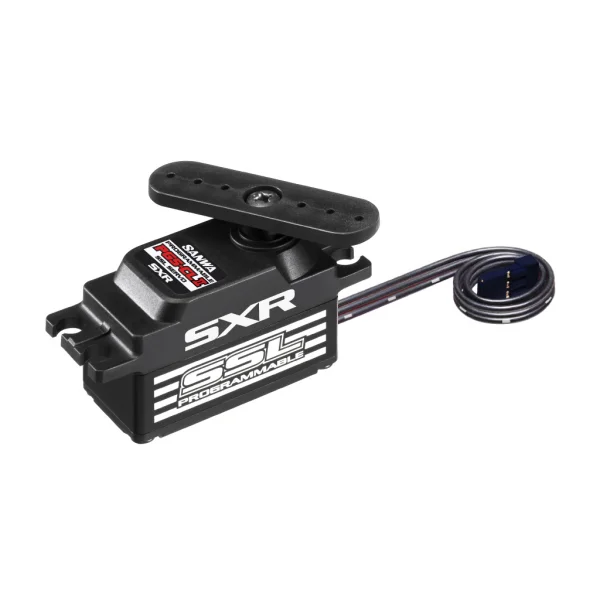

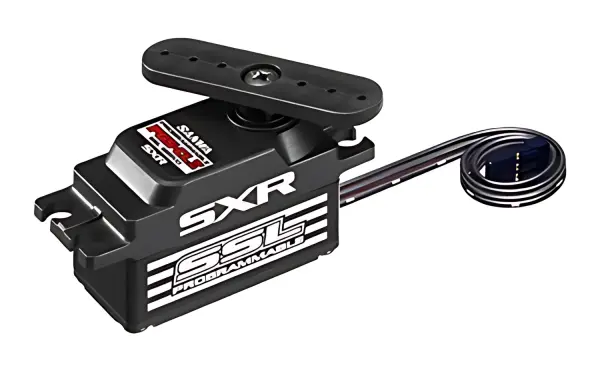

Sanwa PGS-CL2 Brushless Servo, Full Alloy Case

The Sanwa PGS-CL2 is a high-torque, brushless programmable servo designed for fast, precise response and reliable performance. With a full aluminium case, AL heat sink and strengthening metal gears, it delivers durability alongside smooth, consistent control. Telemetry-ready via SSL and built to work within Sanwa’s high-speed response ecosystem, the PGS-CL2 suits demanding RC applications. Part SCH-SA107A54516A.

Key Features

• Programmable servo with SSL and telemetry support
• FH5U SXR (Sanwa Xtreme Response) support
• PGS Setting Gear-compatible
• Super Response (SSR) and High Response (SHR) modes
• 2S LiPo compatible
• High torque type, brushless motor
• Full aluminium case with AL heat sink
• Full metal (strengthening) gears
• Black harness

Programming And Telemetry

• Wireless setting adjustment from the radio via SSL
• Setting adjustment via PGS Setting Gear (initial setting on Setting Gear is necessary)
• Telemetry of servo temperature, current, voltage and position to the radio
• Setting items include: SSL-CH (SSL Channel Setting), STRETC (Stretcher Adjustment), BOOST, D-Band (Dead Band), MV-MID (Middle Torque), MV-END (Later Torque), BREAK (Break Adjustment), MV-HOLD (Power, whole area), MV-FRQ (Feeling, whole area), MAX-PW (MAX Duty)
• Note: PGS Setting Gear required for certain settings

Performance Specifications

• Speed: 0.08 sec/60° (7.4V); 0.11 sec/60° (6.0V)
• Torque: 16.6 kg·cm (7.4V); 14.7 kg·cm (6.0V)

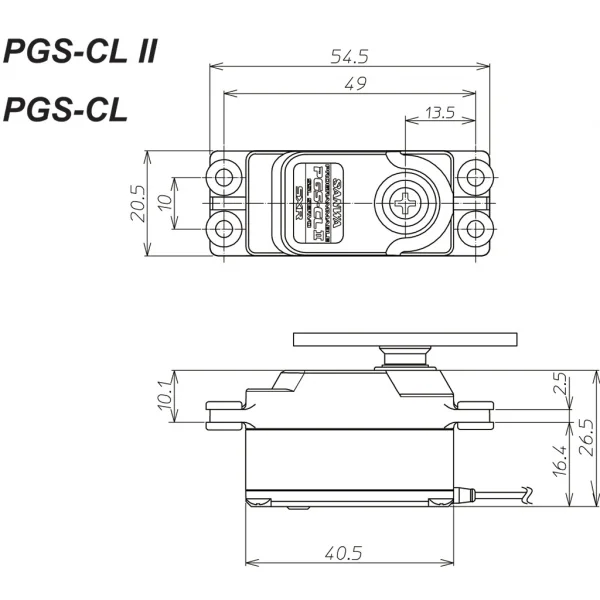

• Dimensions: 40.5 x 20.5 x 26.5 mm
• Weight: 49.6 g

Suggested Compatibility

• Radios using CODE 10 such as Sanwa M12S, EXZES ZZ, MT-44
• Not suggested for CODE 5 systems such as M12, EXZES Z, MT-4S, MT-4, MT-S
• Modes and protocols: FH5U, SXR, SSL, SSR, SHR
