Sanwa PGS-CLX Low Profile Servo SCH-SA107A54743A

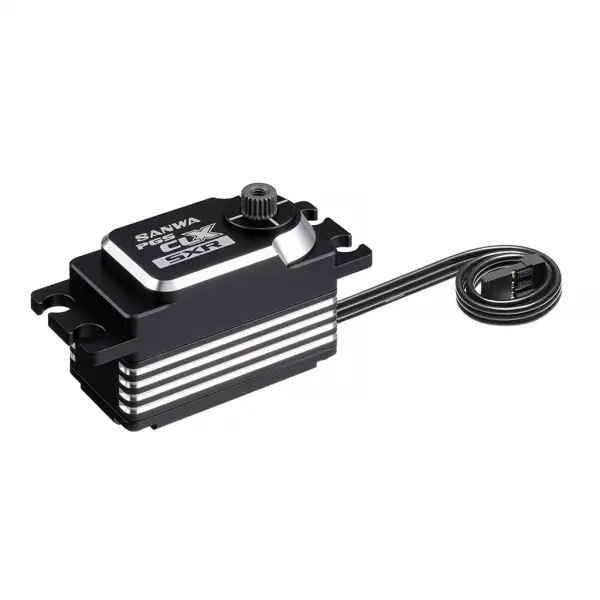

The Sanwa PGS-CLX Low Profile Servo, part number SCH-SA107A54743A, is a low-profile servo with a coreless motor. It features a full aluminium case and full metal gears, combining the specified construction with a compact servo format.

The PGS-CLX is described as compatible with Sanwa SXR response mode, SSL and the MULTI SETTING GEAR. Suggested compatibility with these Sanwa systems provides the available electronic configuration options for this servo. Its operating voltage range is 4.8 to 7.4V, with separate speed and torque figures provided for 6.0V and 7.4V operation.

Features

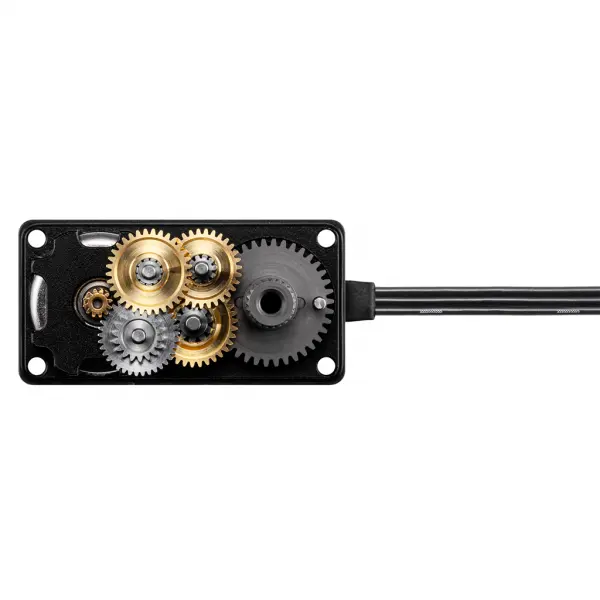

The coreless motor is housed within the aluminium case, while the metal gear arrangement forms the servo's internal drive system. The low-profile design and stated dimensions identify this as a servo intended where a lower body format is required. The supplied electrical figures show how its speed and torque vary according to the operating voltage.

Specifications

• Motor: Coreless
• Case: Full aluminium
• Gears: Full metal
• Operating voltage: 4.8–7.4V
• Speed: 0.08 sec/60° at 7.4V; 0.10 sec/60° at 6.0V
• Torque: 16.6 kg·cm at 7.4V; 14.7 kg·cm at 6.0V
• Size: 40.5 x 20.5 x 26.5mm
• Weight: 56.8g
