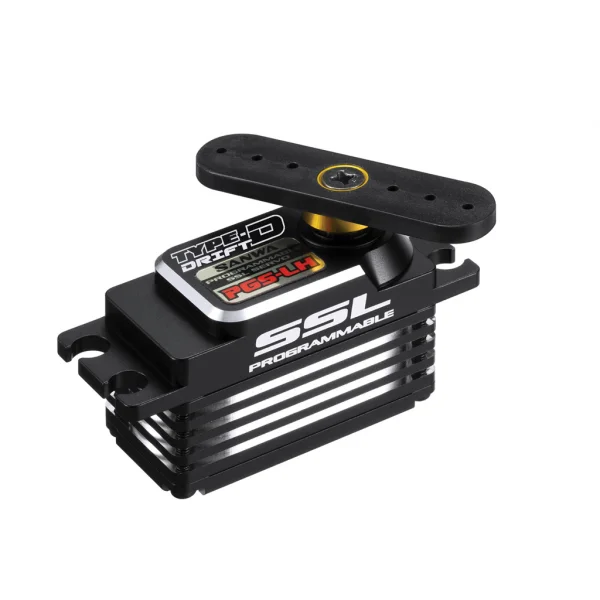

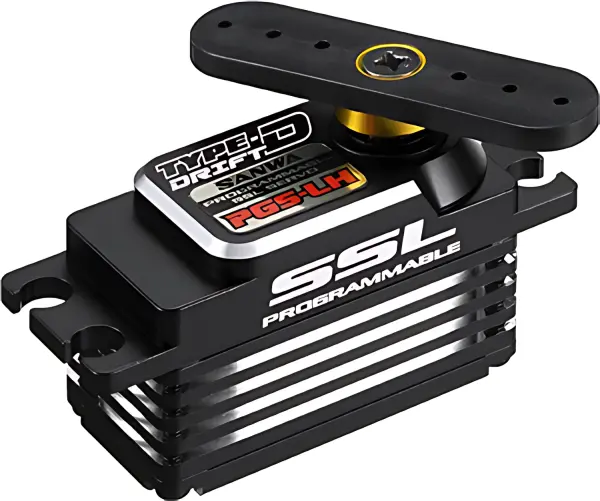

Sanwa PGS-LH Type D Servo

The Sanwa PGS-LH Type D Servo is a low-profile, high-speed brushless servo written with a specialised drift programme. It is an SSL-compatible programmable servo with telemetry support, designed to deliver precise steering feel for RC drift. With a full aluminium case, strengthened full-metal gears and an integrated aluminium heat sink, it combines durability with rapid response. Part number SCH-SA107A54476A.

Key Features

• Specialised Type D (DRIFT) programme with high-speed response
• SSL-compatible programmable servo with telemetry feedback (temperature, current, voltage, position)
• PGS Setting Gear compatible for detailed setup
• Super Response (SSR) and High Response (SHR) mode compatible
• Li‑Po 2‑cell compatible
• Low-profile case with brushless motor
• Full aluminium case and strengthened full-metal gears
• Top case engraved with “TYPE-D (DRIFT)” and aluminium heat sink
• Initial setting via Setting Gear is necessary
• When used with gyros that do not support SSL (e.g. SGS-01C/SGS-01D), transmitter-based SSL adjustments are not available

Programmable Settings

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (Boost Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Brake Adjustment)
• MV-HOLD (Power adjustment across the range)
• MV-FRQ (Feel adjustment across the range)
• MAX-PW (Max Duty Adjustment)

Note: A PGS Setting Gear is required to adjust the above items.

Performance Specifications

• Speed: 0.09 sec/60° (7.4V); 0.11 sec/60° (6.0V)
• Torque: 15.6 kg/cm (7.4V); 12.8 kg/cm (6.0V)

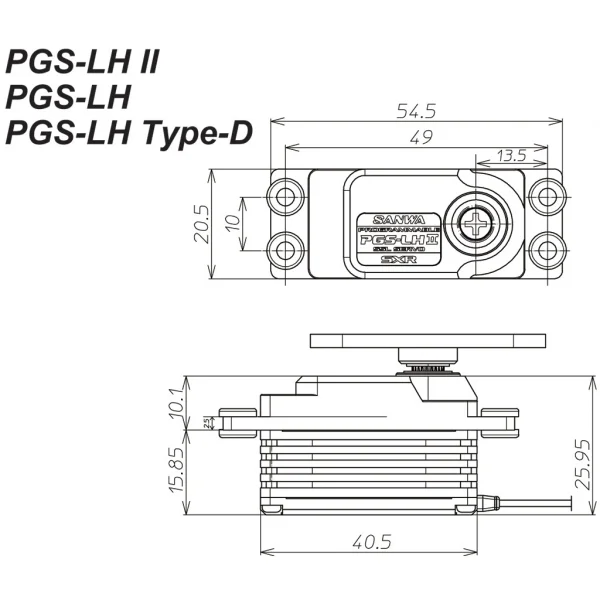

• Dimensions: 40.2 x 20.5 x 26.0 mm
• Weight: 53 g

Suggested Compatibility

• CODE 10 systems such as Sanwa M12S, EXZES ZZ, MT-44
• Not suggested for CODE 5 systems such as M12, EXZES Z, MT-4S, MT-4, MT-S
