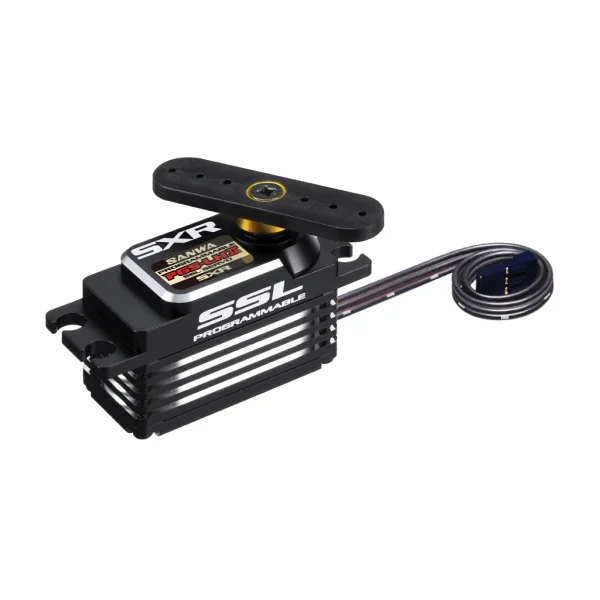

Sanwa PGS-LH2 Low Profile Servo

The Sanwa PGS-LH2 Low Profile Servo (part number SCH-SA107A54479A) is a high-speed, brushless, programmable servo designed for responsive steering performance. It supports Sanwa's SXR (FH5U) technology and SSL for on-radio adjustment and telemetry, all housed in a robust full aluminium case with strengthening metal gears.

Key Features

• FH5U: SXR (Sanwa Xtreme Response) mode-compatible
• SSL-compatible programmable servo
• PGS Setting Gear-compatible
• Super Response (SSR) and High Response (SHR) mode-compatible
• Li-Po 2 cell-compatible
• Low profile, high-speed type
• Brushless motor
• Full aluminium case with AL heat sink
• Full metal gears (strengthening gears)
• Black harness

Telemetry & Programming

Programmable via SSL for wireless setting from compatible radios, or by connecting to a PGS Setting Gear. Telemetry can relay temperature, current, voltage and volume position from inside the servo to the radio. Initial setting with a Setting Gear is necessary for configuration.

Available Setting Items

• SSL-CH (SSL channel setting)
• STRETC (stretcher adjustment)
• BOOST (boost adjustment)
• D-Band (dead band adjustment)
• MV-MID (middle torque adjustment)
• MV-END (later torque adjustment)
• BREAK (brake adjustment)
• MV-HOLD (power adjustment across range)
• MV-FRQ (feel adjustment across range)
• MAX-PW (max duty adjustment)

Performance Specifications

• Speed: 0.09 sec/60° (7.4V), 0.11 sec/60° (6.0V)
• Torque: 15.6 kg-cm (7.4V), 12.8 kg-cm (6.0V)

Dimensions & Weight

• Dimensions: 40.2 x 20.5 x 26.0 mm
• Weight: 53.0 g

Suggested Compatibility

• Suggested compatibility: Sanwa CODE 10 radios (e.g. M12S, EXZES ZZ, MT-44)
• Not suggested for Sanwa CODE 5 radios (e.g. M12, EXZES Z, MT-4S, MT-4, MT-S)
