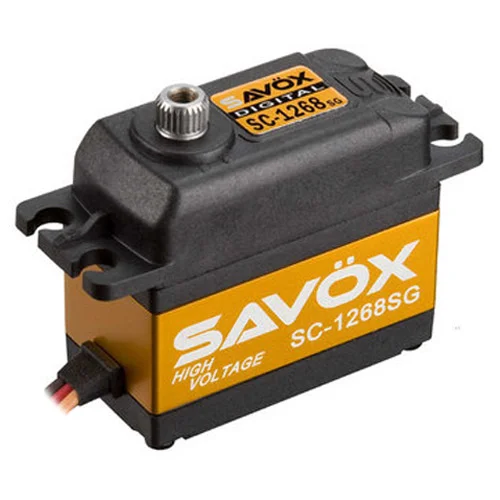

Savox 1268SG - LiPo High Voltage Servo - 26Kg/cm - 0.11 Sec

The Savox 1268SG (part number SAV-SC1268SG) is a high voltage, standard-size digital servo designed to run directly from a LiPo pack without a regulator. Featuring an all-steel gear train and an aluminium heat-sink centre case, it delivers responsive performance with strong holding power and excellent thermal management. At 7.4V it offers a swift 0.11 sec/60° transit speed, making it a solid choice where speed and torque are both required.

Features

• Can be powered directly from a LiPo battery (no regulator required)
• Higher performance from updated motor and controller
• Faster response and greater transit speed
• More torque with improved efficiency
• Improved water protection using four silicon seals
• Strong, precisely made steel gears

Specifications

• Dimensions: 48.0 x 20.0 x 37.2 mm
• Weight: 62 g (weight listed does not include wires or horns)
• Speed (sec/60°): 0.16 @ 4.8V, 0.13 @ 6.0V, 0.11 @ 7.4V
• Torque (kg/cm): 13 @ 4.8V, 15 @ 6.0V, 25 @ 7.4V
• Gear: Steel
• Case: Aluminium heat-sink

Suggested Compatibility

• 1/8th nitro racing applications
• Large scale aircraft

Combining high voltage capability with steel gearing and robust sealing, the Savox 1268SG provides consistent control and durability for demanding RC setups.
