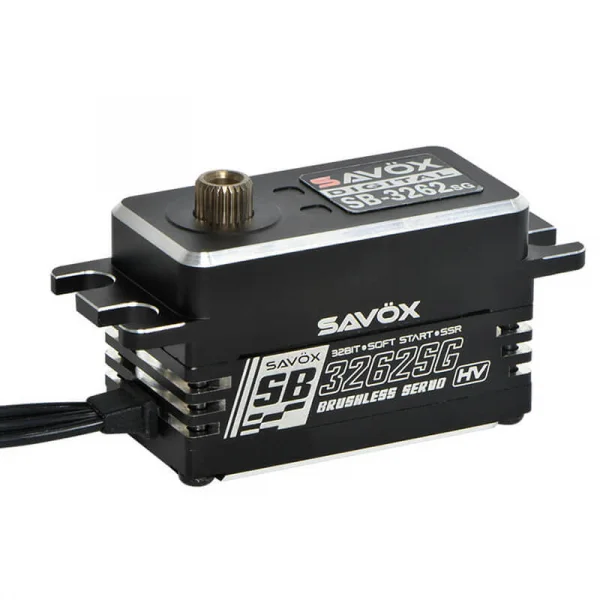

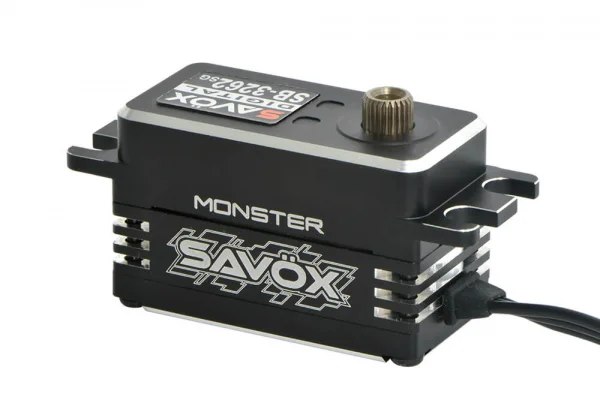

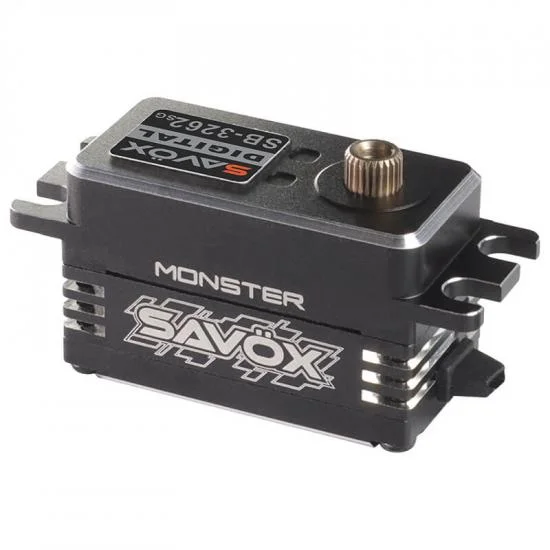

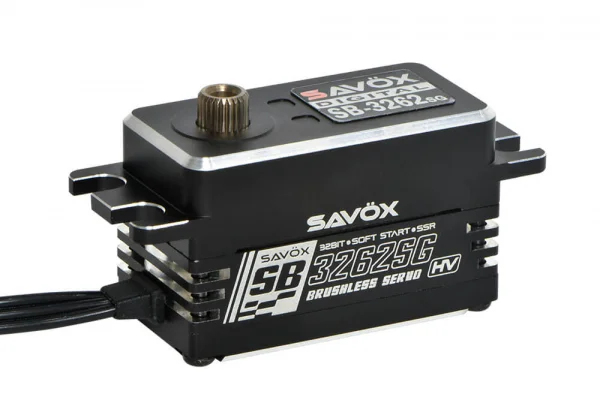

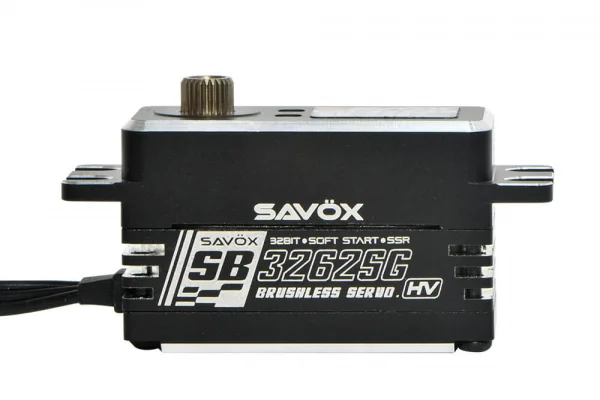

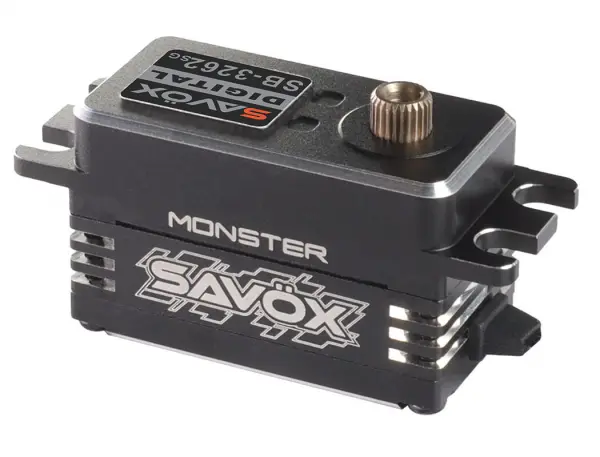

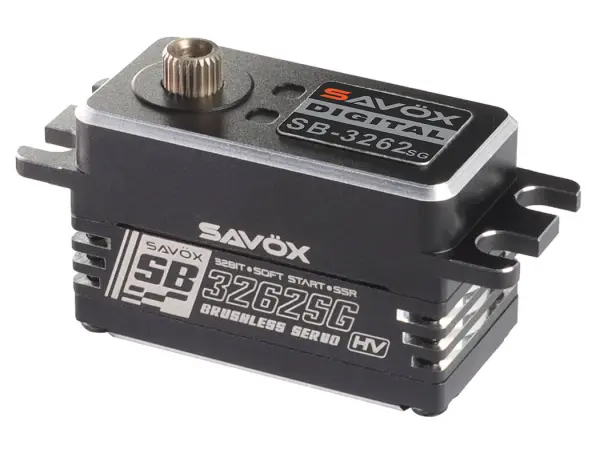

Savox HV Low Profile Brushless CNC Servo - 28kg 0.08s

The Savox HV Low Profile Brushless CNC Servo (SAV-SB3262SG) delivers impressive speed and torque in a compact footprint. With a robust full aluminium case and unique steel gear train, this low profile servo is designed for demanding RC applications where precision, power and durability matter.

Key Specifications

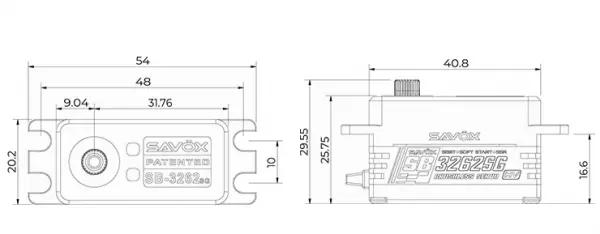

• Dimensions: 40.8 x 20.2 x 25.5 mm
• Weight: 62.0 g
• Speed (@7.4V, sec/60): 0.08
• Torque (@7.4V, kg-cm): 28
• Speed (@8.4V, sec/60): 0.065
• Torque (@8.4V, kg-cm): 35
• Gears: Unique steel
• Bearings: 2BB
• Case: Full aluminium
• Servo horn/output spline: 25 tooth

Design And Build

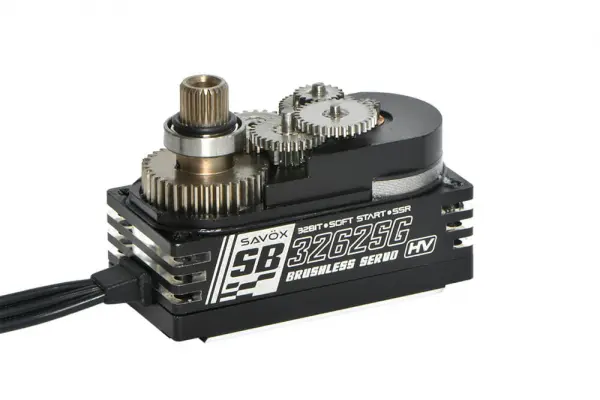

A precision-machined aluminium case enhances rigidity and heat dissipation, while the unique steel gears and dual ball bearings support smooth, consistent operation under load. The low profile form factor helps where space is at a premium, without compromising on performance.

Performance

At 7.4V, the SB3262SG offers a swift 0.08 sec/60 response and 28 kg-cm of torque. Stepping up to 8.4V increases output to 35 kg-cm with 0.065 sec/60 transit time. This blend of speed and holding power suits a wide range of RC tasks where crisp steering response and reliable torque are key.

Savox servos are renowned for their balance of power, precision and durability. The SB3262SG combines high-voltage brushless efficiency with a compact, low profile layout, making it a strong choice for performance-focused builds.
