Savox SA1256TG High Torque Servo - 20kg - 0.15s

Brand: Savox

Part No: SAV-SA1256TG+

€73.07 ~~RRP €81.19~~

In Stock: Usually ships same day

Request Price Match Ask a Question Write a Review

The Savox SA1256TG+ is a high torque coreless digital servo engineered for demanding large-scale aircraft. Delivering 20kg-cm torque at 6.0V with a swift 0.15s transit time, it offers precise, repeatable control for jet, 3D and scale flying. This updated SA-series servo combines a robust full aluminium case, titanium and aluminium gears, and dual ball bearings for reliable performance.

As a Savox Plus model, the SA1256TG+ adds a Smooth Soft Start Mode and suggested compatibility with Sanwa SSR. A 25-tooth spline output and the supplied longer servo horns support secure linkage setups in larger models. Part number: SAV-SA1256TG+.

Key Features

20kg-cm high torque at 6.0V with 0.15s speed
Coreless digital control for accurate response

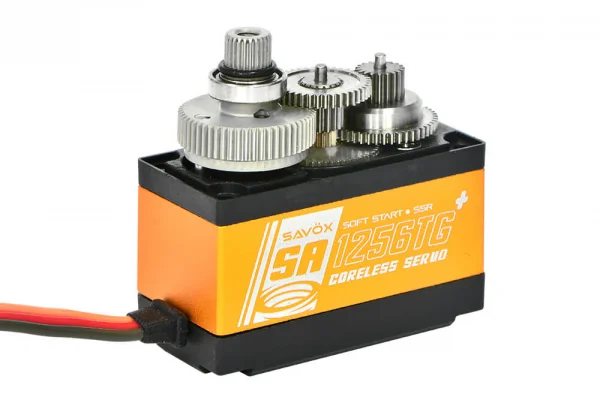

Titanium and aluminium geartrain with low backlash
Full aluminium case and dual ball bearings (2BB)
25T spline output
Soft Start Mode on Savox Plus "+" models
Suggested compatibility with Sanwa SSR

Specifications

Dimensions (mm): 40.3 x 20.2 x 37.2
Weight: 64g
Speed (@6.0V, sec/60): 0.15s
Torque (@6.0V, kg-cm): 20kg
Gears: Titanium & Aluminium
Bearings: 2BB
Case: Full Aluminium
Servo Horn: 25-Tooth Spline

What’s Included

Larger, longer servo horns
Aircraft rubber mounting hardware

Suggested Applications

Large-scale RC aircraft
Jet models
3D aerobatic planes
Scale aircraft

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

SAVOX AIR HIGH TORQUE CORELESS DIGITAL SERVO [email protected]

Trust Savox for your large scale model with the new updated range of high performance servos from Savox, especially designed to handle the stresses of large scale flying whether it be jet, 3D, or scale.

Improved torque ratings and low gear backlash provide the ultimate in precise accurate movement time after time. All SA servos come supplied with larger, longer servo horns and aircraft rubber mounting hardware to make your build as trouble free as possible.

Specifications

Dimensions(mm): 40.3x20.2x37.2
Weight(g): 64
Speed(@6.0V sec/60): .15s
Torque(@6.0V kg-cm): 20kg
Gear: Titanium & Aluminium
Bearing: 2BB
Case: Full Aluminium
Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

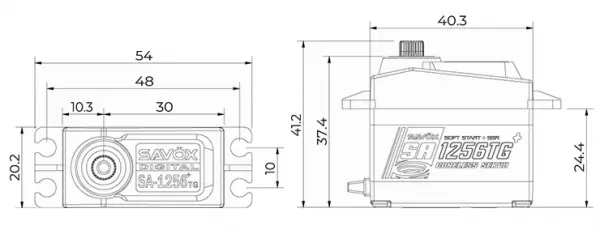

Dimensions

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.

Key Info:

Brand: Savox
Part No: SAV-SA1256TG+
Barcode: 4710006994147
Max Voltage: 6v (NiMh)
Gear Material: Metal

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Spline size please?

Carlos / 25th February 2023

These have 25t spline

Si @ Wheelspin Models

ASK A QUESTION
